Rear Left Window Panel Hinge

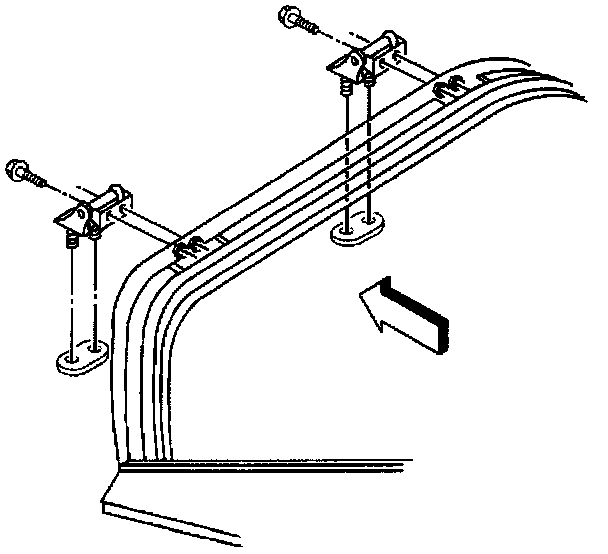

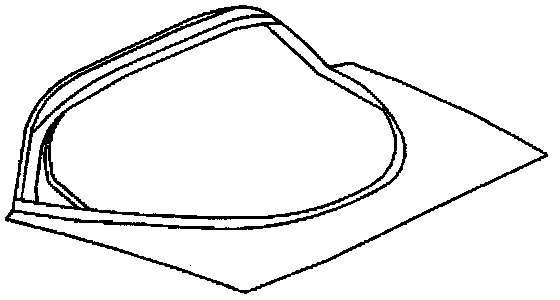

Rear Left Window Panel Hinge: Removal Procedure:

REMOVAL PROCEDURE
1. Remove the rear compartment lift window panel.

Rear Left Window Panel Hinge: Removal Procedure:

2. Remove the bolts attaching the hinge to the lift window panel.

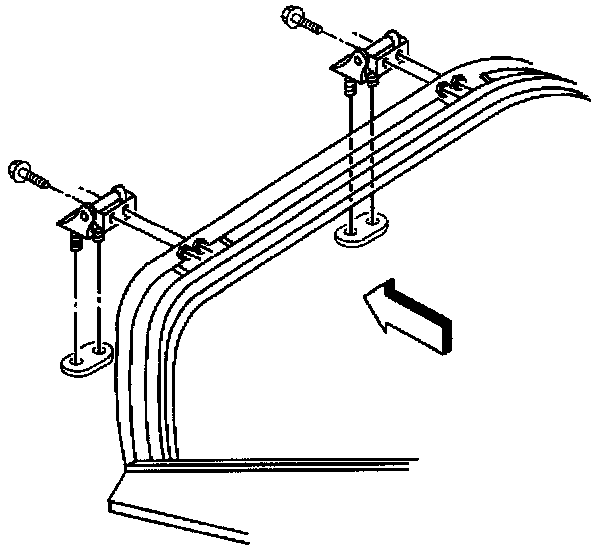

Rear Left Window Panel Hinge: Installation Procedure:

INSTALLATION PROCEDURE
1. Position the hinge to the lift window panel.
2. Install the bolts attaching the hinge to the lift window panel.

Tighten
Tighten the lift window hinge bolts to 25 N.m (18 lb ft).

NOTE: Refer to Fastener Notice in General Information.

Rear Left Window Panel Hinge: Installation Procedure:

3. Install the rear compartment lift window panel.
