Rear Lift Window Panel Latch Striker

Rear Lift Window Panel Latch Striker: Removal Procedure:

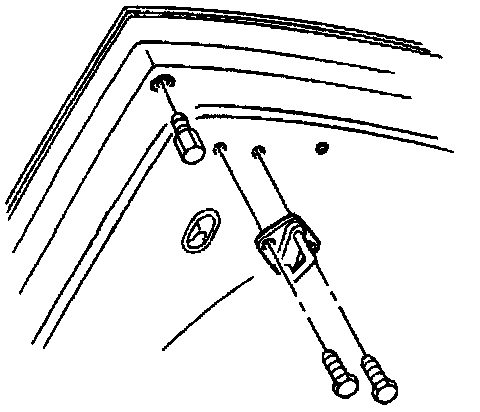

REMOVAL PROCEDURE
1. Open the rear compartment lift window.
2. Mark the location of the striker.
3. Remove the bolts attaching the striker.
4. Remove the striker.

Rear Lift Window Panel Latch Striker: Installation Procedure:

INSTALLATION PROCEDURE
1. Position the striker to the lift window panel with the short end of the striker facing forward.
2. Install the bolts attaching the striker.

Tighten
Tighten the lift window latch striker bolts to 10 N.m (89 lb in).

NOTE: Refer to Fastener Notice in General Information.

3. Close the lift window.
