Rear Lift Window Panel Opening Weatherstrip

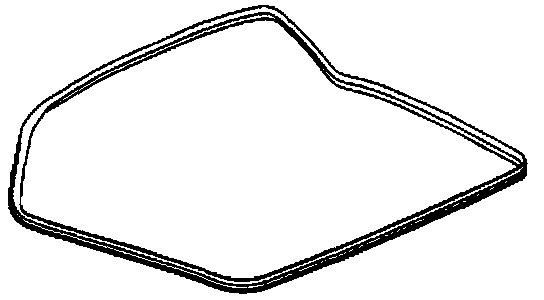

Rear Lift Window Panel Opening Weatherstrip: Removal Procedure:

REMOVAL PROCEDURE
1. Open the rear lift window and suitably support.

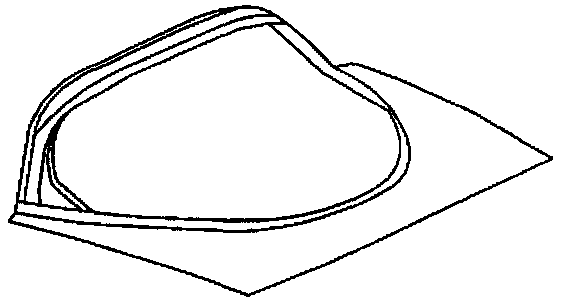

Rear Lift Window Panel Opening Weatherstrip: Removal Procedure:

2. Disconnect the upper electrical connectors from the struts.
3. Remove the struts from the lift window ball studs.

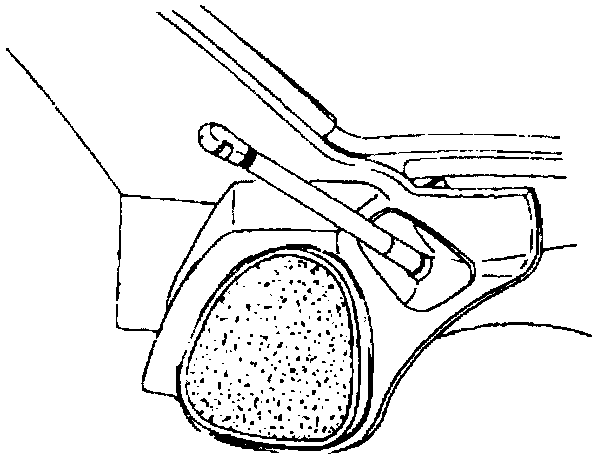

Rear Lift Window Panel Opening Weatherstrip: Removal Procedure:

4. Pull the weatherstrip from the body flange.

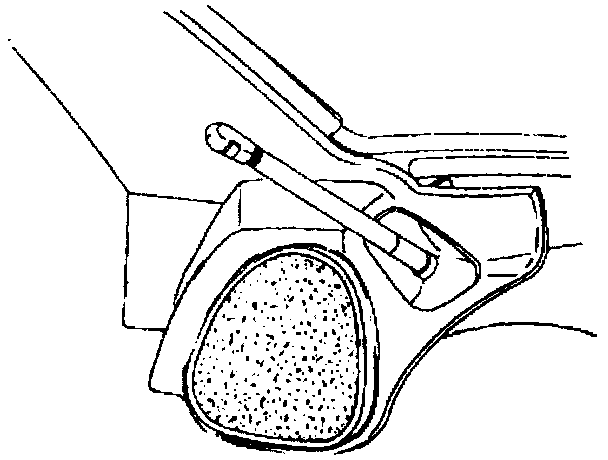

Rear Lift Window Panel Opening Weatherstrip: Installation Procedure:

INSTALLATION PROCEDURE
1. Position the weatherstrip to the body opening.
2. Starting at the molded corners press the weatherstrip firmly onto the body flange.

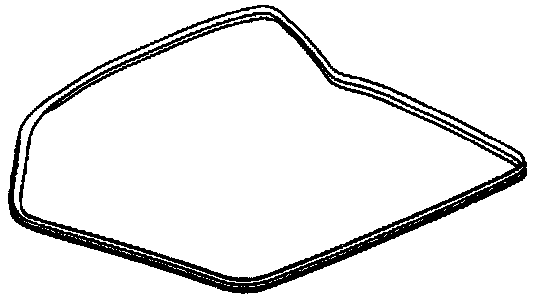

Rear Lift Window Panel Opening Weatherstrip: Installation Procedure:

3. Install the struts to the window ball studs.
4. Connect the defogger electrical connectors to the struts.
5. Remove the support and close the lift window.
