Weatherstrip Side Retainer Replacement (Windshield)

Weatherstrip Side Retainer Replacement (windshield): Removal Procedure:

REMOVAL PROCEDURE
1. Remove the windshield weatherstrip from the weatherstrip side retainer and partially from the windshield frame.

Weatherstrip Side Retainer Replacement (Windshield): Removal Procedure:

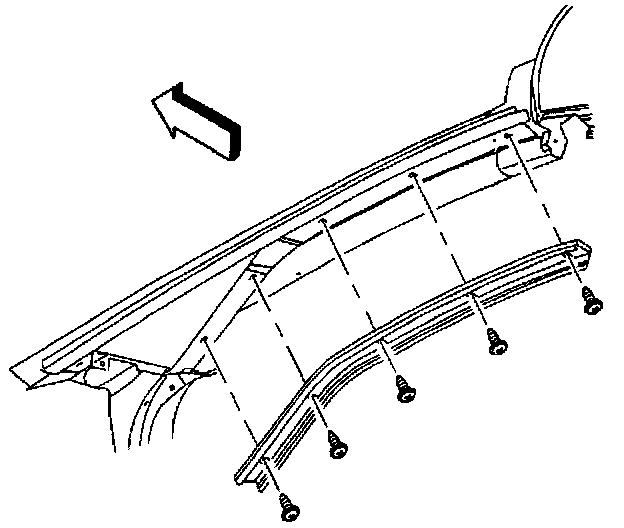

2. Remove the weatherstrip side-retainer screws from the side reveal molding and the applique.
3. Remove the retainer. If the retainer is to be reused, clean away the old foam sealing tape from the retainer mounting surfaces and the retainer.

Weatherstrip Side Retainer Replacement (Windshield): Installation Procedure:

INSTALLATION PROCEDURE
1. Replace the foam tape if reusing the retainer:
^ Extend the tape 2.0 mm (0.08 in) beyond the retainer ends.
^ Do not stretch the tape to fit. The tape may shrink back, or creep, after installation, resulting in a gap which may cause a leak.
2. Replace any stripped, broken or improperly seated screws.

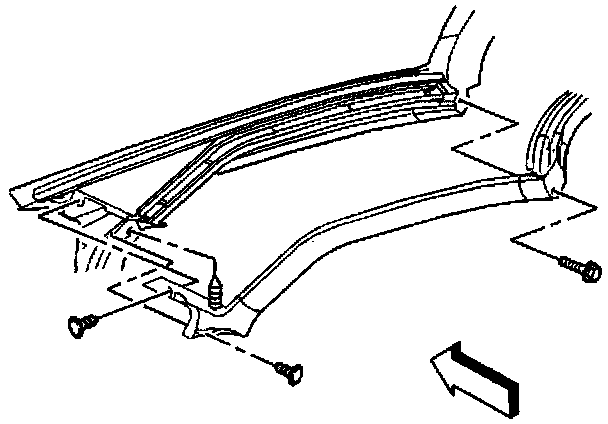

3. Install the windshield weatherstrip side retainer with screws at the following locations:
^ The applique

Tighten
Tighten the side retainer to applique screws to 2.5 N.m (22 lb in).

NOTE: Refer to Fastener Notice in General Information.

^ The window frame

Tighten
Tighten the side retainer to window frame screws to 3.4 N.m (30 lb in).

4. Install the weatherstrip.
