Windshield Side Garnish Molding Replacement

Windshield Side Garnish Molding Replacement: Removal Procedure:

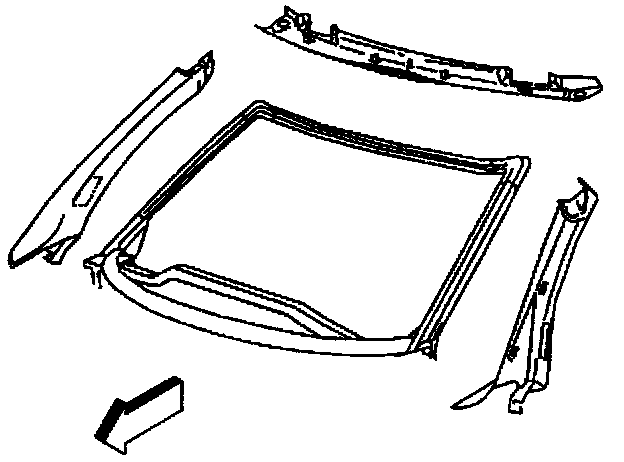

REMOVAL PROCEDURE
1. Grasp the windshield side garnish molding with your hands.
2. Pull the molding with its retainers from the windshield frame.

Windshield Side Garnish Molding Replacement: Installation Procedure:

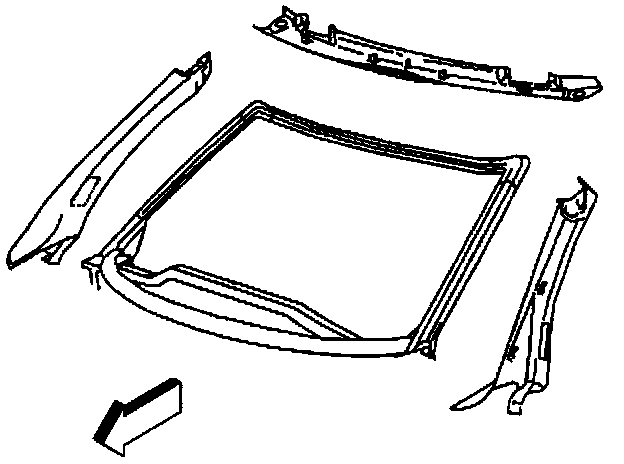

INSTALLATION PROCEDURE
1. Position the window side garnish molding behind the lock pillar molding and retainer.
2. Position the window side garnish molding with its retainers to the holes in the windshield frame.
3. Push on the molding snapping the retainers into the windshield frame.
