Windshield Upper Garnish Molding Replacement

Windshield Upper Garnish Molding Replacement: Removal Procedure:

REMOVAL PROCEDURE

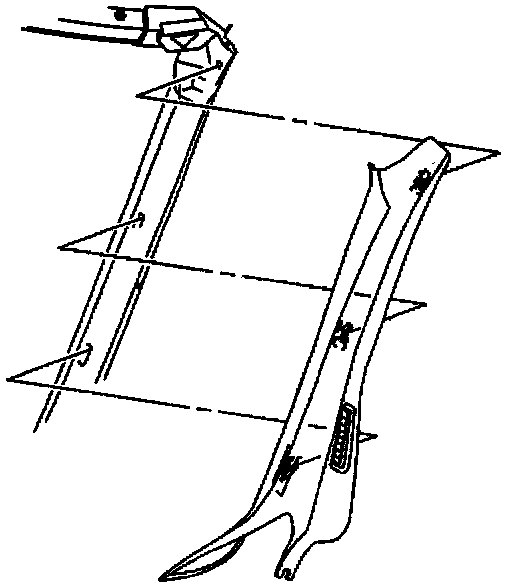

1. Remove the windshield side garnish moldings.

Windshield Upper Garnish Molding Replacement: Removal Procedure:

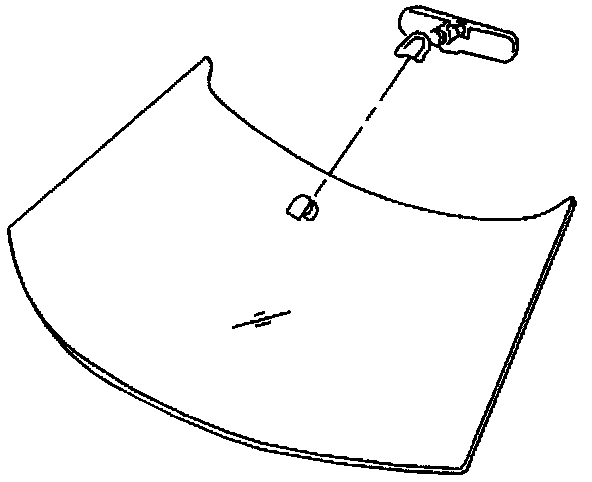

2. Remove the inside rearview mirror. Rearview Mirror Replacement.

Windshield Upper Garnish Molding Replacement: Removal Procedure:

3. Remove the sunshades.

Windshield Upper Garnish Molding Replacement: Removal Procedure:

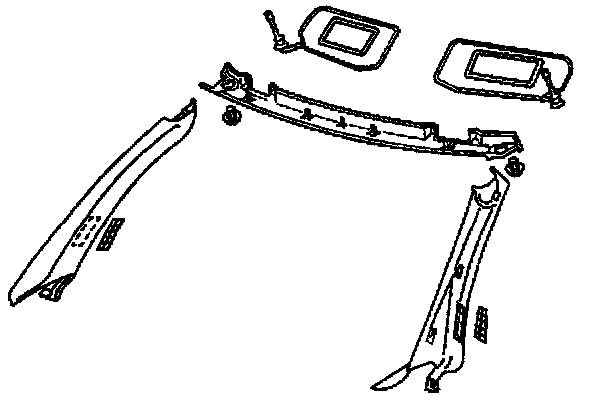

4. Grasp the upper garnish molding and pull the garnish molding with its retainers from the windshield frame.

Windshield Upper Garnish Molding Replacement: Installation Procedure:

INSTALLATION PROCEDURE

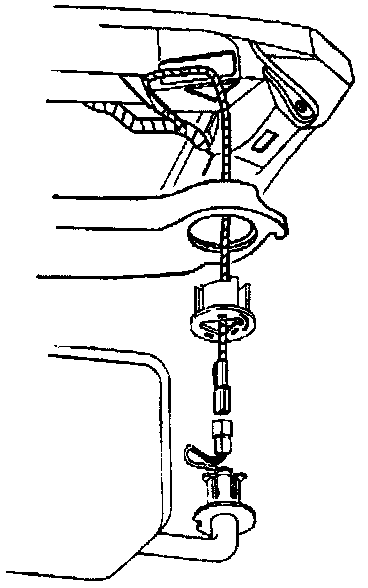

1. Position the sunshade electrical connectors through the openings in the upper garnish molding.

Windshield Upper Garnish Molding Replacement: Installation Procedure:

2. Position the upper garnish molding with its retainers to the holes in the windshield frame.
3. Push on the upper garnish molding snapping the molding retainers into the windshield frame.

Windshield Upper Garnish Molding Replacement: Installation Procedure:

4. Install the sunshades.

Windshield Upper Garnish Molding Replacement: Installation Procedure:

5. Install the inside rearview mirror.

Windshield Upper Garnish Molding Replacement: Installation Procedure:

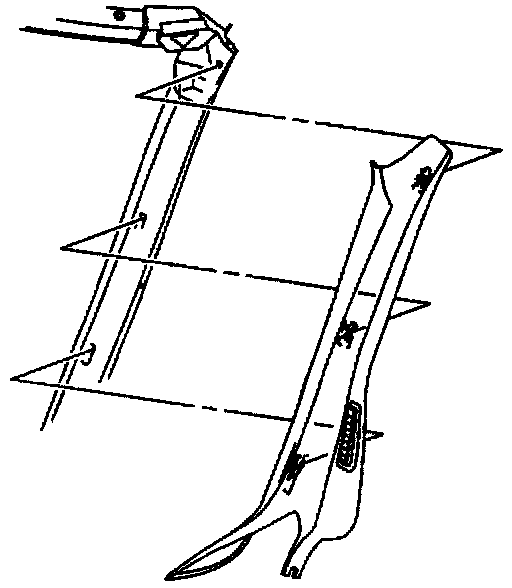

6. Install the windshield side garnish moldings.
