Power Antenna

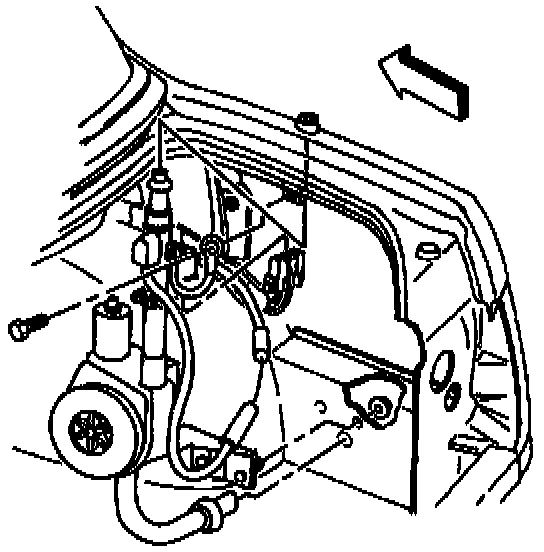

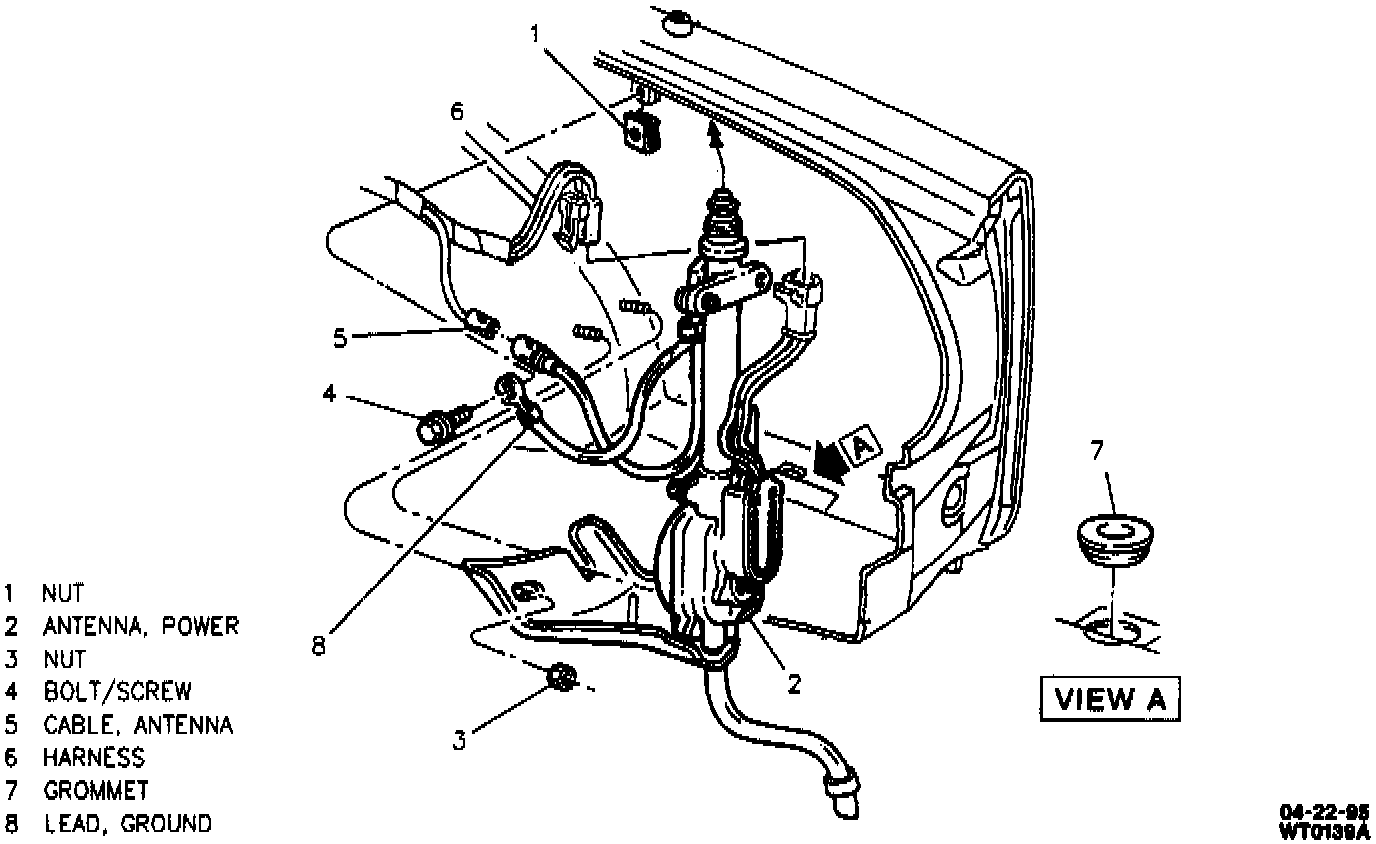

Power Antenna:

REMOVE OR DISCONNECT
1. Open the rear compartment lid.
2. Right side rear compartment trim to gain access.
3. Antenna ground strap to quarter panel bolt/screw.
4. Antenna electrical connector from antenna
5. Antenna lead-in cable from antenna.
6. Antenna to antenna mounting bracket bolt/screw.
7. Antenna

INSTALL OR CONNECT

Refer to Service Precautions.

1. Antenna.
2. Antenna to antenna mounting bracket bolt/screw.
Tighten
^ Bolt/screw to 10 N.m (89 lb. in).
3. Antenna lead-in cable from antenna.
4. Antenna electrical connector from antenna.
5. Antenna ground strap to quarter panel Bolt/screw.
Tighten
^ Bolt/screw to 3 N.m (27 lb. in.).
6. Right side rear compartment trim to gain access.
7. Close the rear compartment lid.
