Radio/Stereo

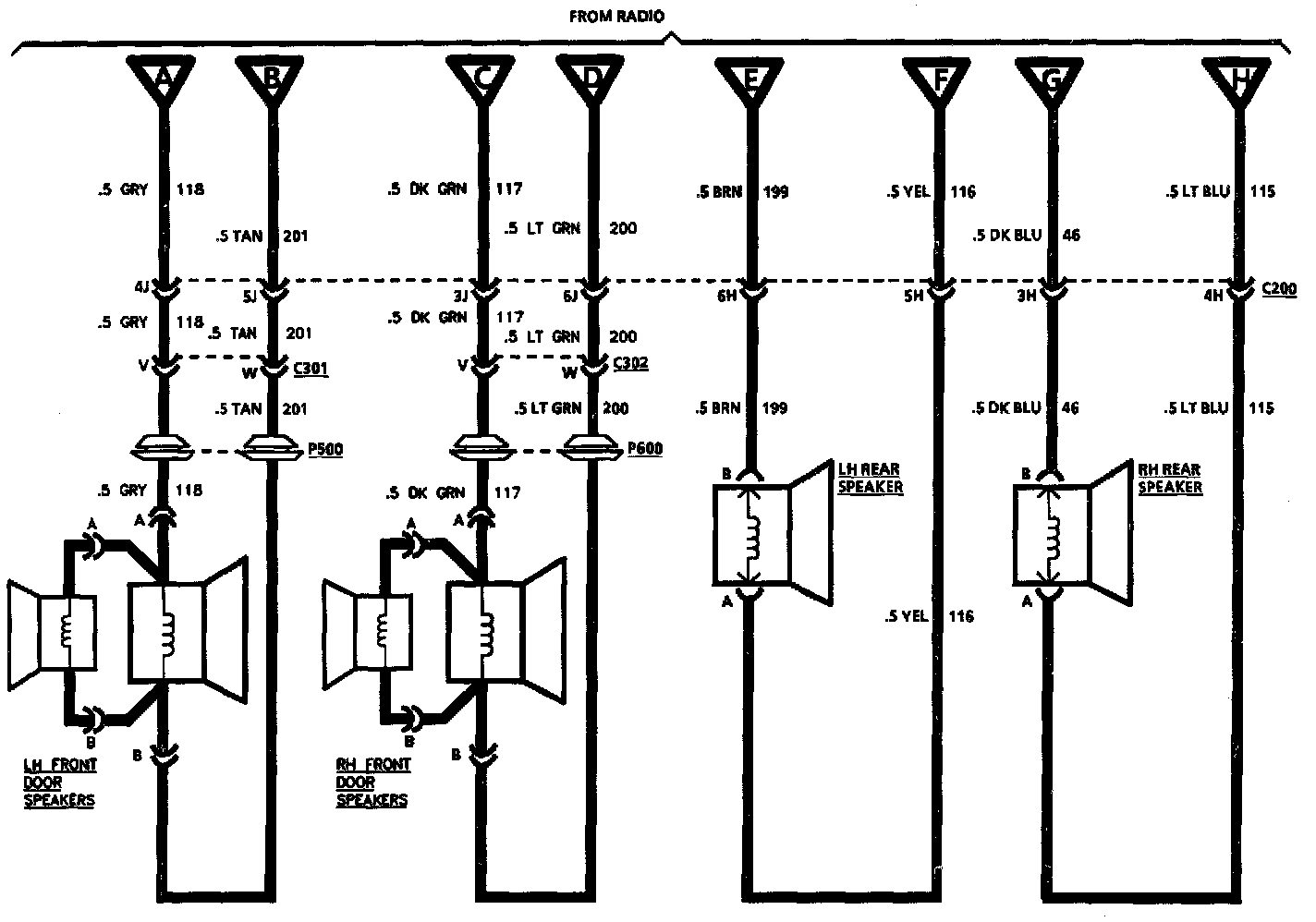

Radio (Part 1 Of 6):

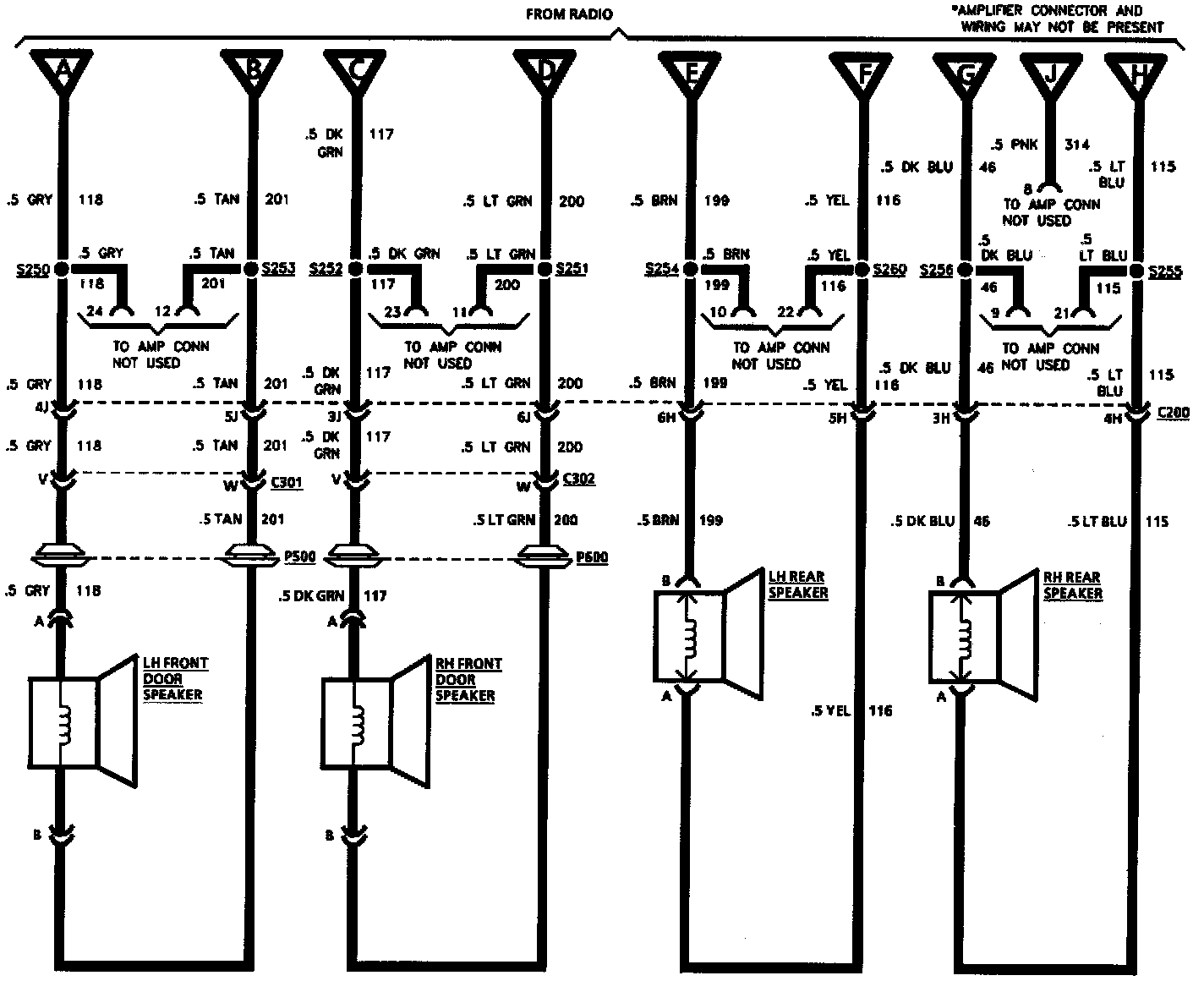

Radio (Part 2 Of 6):




Radio (Part 3 Of 6):




Radio (Part 4 Of 6):




Radio (Part 5 Of 6):




Radio (Part 6 Of 6):
