Radio/Stereo: Service and Repair

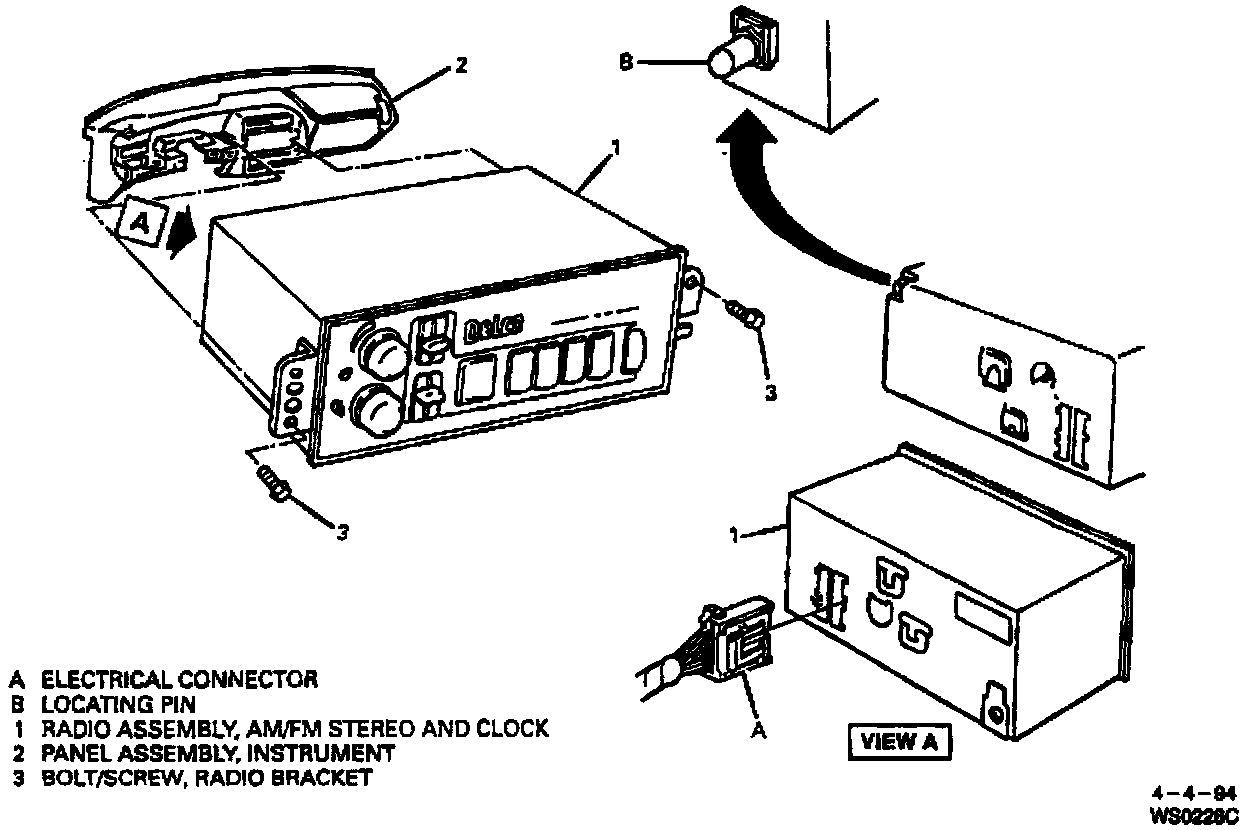

Radio (Typical):

Remove or Disconnect
1. Instrument panel cluster trim plate.
2. Bolts/screws from radio
3. Pull radio from instrument panel.
4. Electrical connector.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Electrical connector.
2. Align radio to instrument panel and push into place.
3. Bolts/screws to radio.

Tighten
^ Bolts/screws to 2 N.m (18 lb. in.).

4. Instrument panel cluster trim plate.
