Home >> Chevrolet >> 1997 >> Lumina V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> Underhood Electrical Center Fuses >> Underhood Electrical Center #1 >> Trans Fuse

Trans Fuse

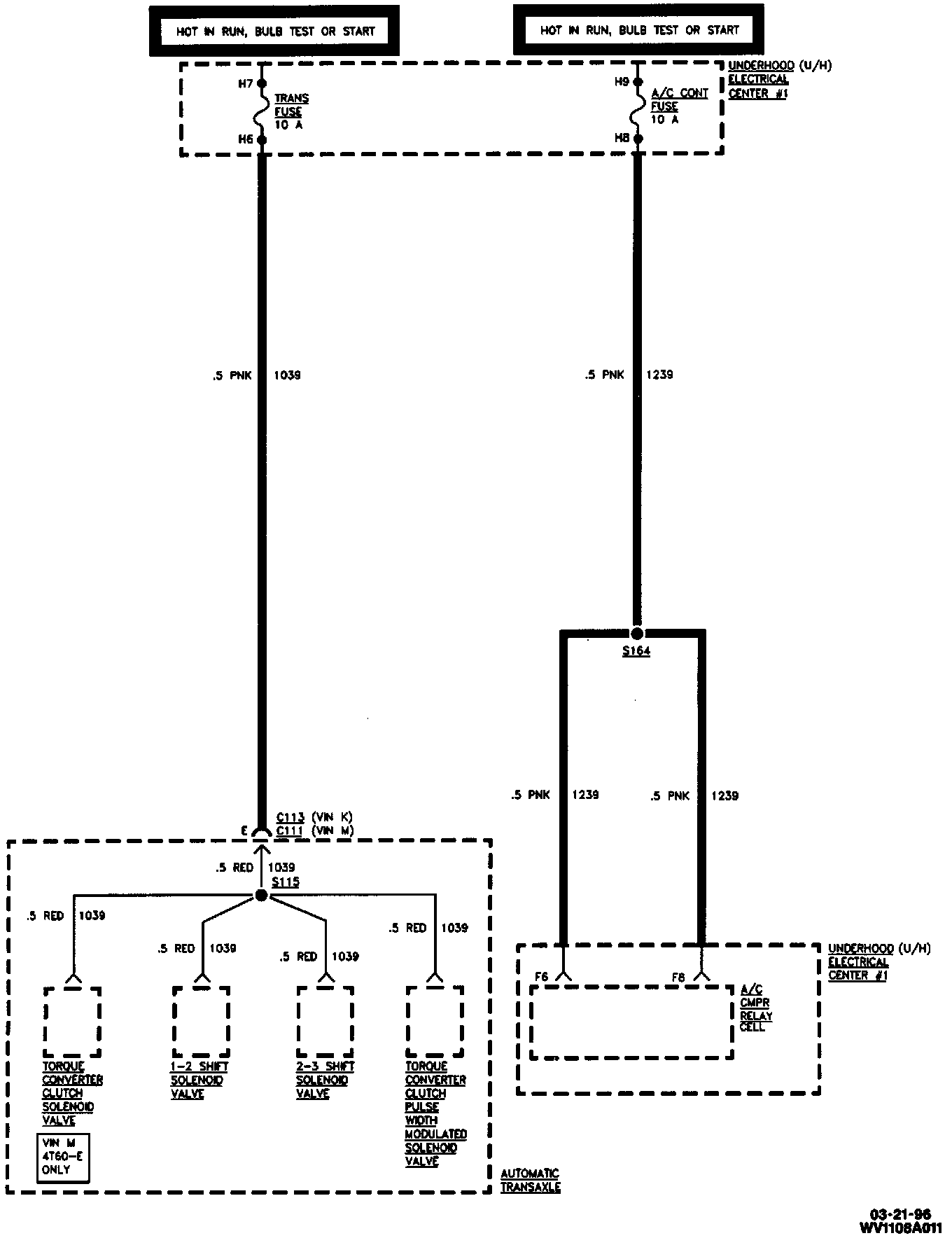

TRANS And A/C CONT Fuses:
