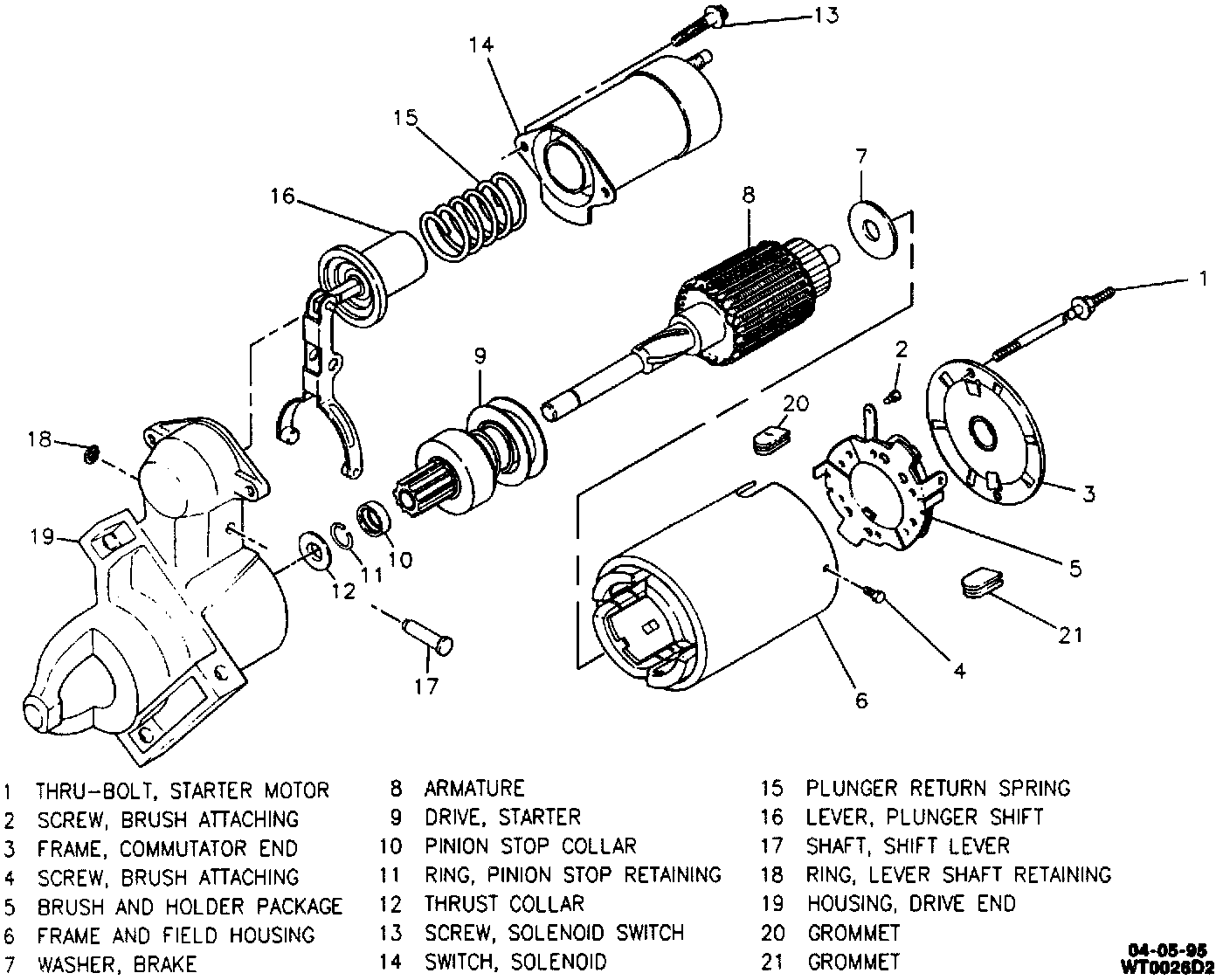

Disassembled View SD205 Starter Motor
Disassembled View SD205 Starter Motor
Disassembled View SD205 Starter Motor:
