Home >> Chevrolet >> 1997 >> Lumina V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Locations >> Engine Wiring 3100 L82

Engine Wiring 3100 L82

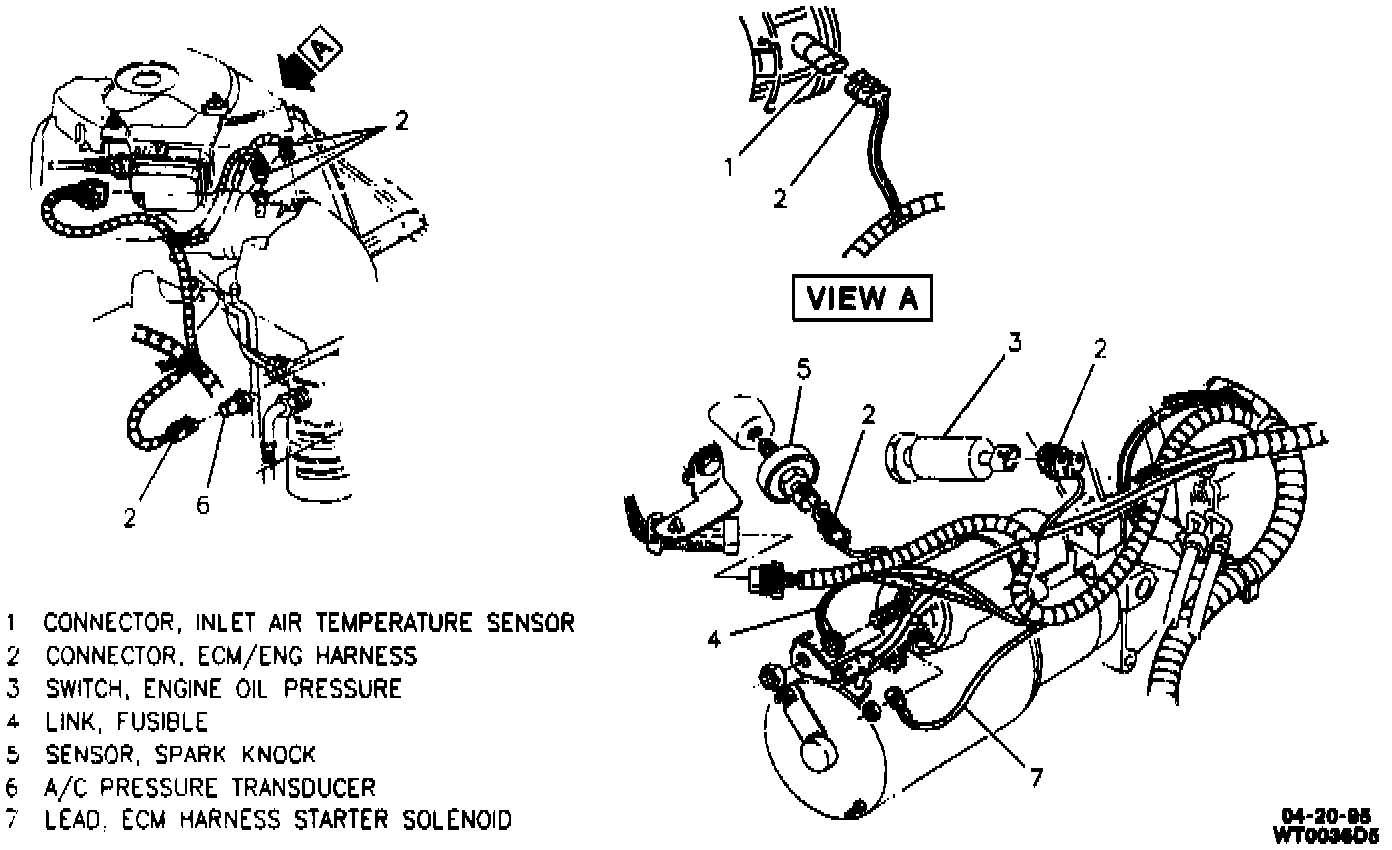

Engine Wiring 3100 L82:

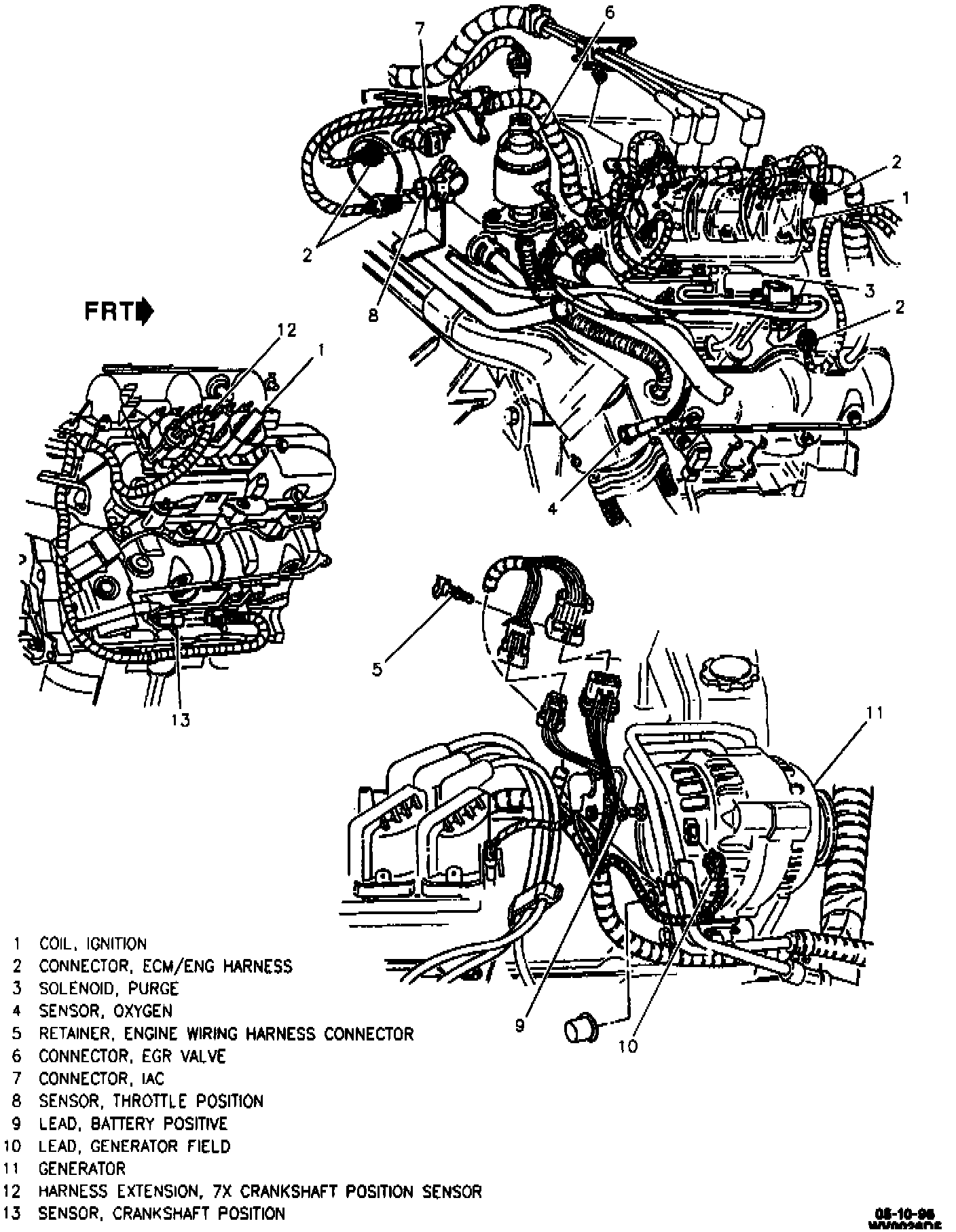

Engine Wiring 3100 L82:

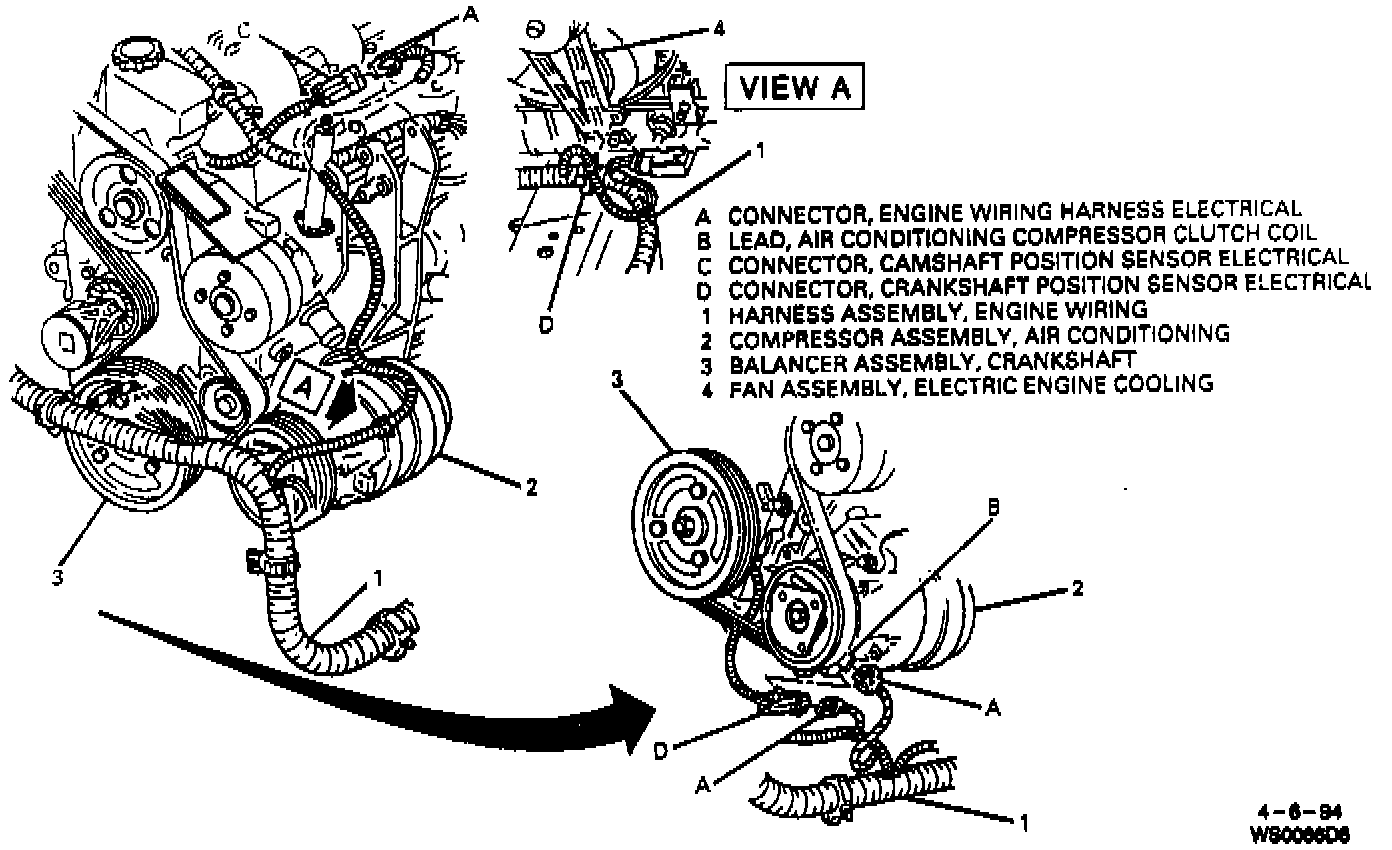

Engine Wiring 3100 L82:

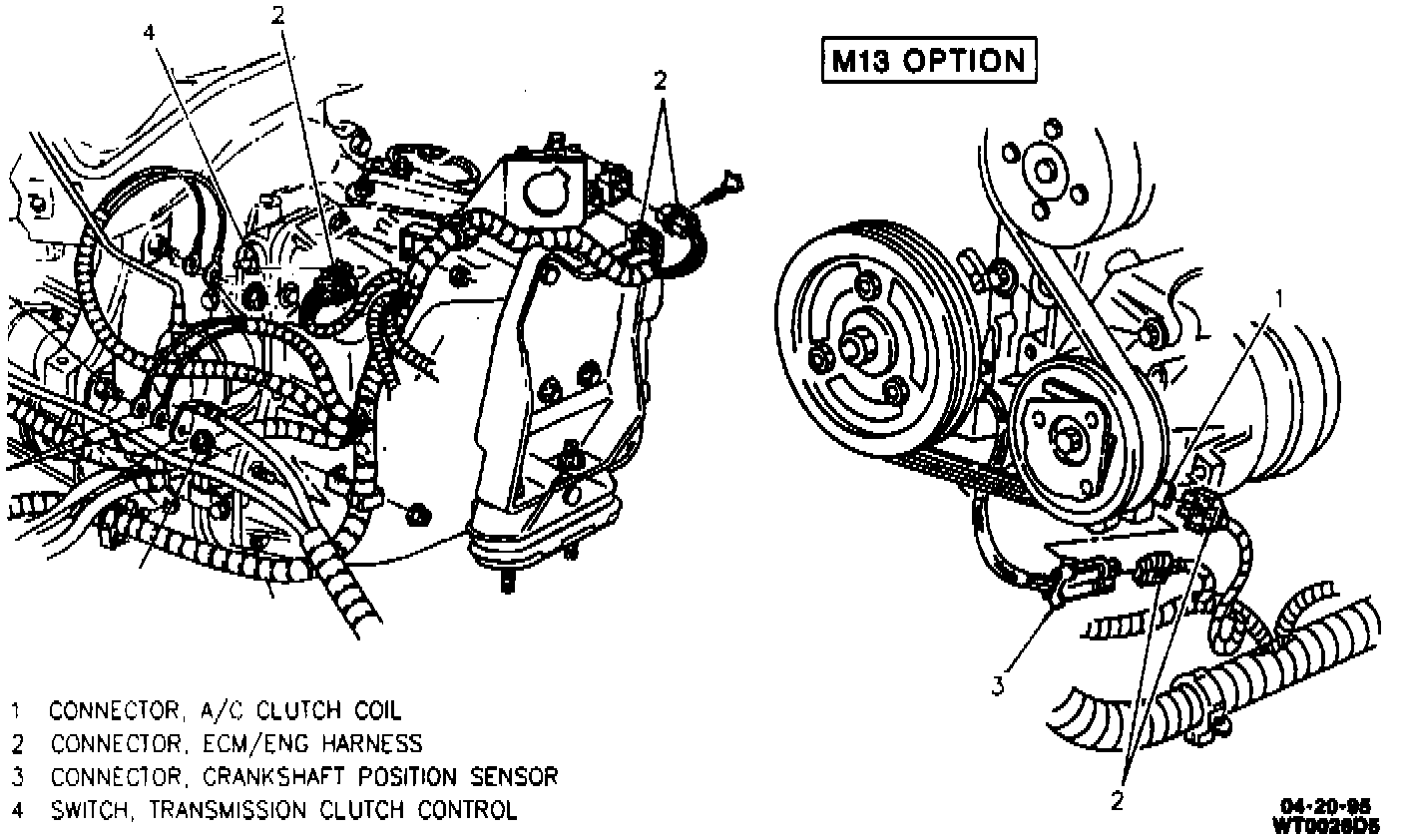

Engine Wiring 3100 L82:




Engine Wiring 3100 L82:
