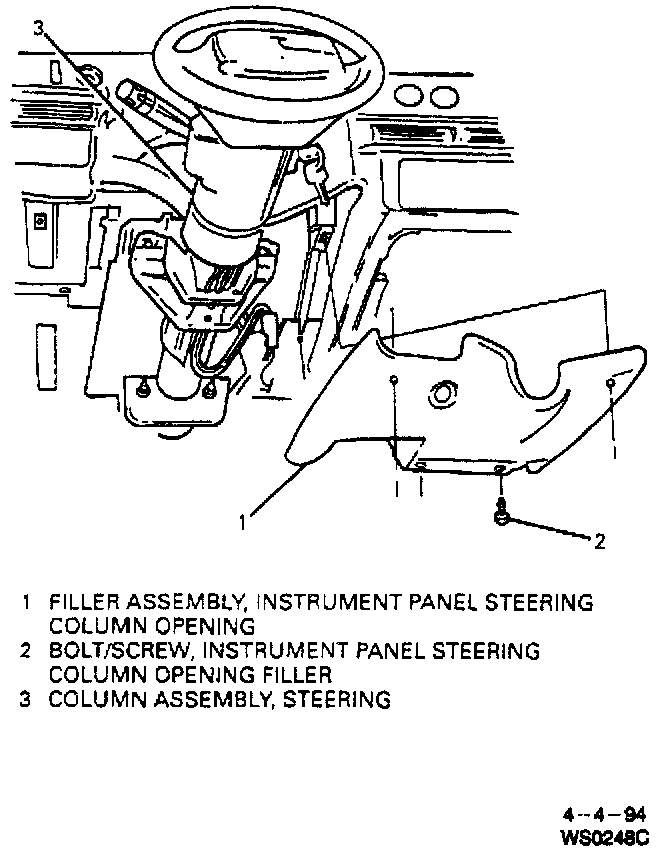

Instrument Panel Steering Column Opening Filler

Instrument Panel Steering Column Opening Filler (Chevrolet):

Remove or Disconnect
1. Bolts/screws from instrument panel steering column opening filler.
2. Instrument panel steering column opening filler by unsnapping from instrument panel.
3. Electrical connector.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Electrical connector.
2. Instrument panel steering column opening filler by snapping into instrument panel.
3. Bolts/screws to instrument panel steering column opening filler.

Tighten
^ Bolts/screws to 2 Nm (18 lb in).
