Knee Bolster Bracket Replacement

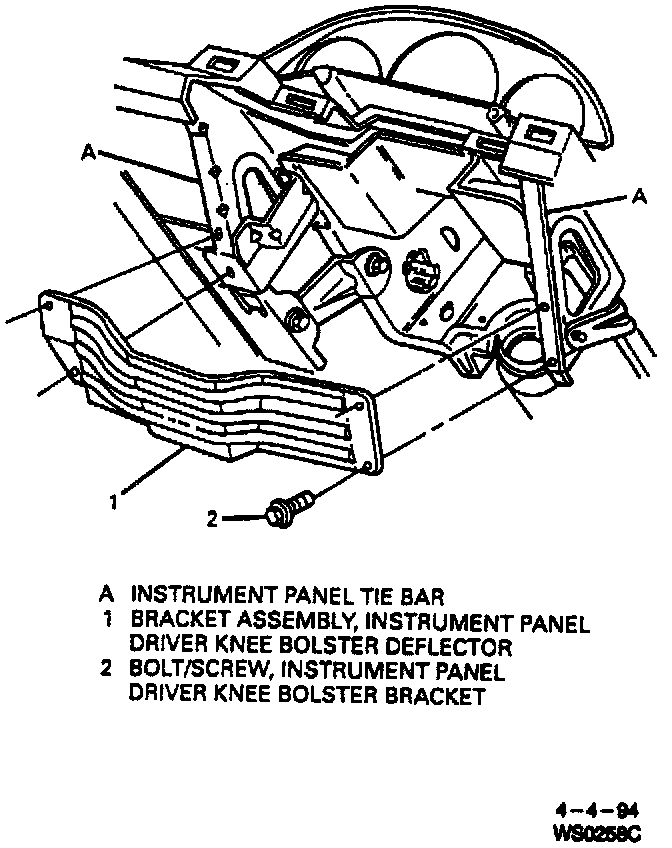

Knee Bolster Bracket (Chevrolet):

Remove or Disconnect
1. Instrument panel steering column opening filler.
2. Bolts/screws from knee bolster bracket.
3. Knee bolster bracket from instrument panel.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Knee bolster bracket to instrument panel.
2. Bolts/screws to knee bolster bracket

Tighten
^ Bolts/screws to 2 Nm (18 lb in).

3. Instrument panel steering column opening filler.
