Interior Lamps Dimming

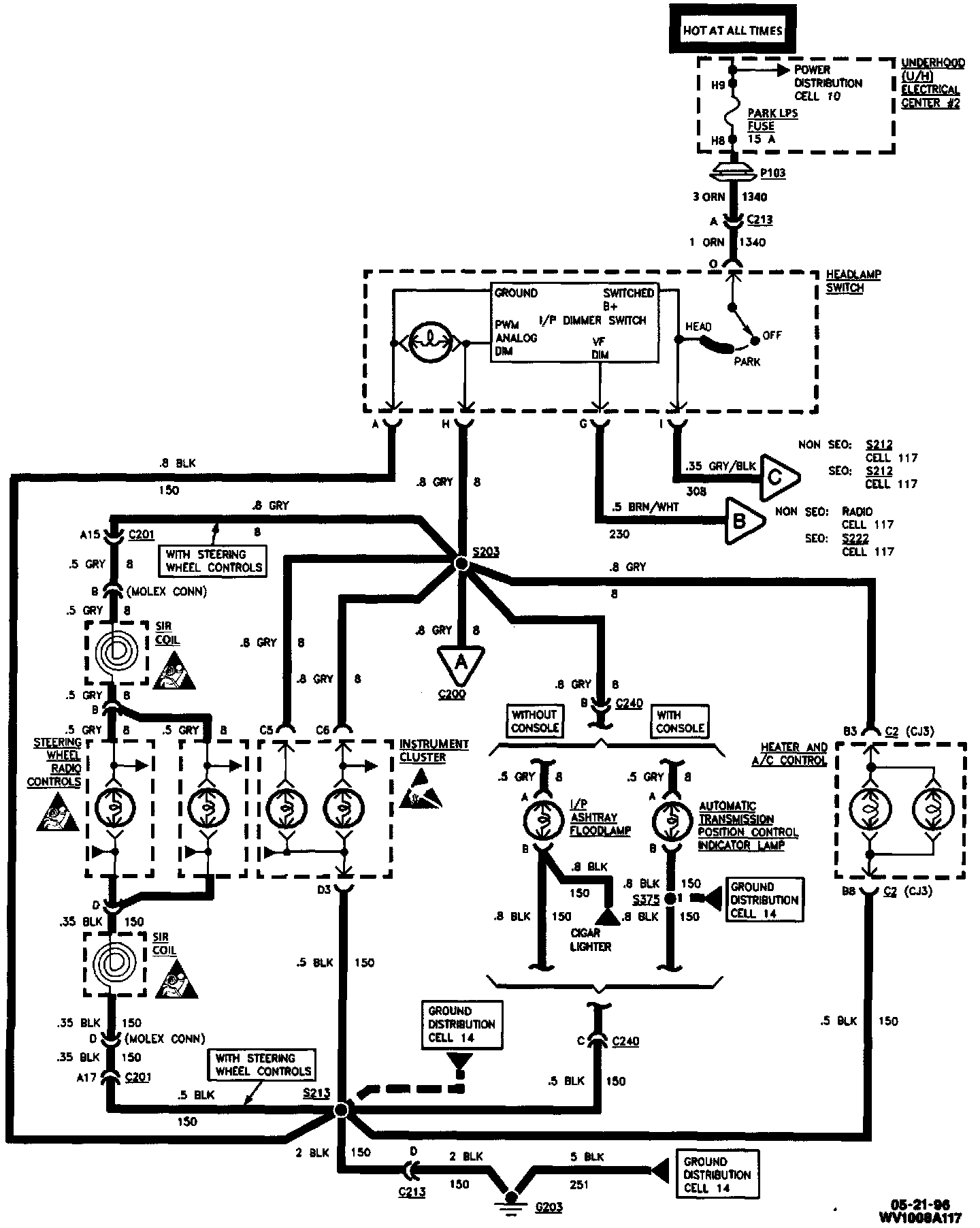

Interior Lights Dimming (Part 1 Of 3):




Interior Lights Dimming (Part 2 Of 3):




Interior Lights Dimming (Part 3 Of 3):





SEO

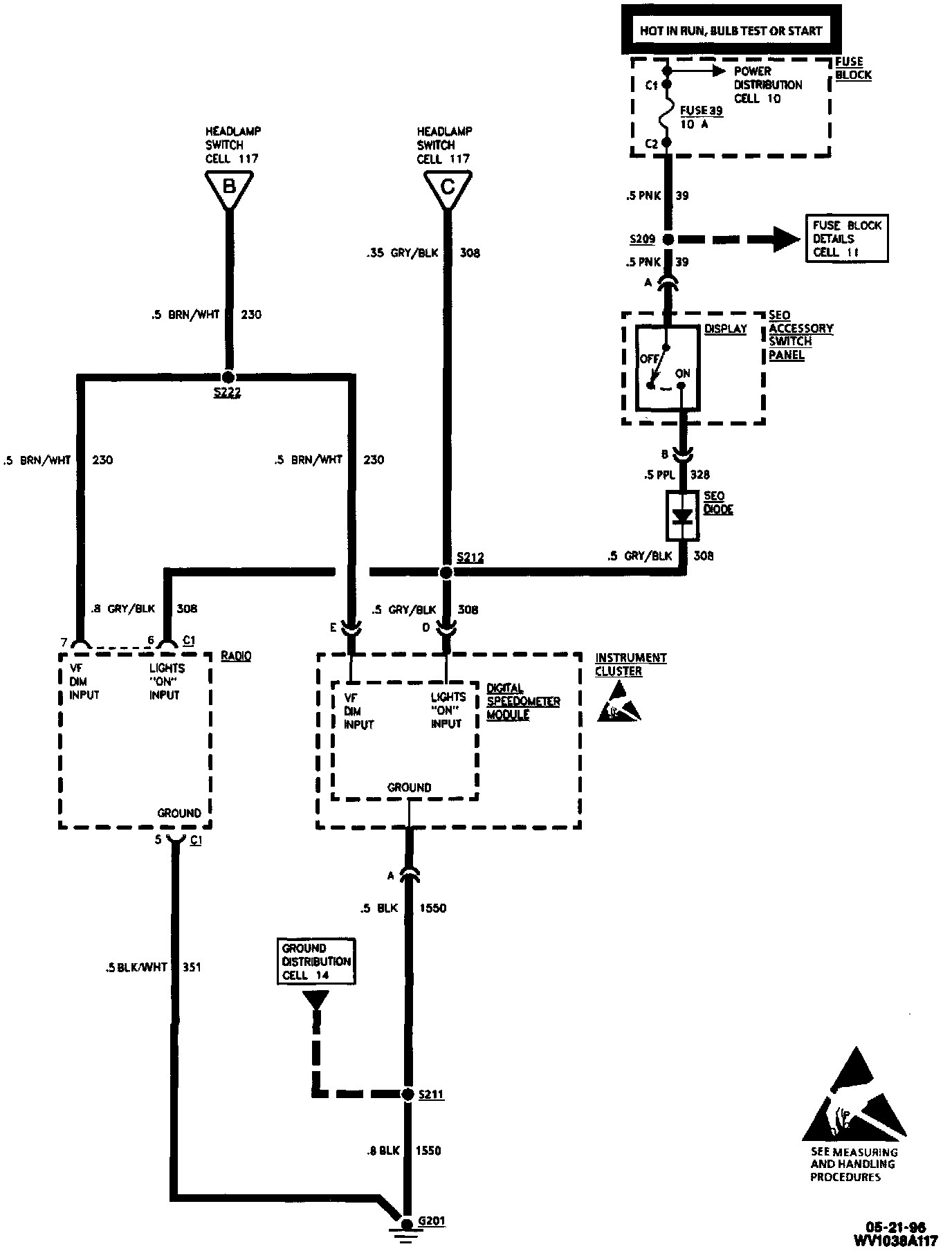

Interior Lights Dimming (SEO):
