Brake Light Switch: Adjustments

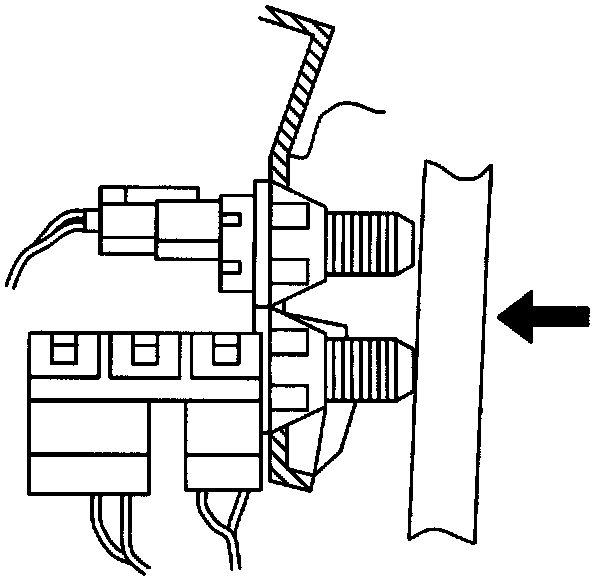

1. Insert stoplamp switch into brake pedal bracket.





2. Push brake pedal forward to set brake pushrod into booster.

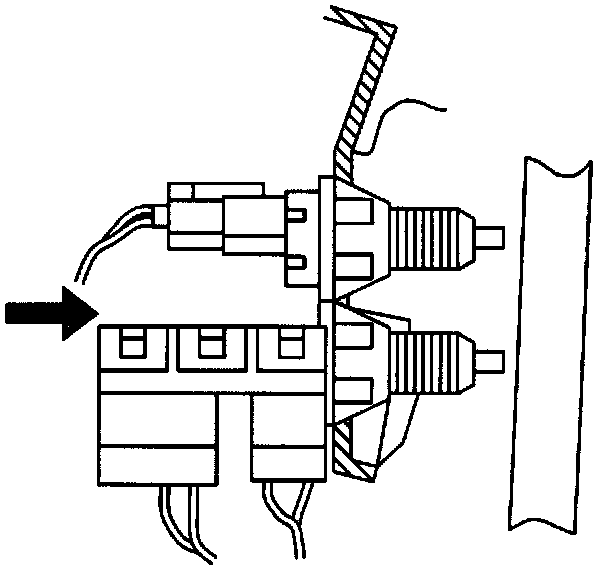

3. Pull brake pedal to the rear, against internal stop. The stoplamp switch will be adjusted.
