Inside Handle Bezel

DOOR INSIDE HANDLE BEZEL

REMOVAL PROCEDURE
Coupe and Sedan

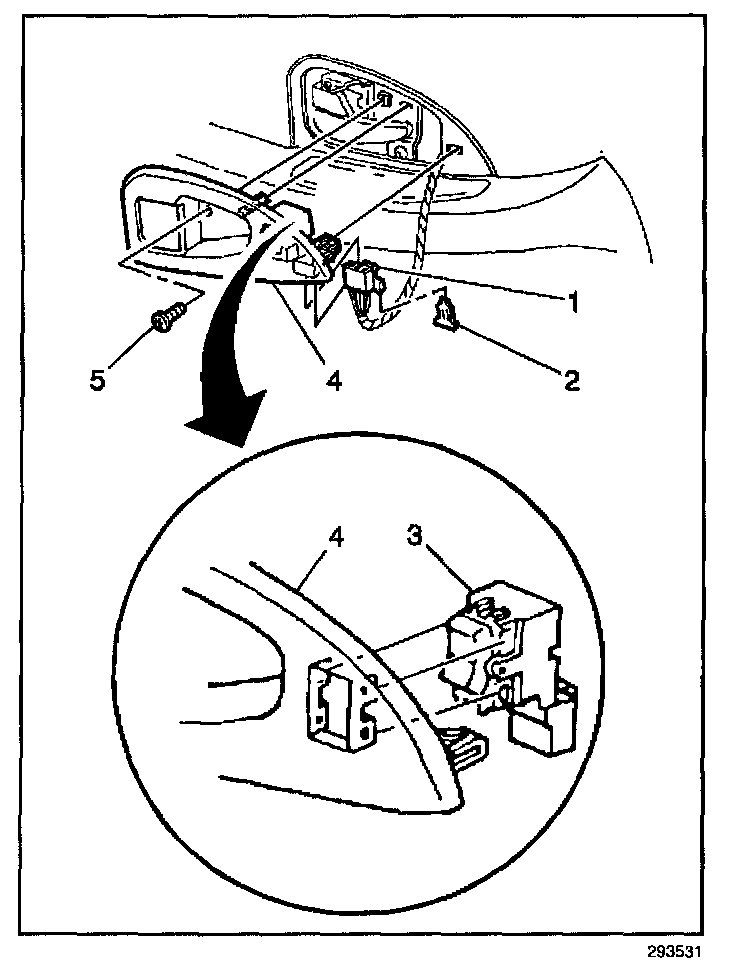

1. Remove the front door inside handle bezel screw (5).
2. Remove the inside handle bezel (4) from the trim panel.
3. Disconnect the electrical connector, if equipped.

INSTALLATION PROCEDURE




1. Connect the electrical connector, if equipped.
2. Position the handle bezel (4) to the inner trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the inside handle bezel screw.

Tighten
Tighten the bezel screw to 2 Nm (18 lb in).
