Window Regulator Handle Replacement
WINDOW REGULATOR HANDLE REPLACEMENTREMOVAL PROCEDURE
TOOLS REQUIRED
J9886-01 Door Handle Clip Remover

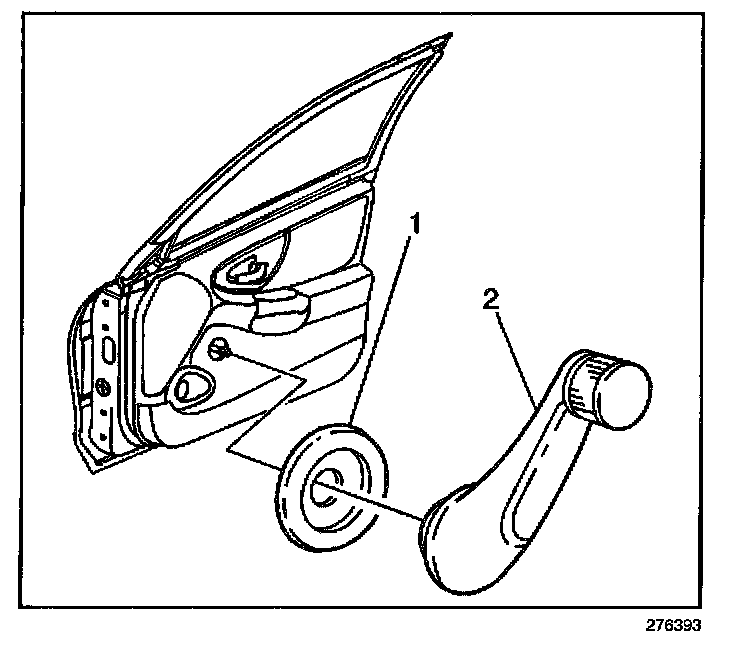

1. Remove the spring clip by inserting the J9886-01 between the window regulator handle and the door window regulator handle bearing plate.
2. Pull the door window regulator handle (2) outward in order to remove the handle.
3. Remove the door window regulator handle bearing plate (1).
INSTALLATION PROCEDURE
1. Raise the window to the full up position.
2. Install the clip to the door window regulator handle (2).
3. Install the door window regulator handle bearing plate (1).
4. Position the door window regulator handle.
5. Push the door window regulator handle inward in order to secure the handle.
