Home >> Chevrolet >> 1997 >> Malibu V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> LF

LF

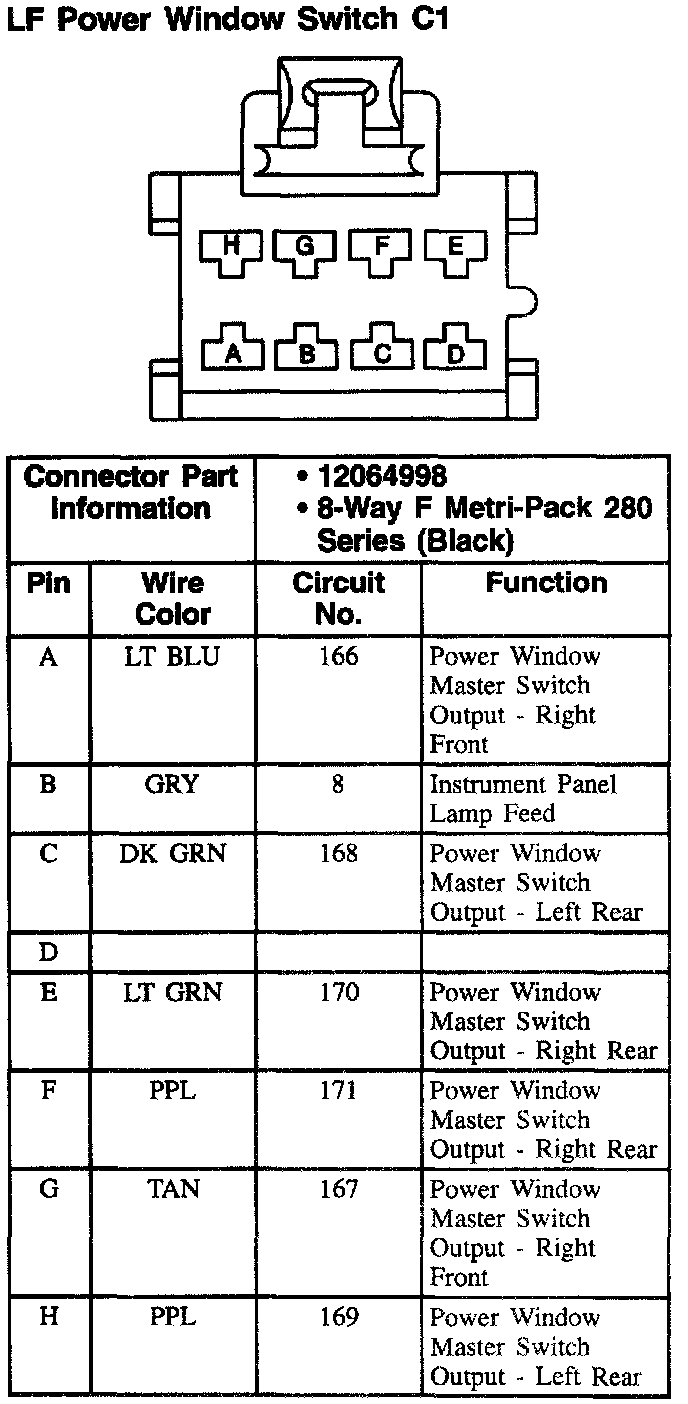

LF Power Window Switch: C1:

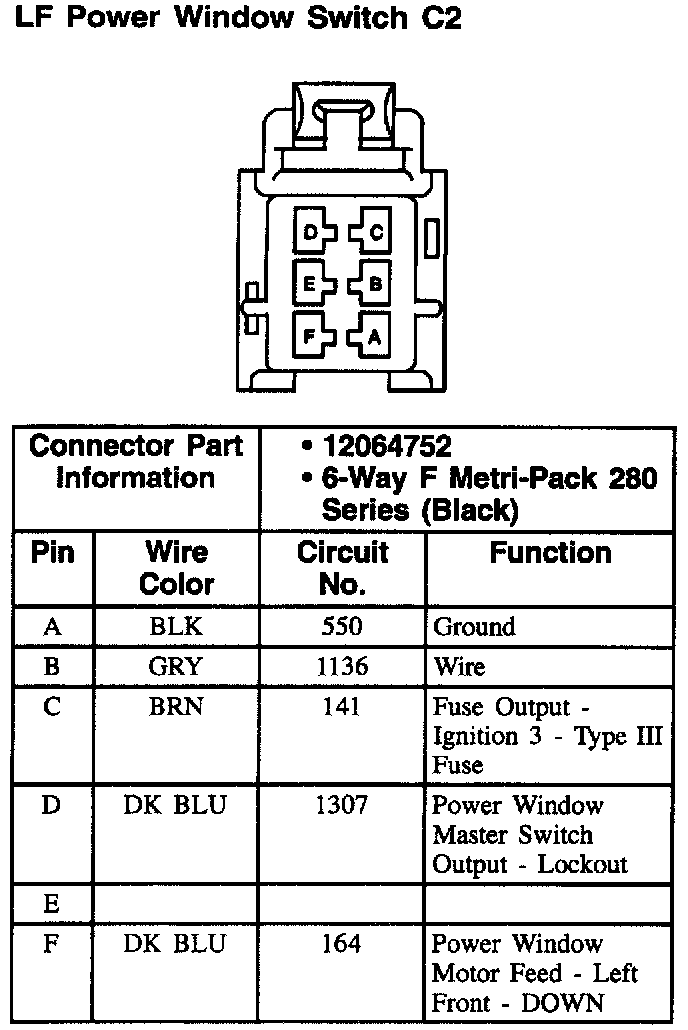

LF Power Window Switch: C2:
