Home >> Chevrolet >> 1997 >> Malibu V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> LR

LR

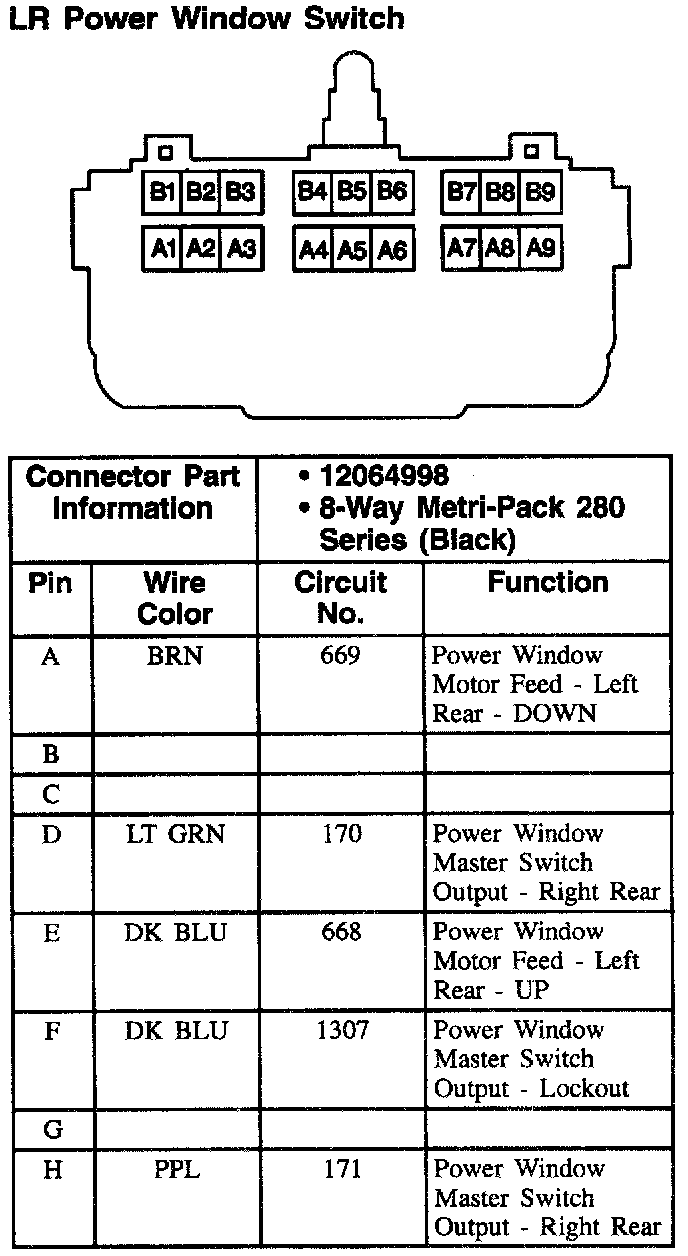

LR Power Window Switch:
