RH Backup Does Not Operate

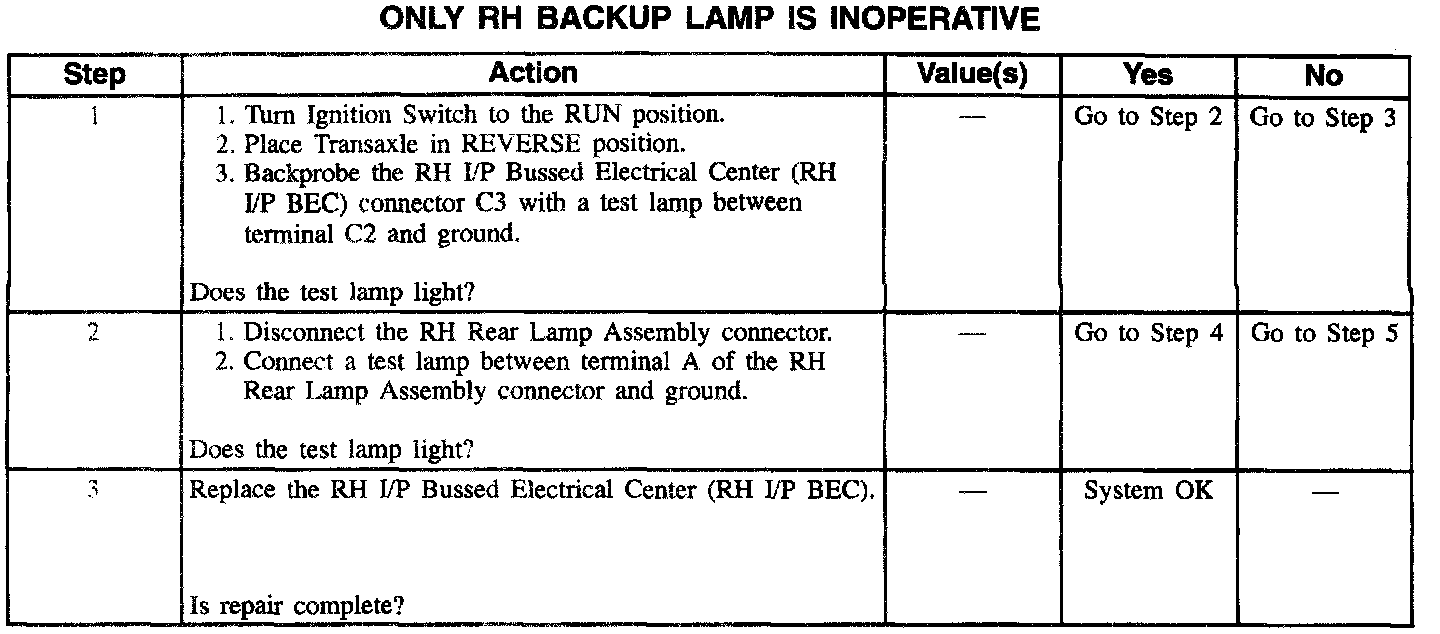

Only RH Backup Lamp Is Inoperative (Part 1 Of 2):



Only RH Backup Lamp Is Inoperative (Part 2 Of 2):
