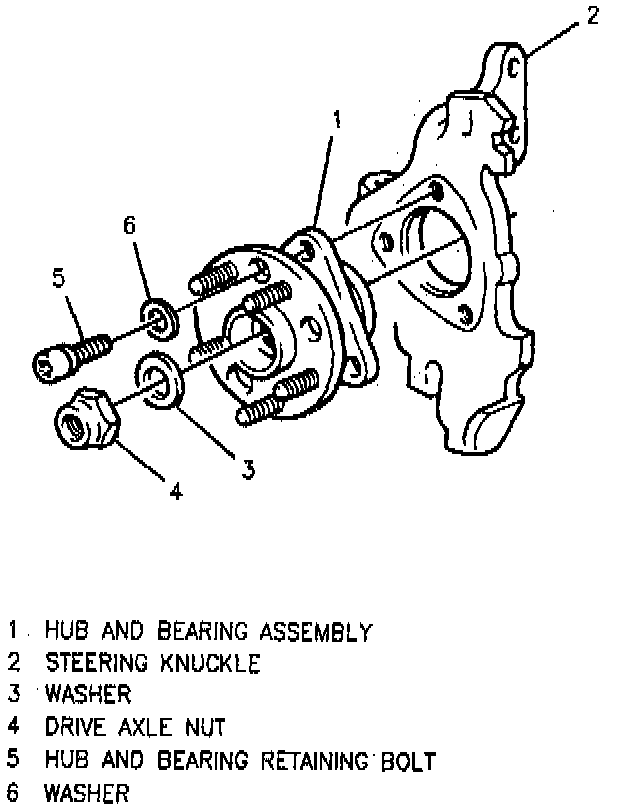

Front Hub and Bearing

FRONT HUB/BEARING






^ Tools Required:
- J 28733-A Front Hub Spindle Remover
- Or Equivalent

REMOVE OR DISCONNECT
1. Drive axle.
2. Brake caliper bolts, and support caliper.
3. Brake Rotor.
4. Hub and bearing assembly.
5. Hub and bearing assembly from steering knuckle.
6. Hub and bearing.

INSTALL OR CONNECT
1. Hub and bearing assembly to steering knuckle.
2. Hub and bearing assembly bolts.
^ Tighten hub and bearing assembly bolts to 95 Nm (70 ft lb).
3. Brake Rotor.
4. Brake caliper and bolts. Refer to Brakes and Traction Control.
5. New hub and bearing into steering knuckle.
6. Drive axle.
7. Check front wheel alignment.
