System Test - Antenna

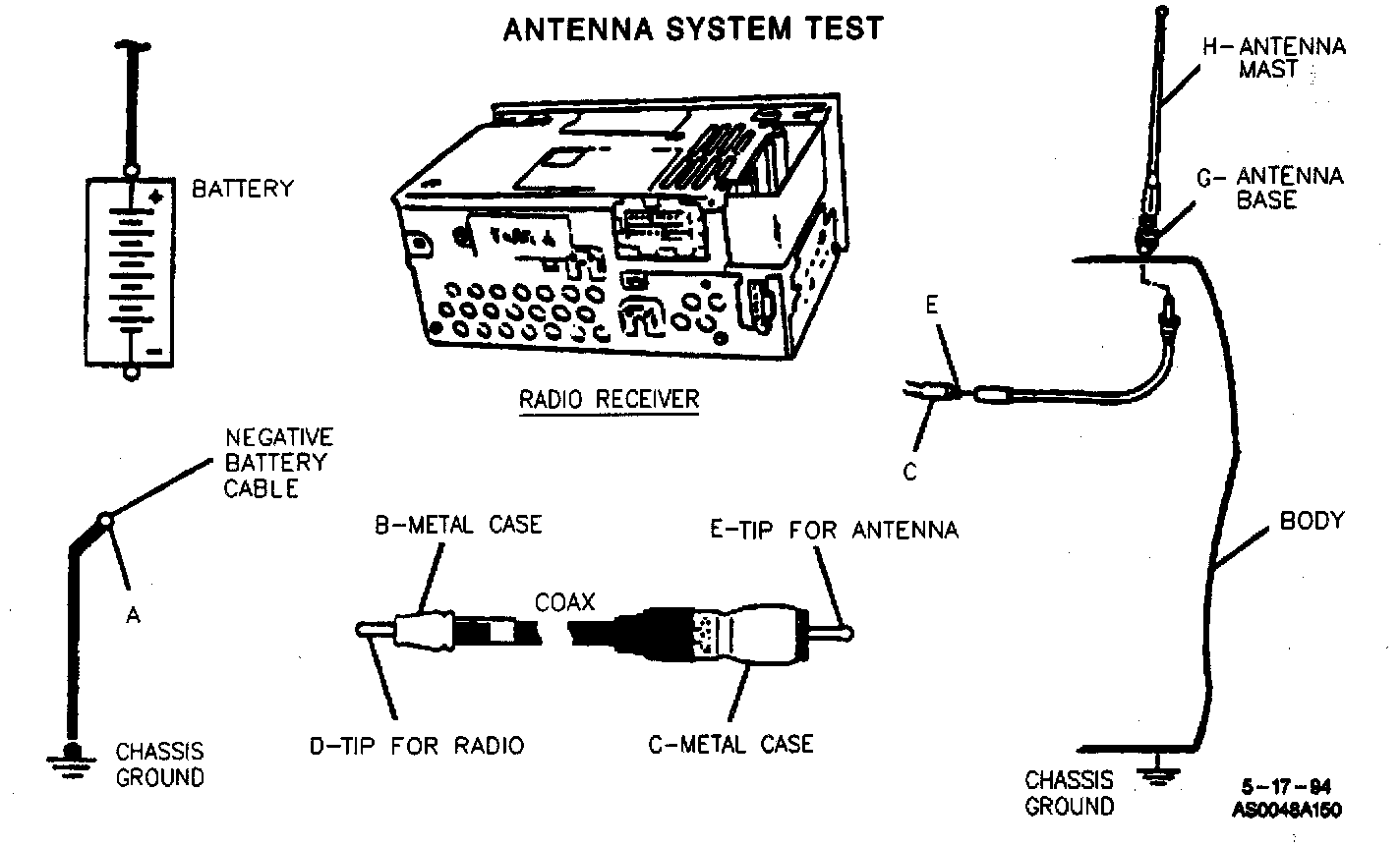

Antenna System Test:

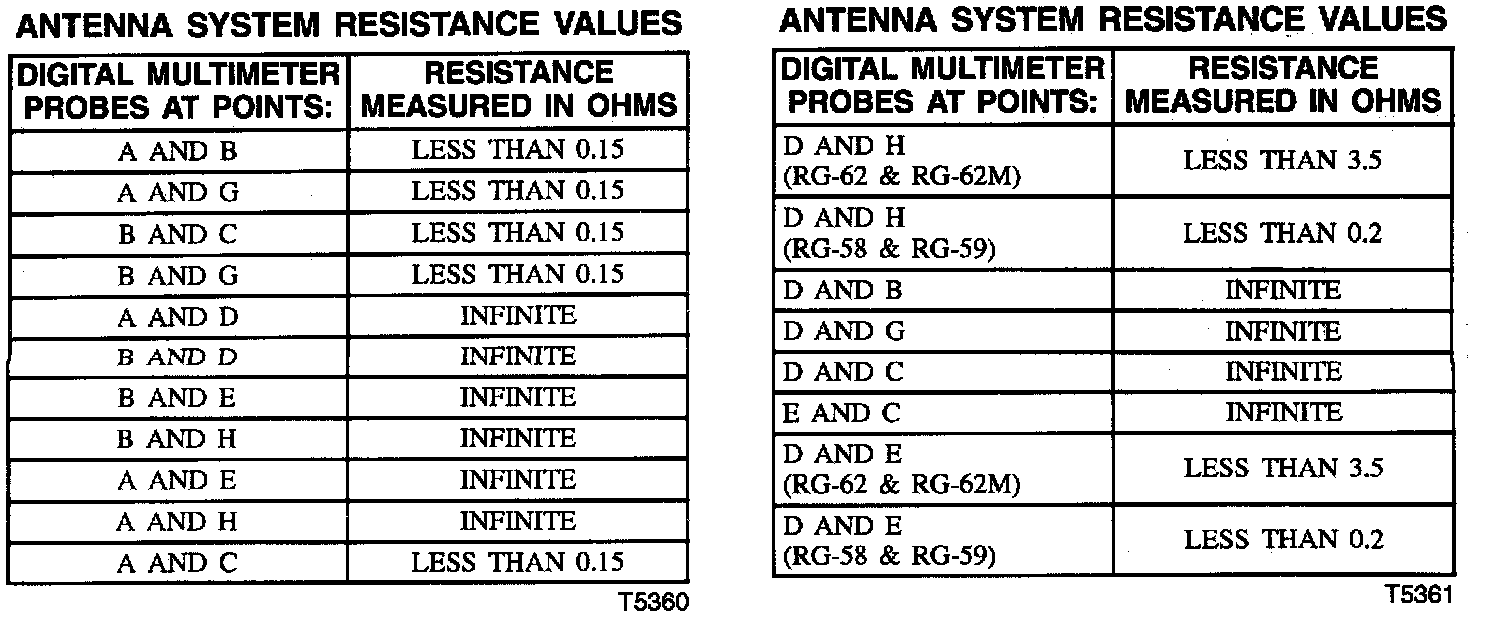

Antenna System Resistance Values:

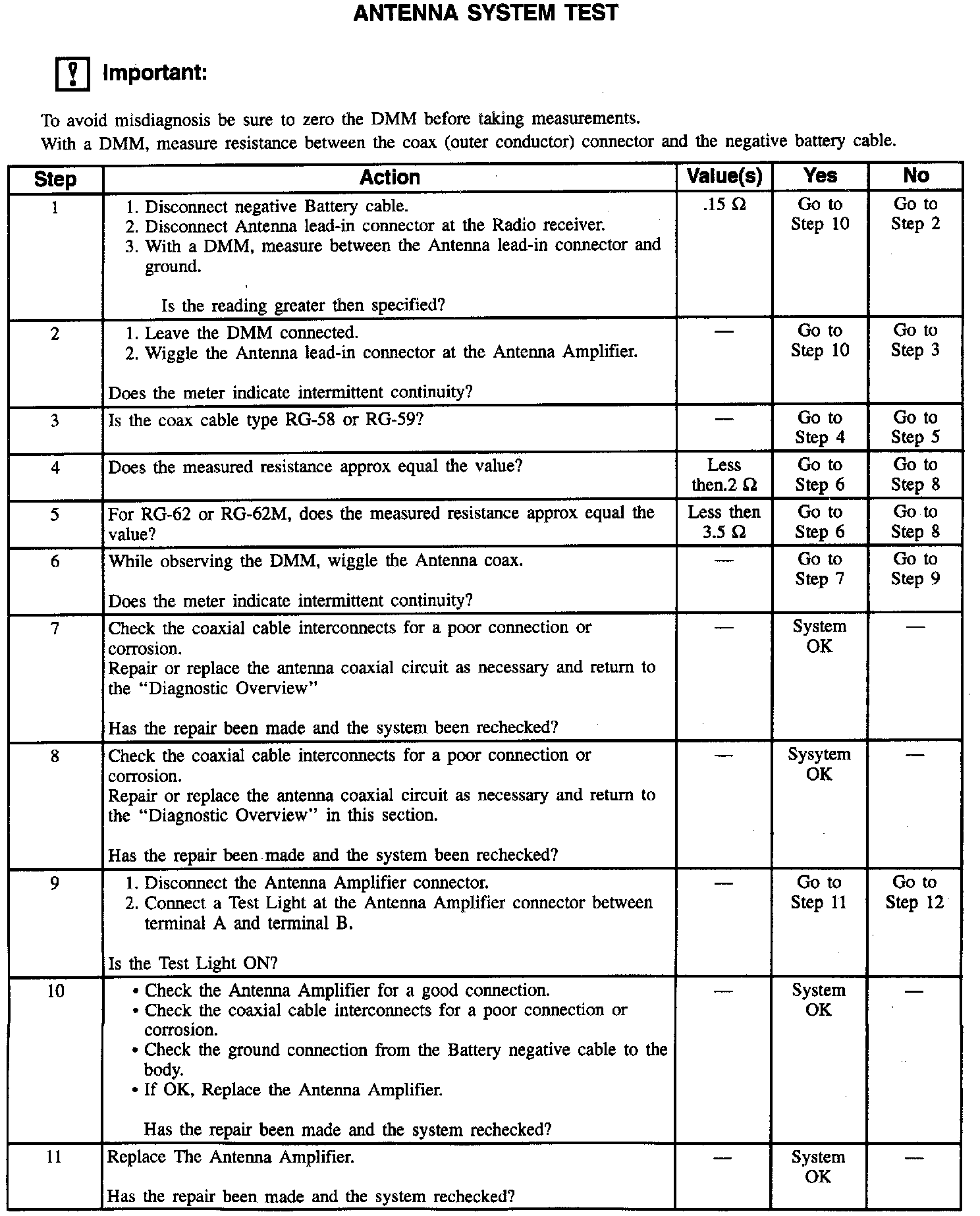

Antenna System Test (Part 1 Of 2):

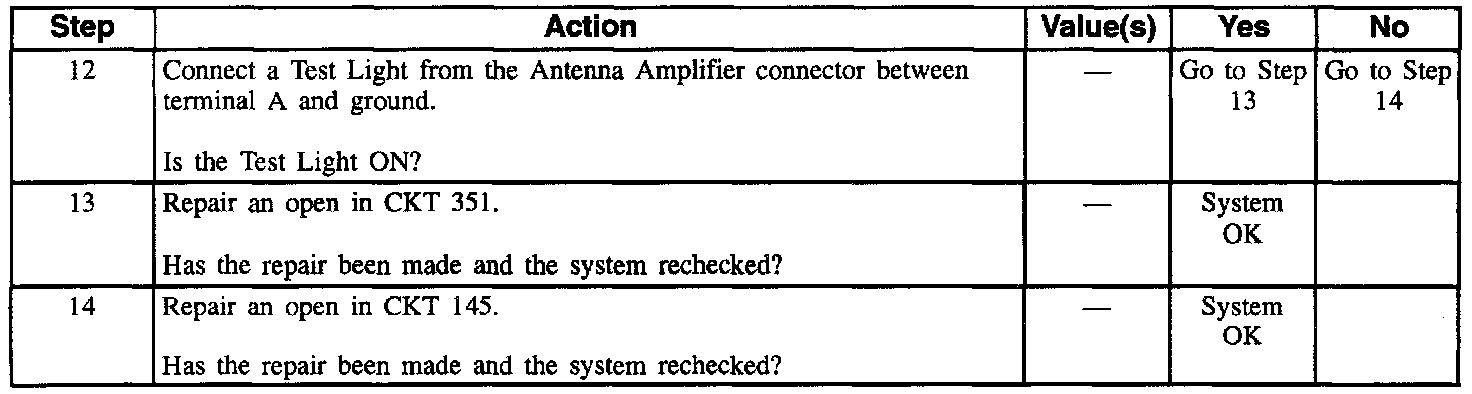

Antenna System Test (Part 2 Of 2):

Important: Before measuring the resistance of the Antenna, remove the negative lead of the Battery and zero the meter before taking measurements. When checking resistance, cautiously wiggle, the lead-in tip and cable. The readings below should always be obtained. If not, some portion of the lead-in is intermittent and should be replaced.
