C1216

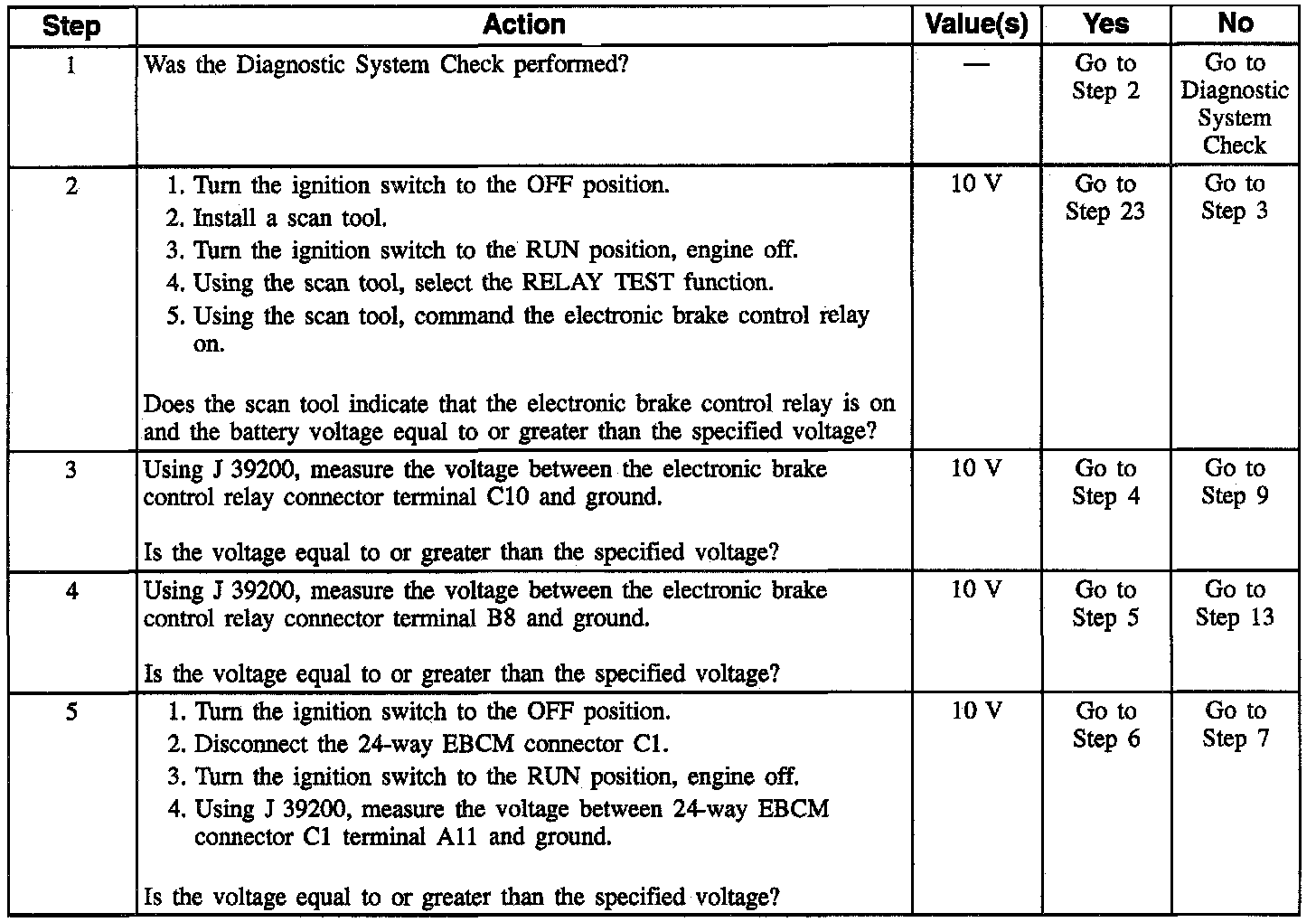

DTC C1216 (1 Of 3):

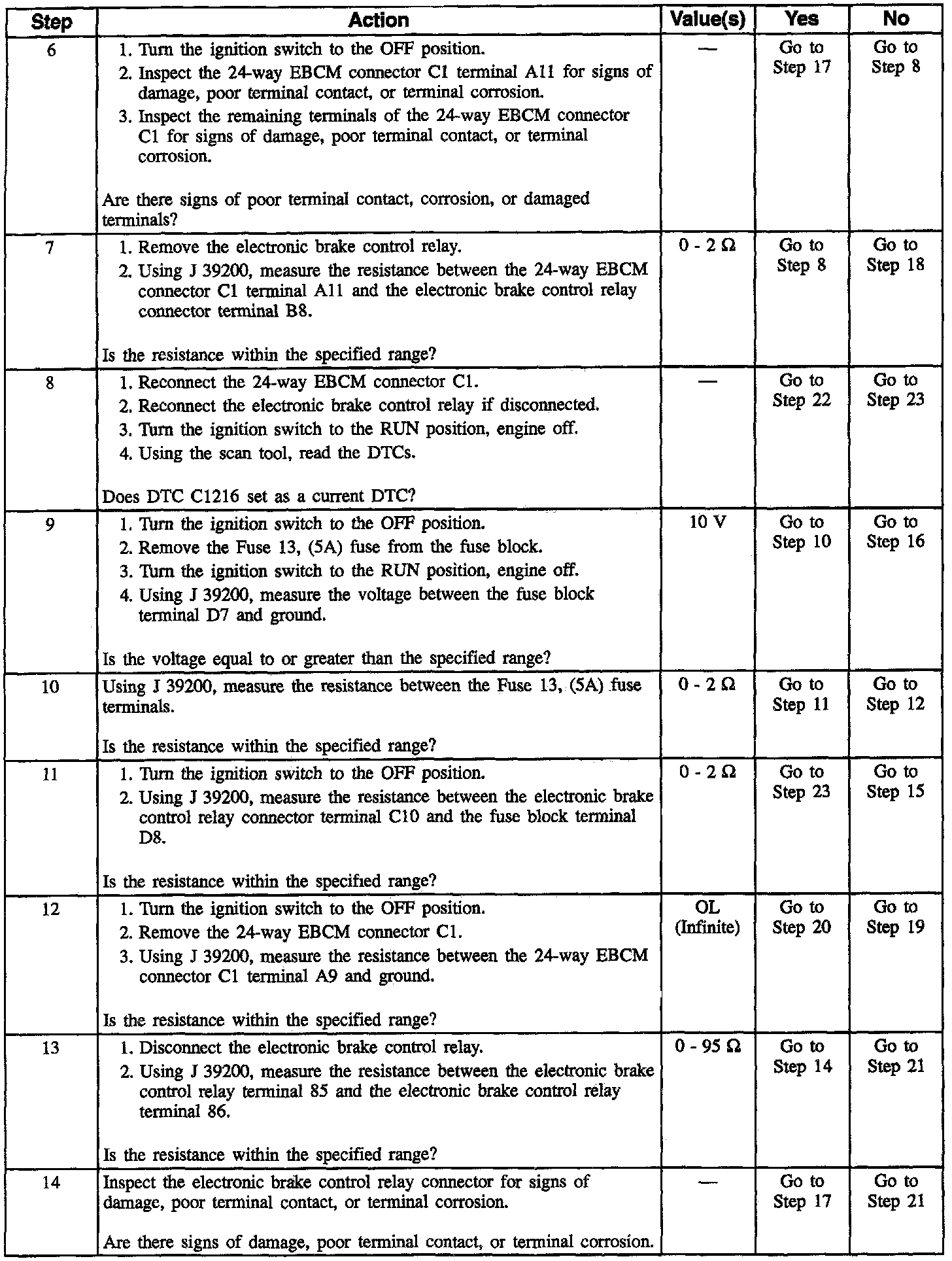

DTC C1214 (2 Of 3):

DTC C1216 (3 Of 3):

CIRCUIT DESCRIPTION
Ignition voltage is supplied through terminal C10 of the electronic brake control relay. The EBCM then is able to energize the pull-in coil by completing the ground circuit at connector C1 terminal All of the EBCM. The magnetic field created closes the electronic brake control relay contacts and allows battery voltage and current through the electronic brake control relay terminal B10 to be supplied to the EBCM through connector C2 terminal C, which supplies power to the motors and solenoids.

CONDITIONS FOR SETTING THE DTC
DTC C1216 can be set anytime. This test detects an open in the electronic brake control relay coil circuit. An open in this circuit will not allow the electronic brake control relay to be energized thus preventing voltage/current to the motors and solenoids. If this malfunction is present and the ignition is turned off before 5 km/h (3 mph) is reached, DTC C1214 is set alone.

Action Taken When the DTC Sets
A malfunction DTC is stored, ABS is disabled, and the amber ABS warning indicator is turned on. The red BRAKE warning indicator is turned on if the rear piston in the ABS brake modulator is not in the home position.

DIAGNOSTIC AIDS
An intermittent malfunction may be caused by a poor connection, rubbed through wire insulation, or a wire that is broken inside the insulation. The frequency of the malfunction can be checked by using the enhanced diagnostic function of the scan tool. If the frequency of the malfunction is high, but is currently intermittent, check for high coil resistance by measuring between electronic brake control relay 85 and 86 using J 39200. If resistance is greater than 95 ohms, replace the electronic brake control relay. Any circuitry that is suspected of causing the intermittent complaint should be thoroughly checked for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wiring connections, or physical damage to the wiring harness.

NOTE: J 39200 test leads must be zeroed prior to making any resistance measurements.

After diagnosis is complete, clear the DTCs and test drive the vehicle for three drive cycles to verify that the DTC does not reset. A drive cycle consists of starting the vehicle, driving the vehicle over 16 km/h (10 mph), stopping the vehicle and then turning the ignition to the OFF position.
