C1292

DTC C1292 (1 Of 2):

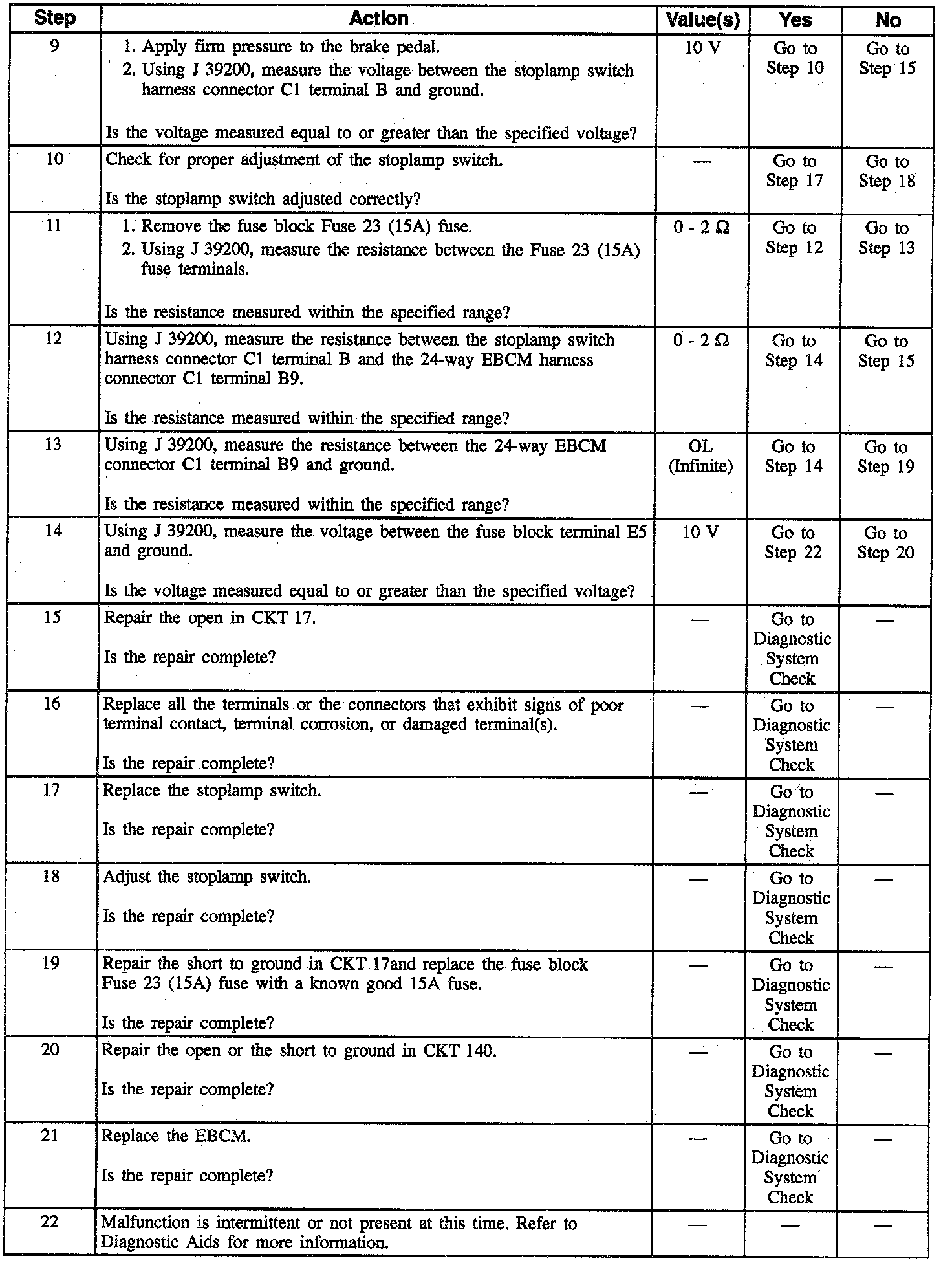

DTC C1292 (2 Of 2):

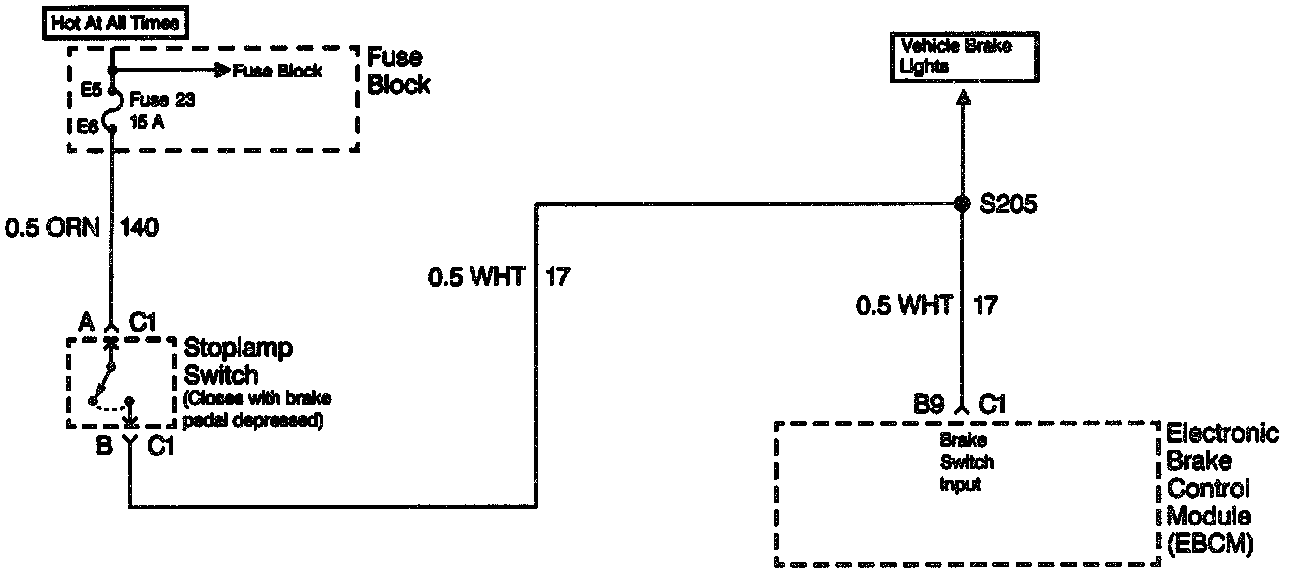

CIRCUIT DESCRIPTION
This DTC test is used to determine the proper operation of the stoplamp switch. This is important because ABS is activated when the stoplamp switch is on. If the stoplamp switch is off, ABS will never be activated. Since this malfunction is difficult to detect under normal braking conditions, this malfunction is only detected when ABS is required.

CONDITIONS FOR SETTING THE DTC
DTC C1292 can be set if the vehicle's speed is greater than 8 km/h (5 mph). If the brake was not on and a release was required on two channels for 0.5 second, a malfunction exists.

ACTION TAKEN WHEN THE DTC SETS
A malfunction DTC is stored, ABS is disabled. and the amber ABS warning indicator is turned on.

DIAGNOSTIC AIDS
An intermittent malfunction may be caused by a poor connection, rubbed through wire insulation, or a wire that is broken inside the insulation. The frequency of the malfunction can be checked by using the enhanced diagnostic function of the scan tool. Any circuitry that is suspected of causing the intermittent complaint should be thoroughly checked for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wiring connections, or physical damage to the wiring harness.

NOTE: J 39200 test leads must be zeroed prior to making any resistance measurements.
