Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Light Switch
Brake Light Switch

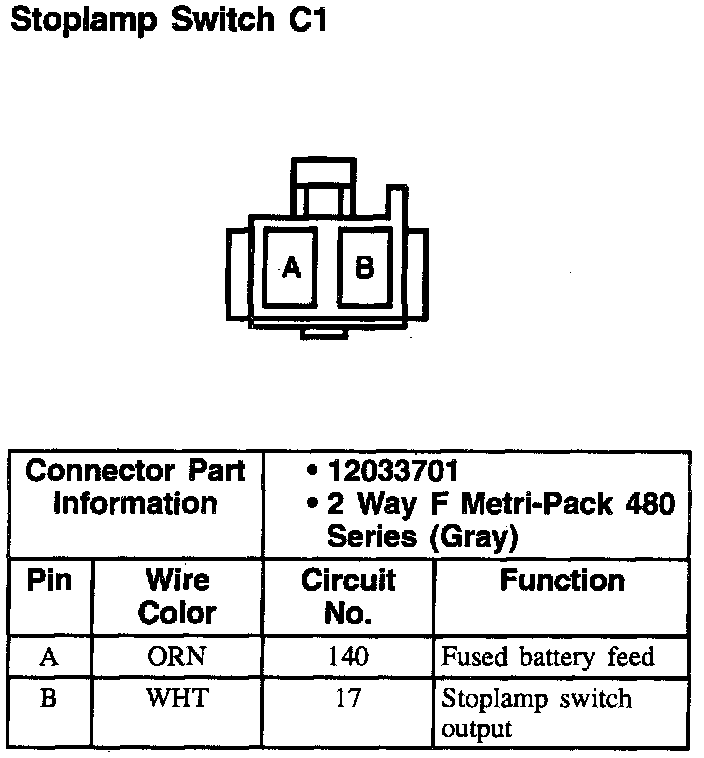

Stoplamp Switch: C1:

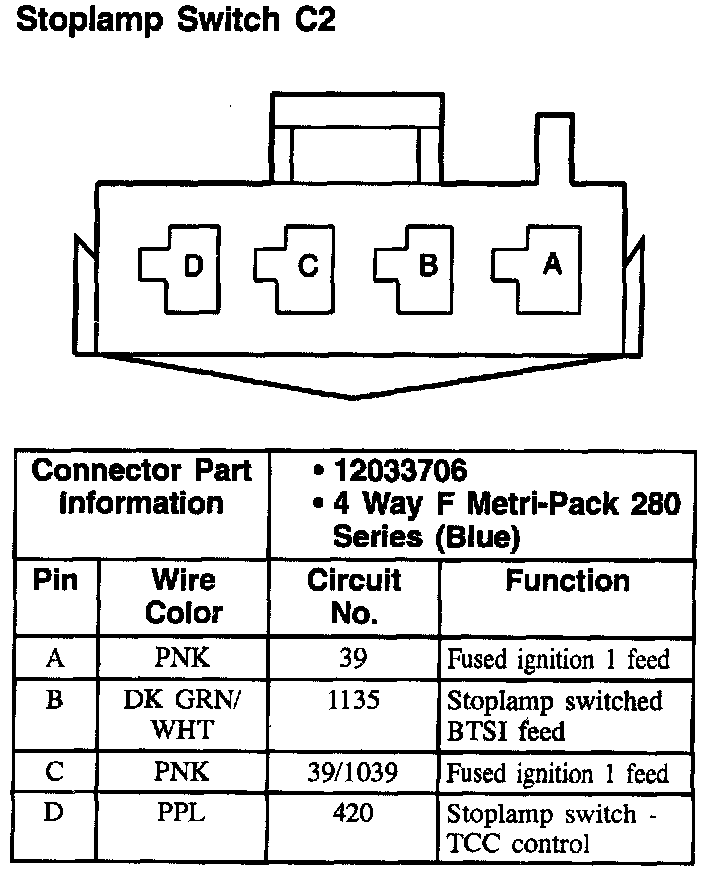

Stoplamp Switch: C2:
