Monte Carlo V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

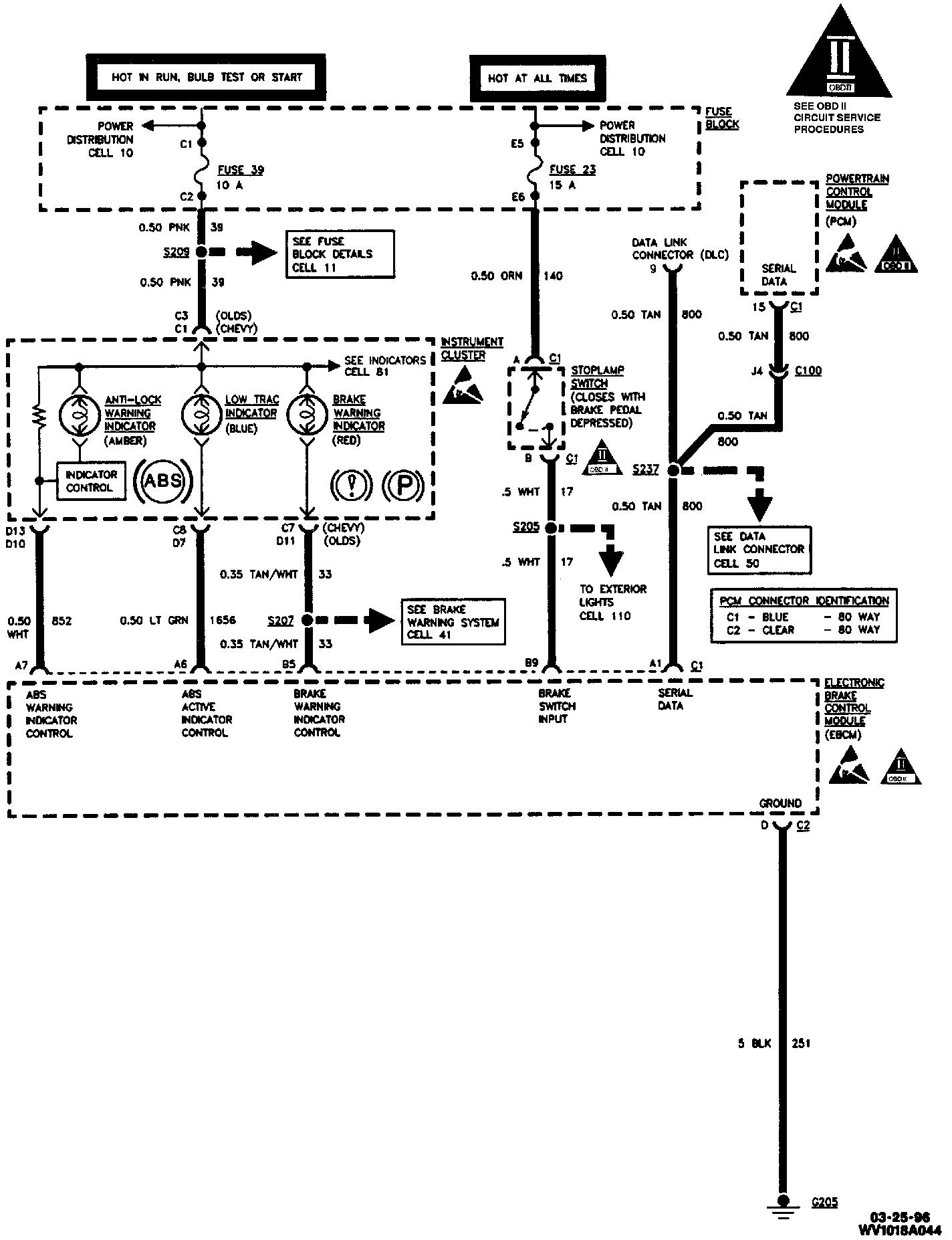

Antilock Brake System (Part 1 Of 3):

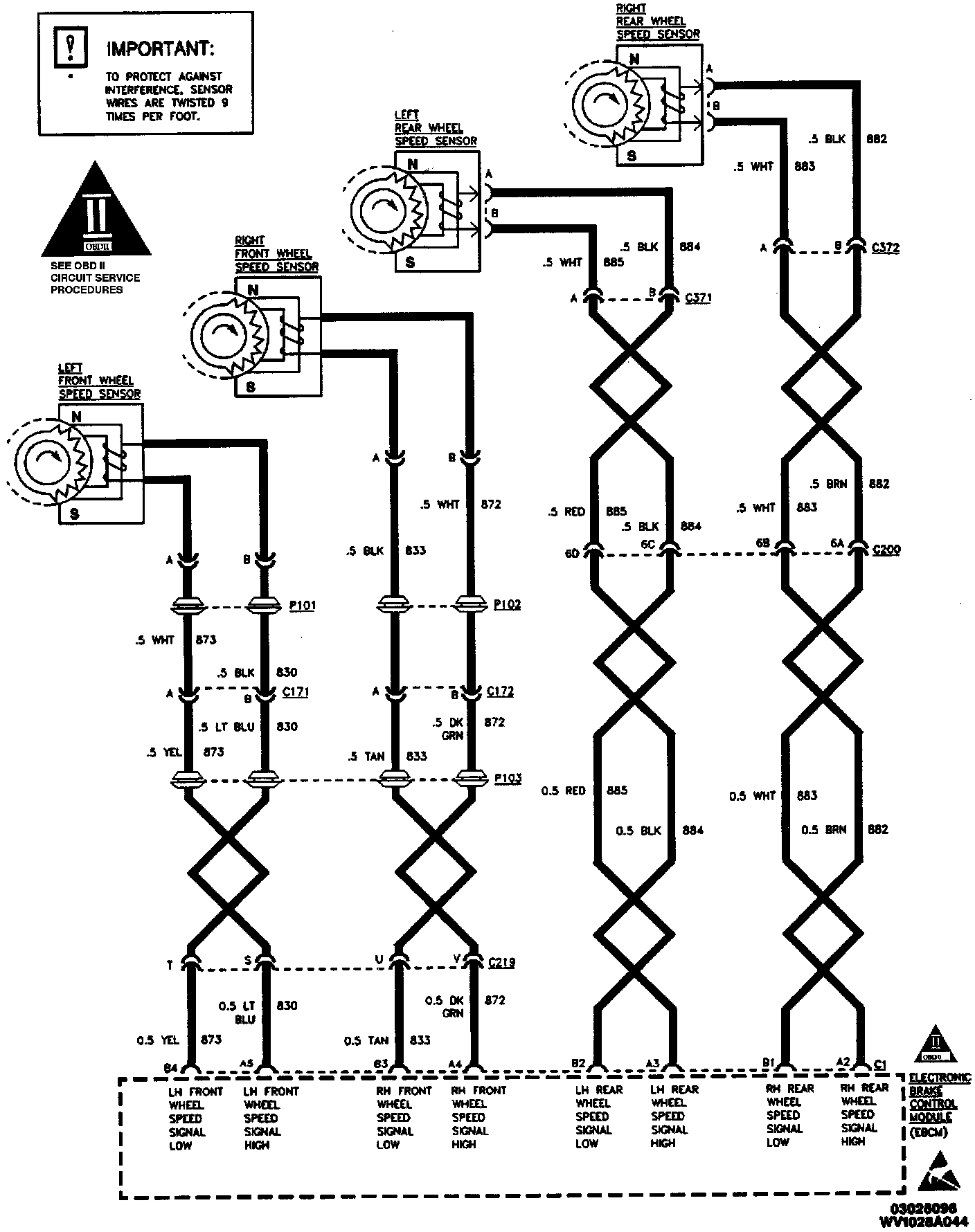

Antilock Brake System (Part 2 Of 3):
Antilock Brake System (Part 3 Of 3):
