Home >> Chevrolet >> 1997 >> Monte Carlo V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Steering Pressure Control Valve

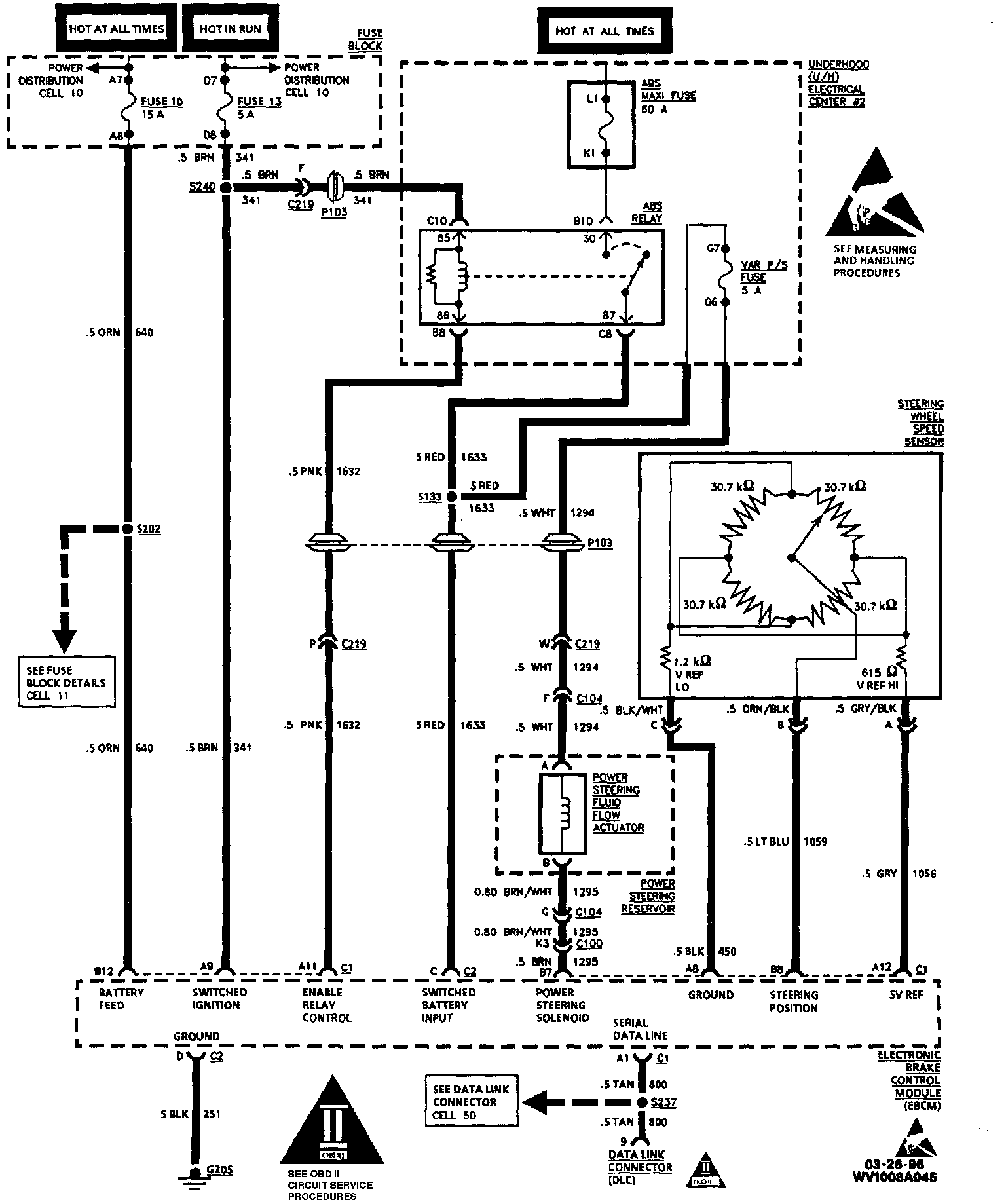

Power Steering Pressure Control Valve

Steering Wheel Controls: Magnetic Steering Variable Assist (MSVA):
