Coolant Level Indicator Module: Service and Repair

REMOVAL
1. Partially drain radiator.
2. Battery.
3. Electrical connector from module.

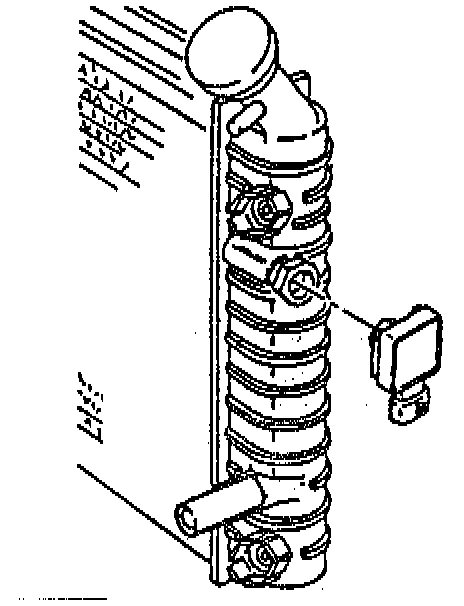

4. Module. To unlock module, lift one leg of the snap clip from its locked position and pull outward with a slight twisting motion. Inspect condition of O-ring seal.

INSTALLATION
1. O-ring. Lubricate O-ring seal with coolant.
2. Place snap clip leg in place.
3. Module.
4. Electrical connector to module.
5. Battery.
6. Fill radiator. To properly fill the system requires the use of the air bleed vents. Inspect for leaks.
