Horn: Service and Repair

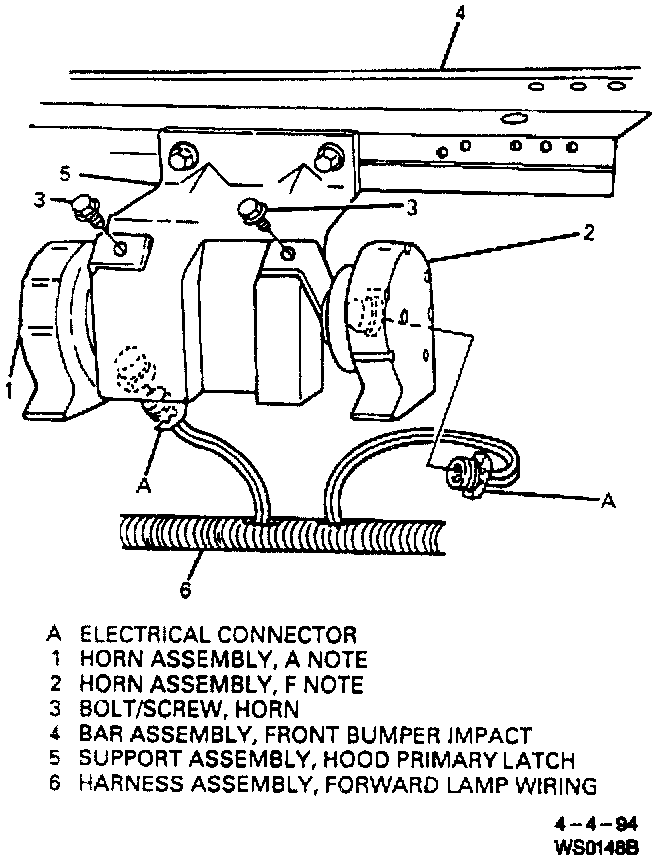

Horn Mounting (Chevrolet):

Remove or Disconnect
1. Open hood.
2. Electrical connector from horn.
3. Bolt/screw from horn.
4. Horn from support.

Install or Connect

NOTICE: Refer to Service Precautions.

Important
^ The horn should not touch or interfere with any body panel.

1. Horn to support.
2. Bolt/screw to horn.

Tighten
^ Bolt/screw to 10 N.m (89 lb. in.).

3. Electrical connector.
4. Close hood.
