Headlights/Daytime Running Lights - Schematics

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 83-81-29

Date: July, 1998

SERVICE MANUAL UPDATE

Subject:

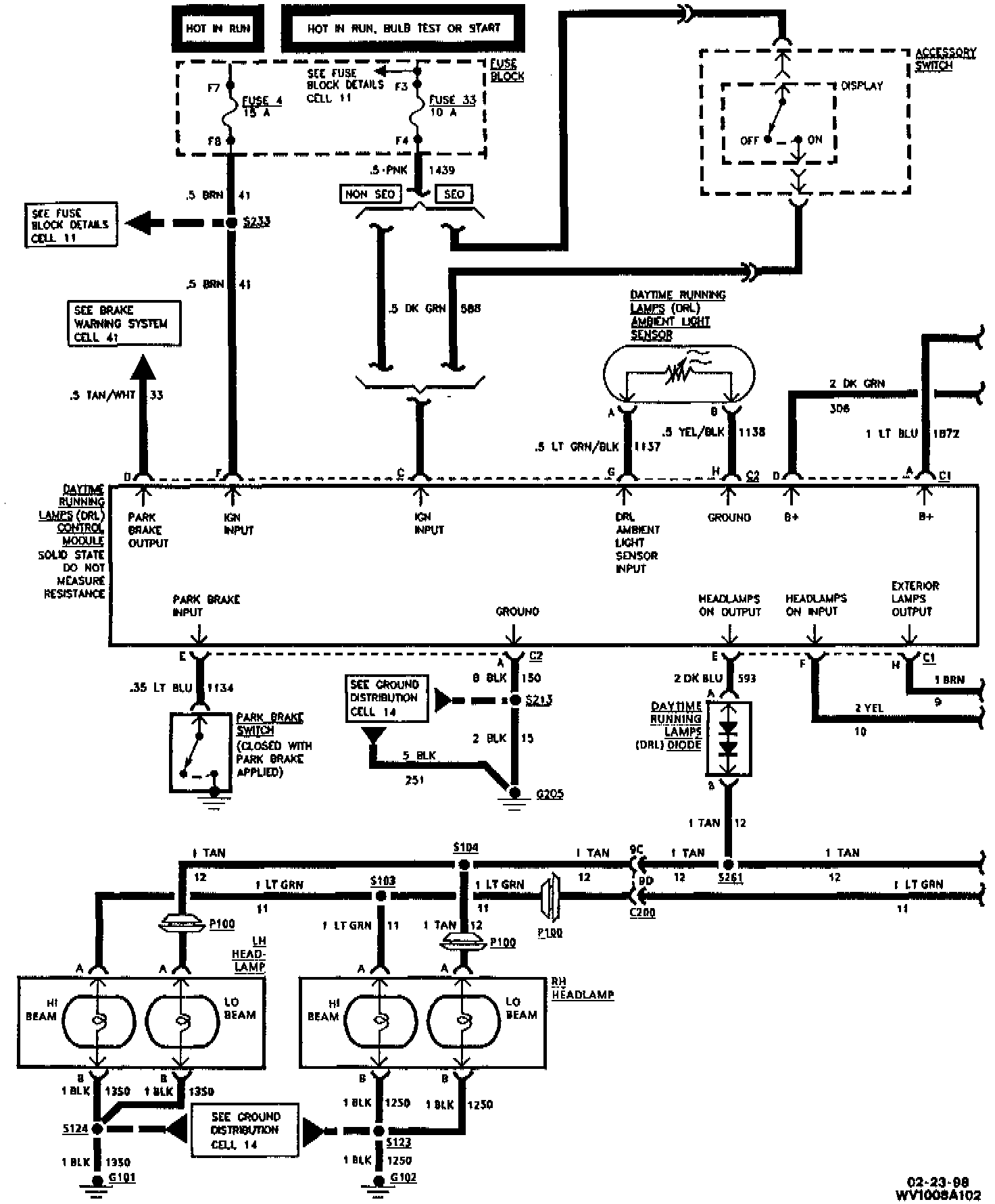

Section 8A-102 - Revised Schematics for Headlights/Daytime Running Lights (DRL)

Models:
1997 Chevrolet Lumina, Monte Carlo

This bulletin is being issued to revise the schematics for Headlights/Daytime Running Lights (DRL) in Section 8A, Page 102-0 of the 1997 Service Manual.





Please replace the current schematics with the new one.
