Lights - Revised Headlight Wiring & Diagnostics: Overview
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 73-81-39
Date: August, 1997
SERVICE MANUAL UPDATE
Subject:
Section 8A-100 - Revised Section for Headlights
(Text, Tables, and Schematics)
Models:
1997-98 Chevrolet Lumina, Monte Carlo
Built after the following VIN Breakpoints:
Plant VIN Breakpoints
Plant 1 V9314585
Plant 2 V1187756
This bulletin is being issued to revise Section 8A-100 of the Service Manual and applies to vehicles built after the above listed VIN breakpoints.
Please update the current Section 8A-100 with the text and included tables and schematics.

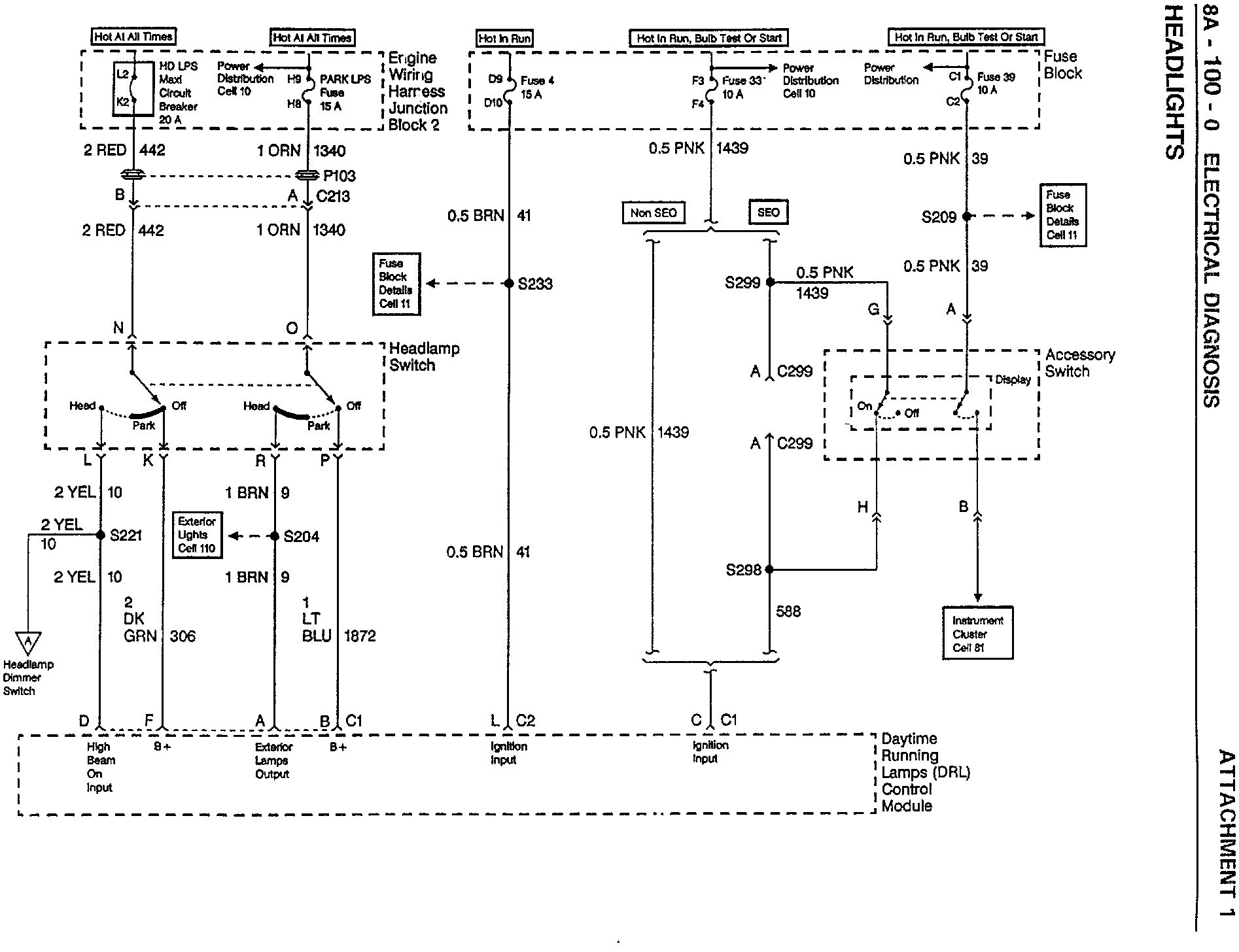

ATTACHMENT 1
ATTACHMENT 2

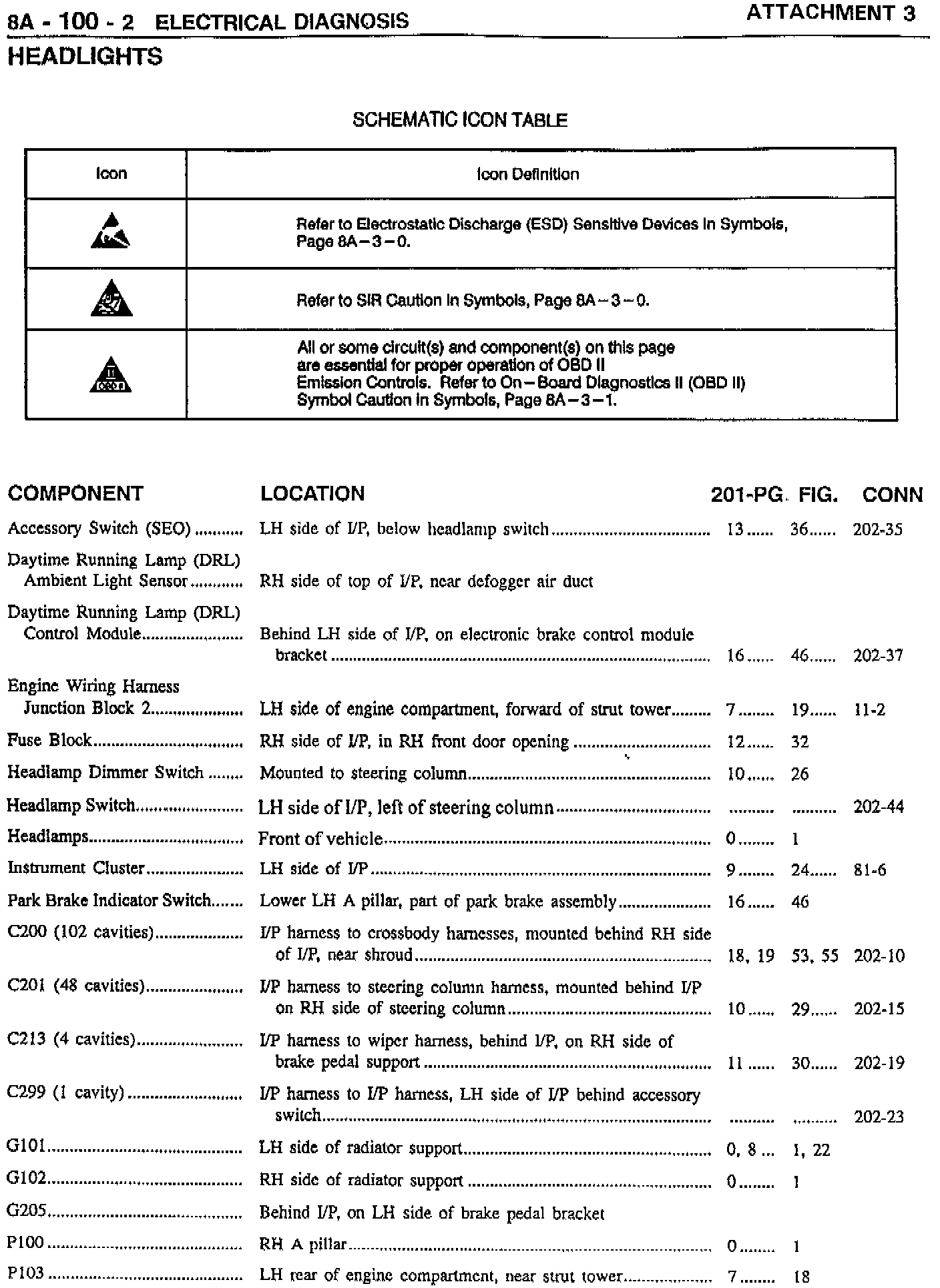

ATTACHMENT 3

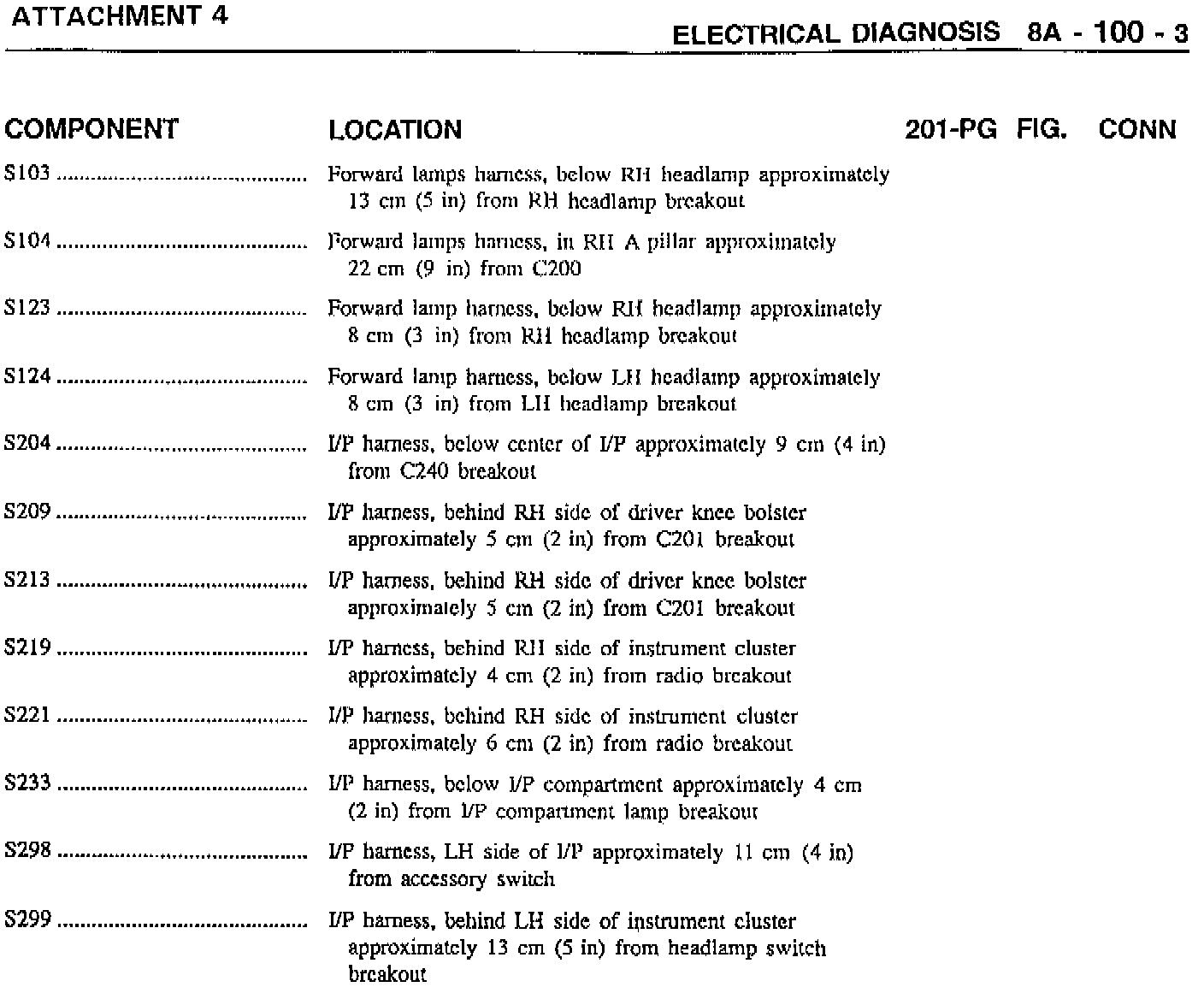

ATTACHMENT 4

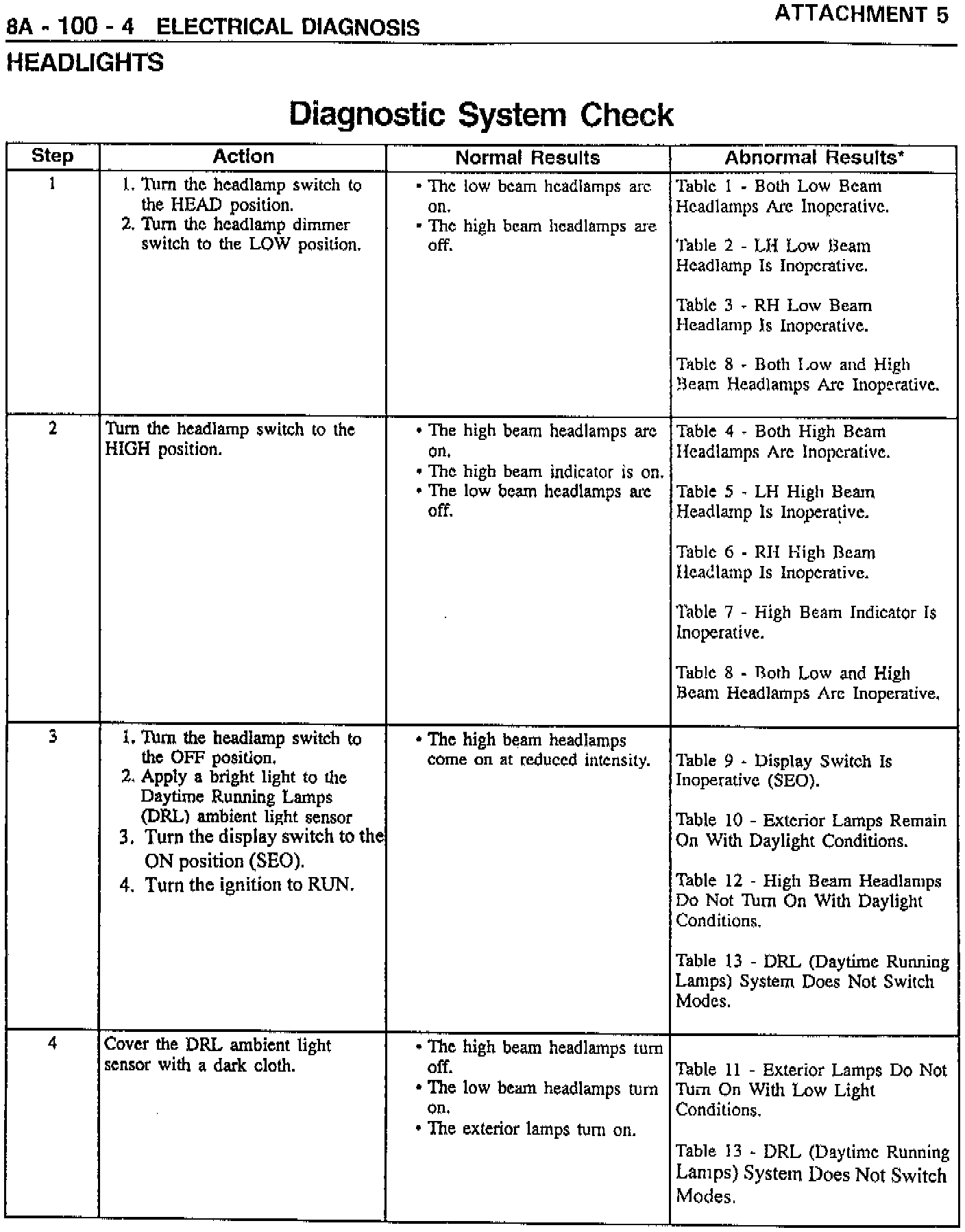

ATTACHMENT 5
ATTACHMENT 6
ATTACHMENT 7

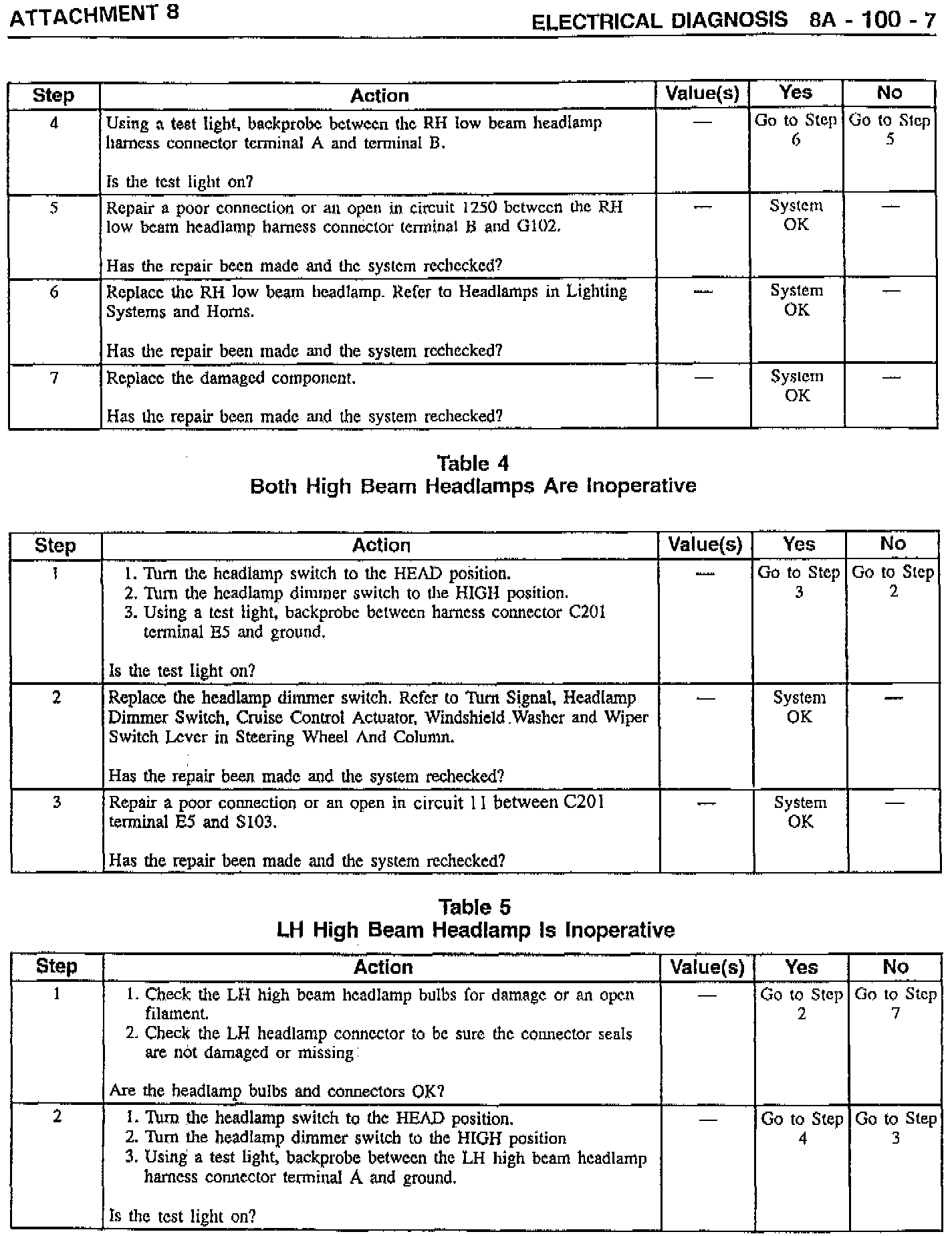

ATTACHMENT 8
ATTACHMENT 9

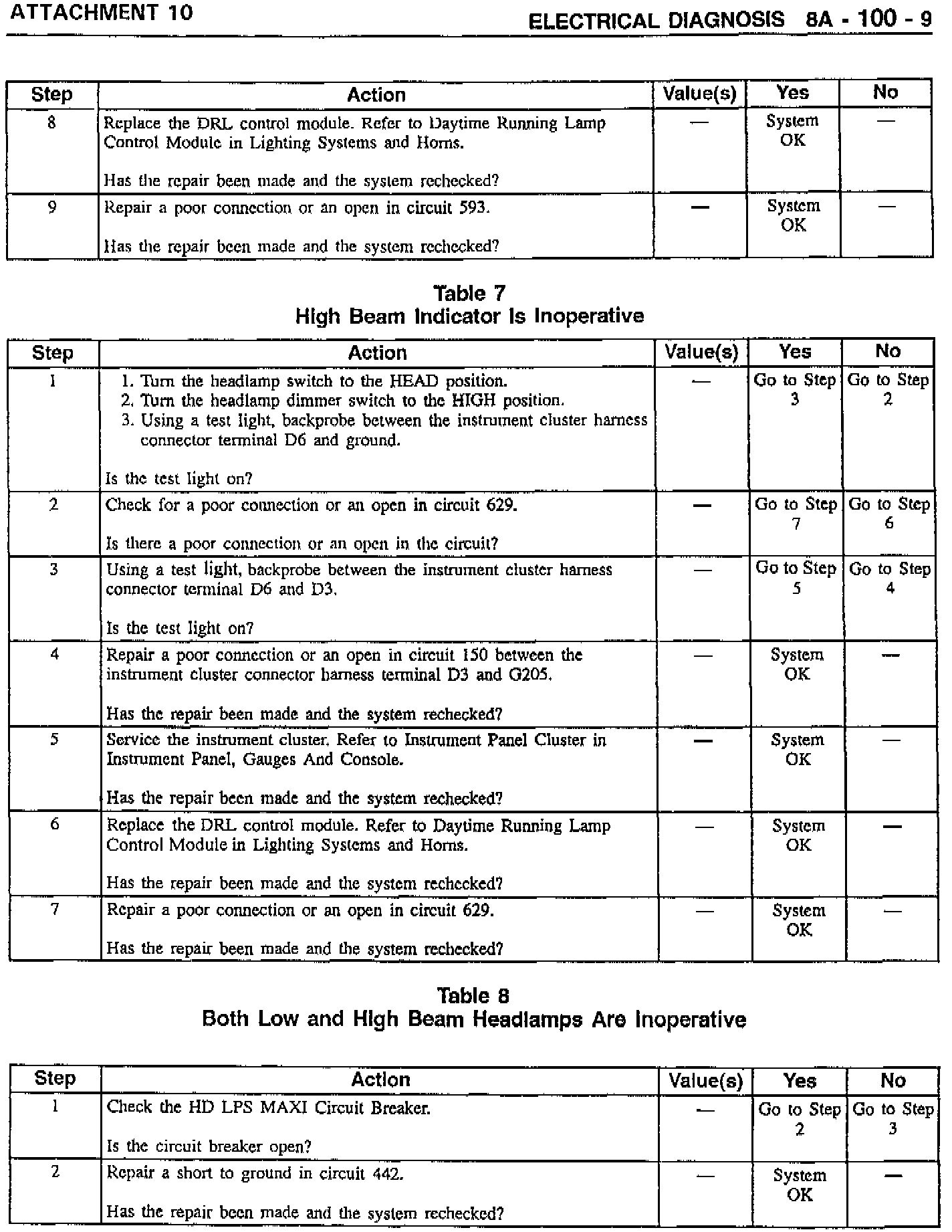

ATTACHMENT 10

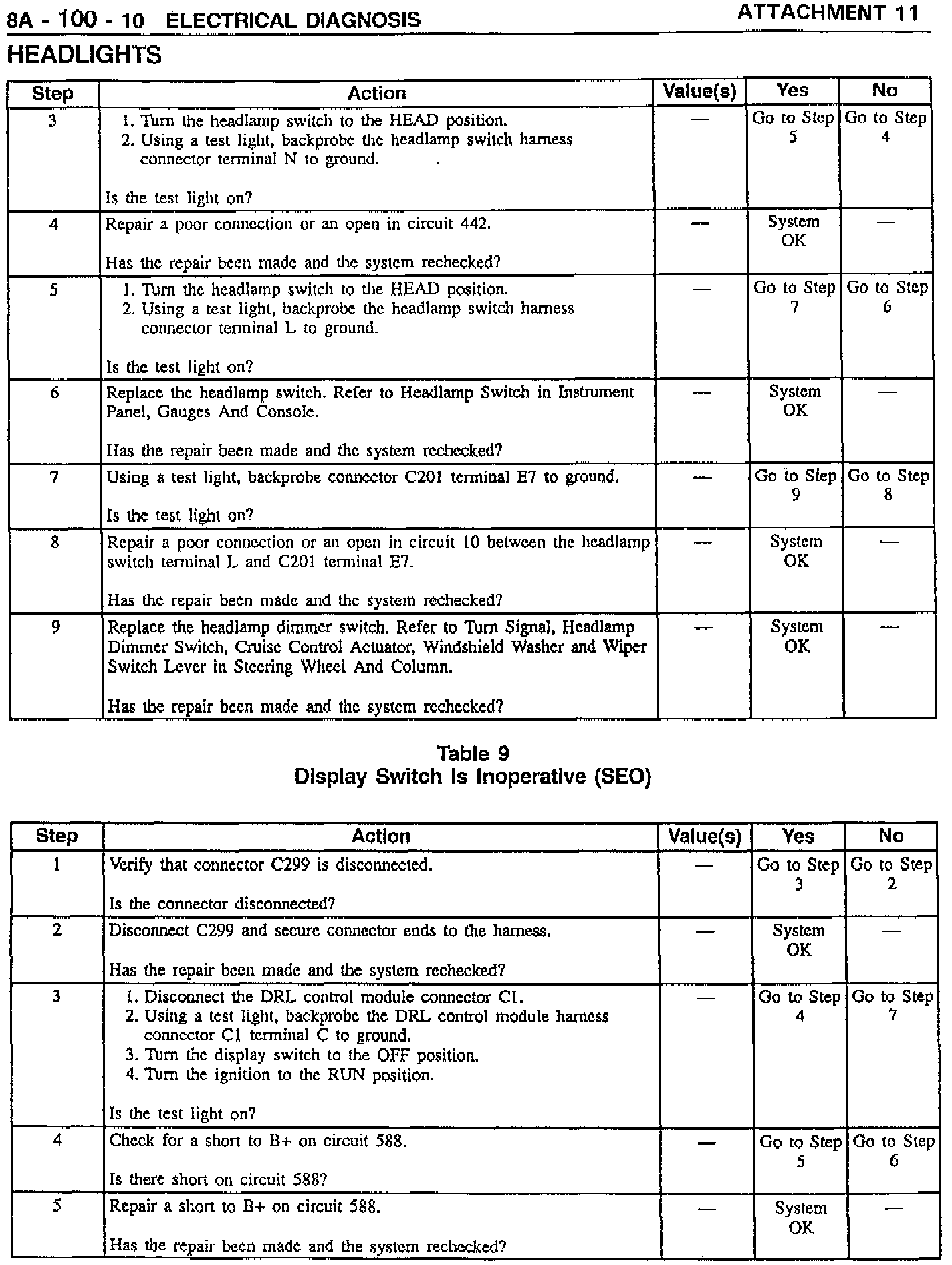

ATTACHMENT 11

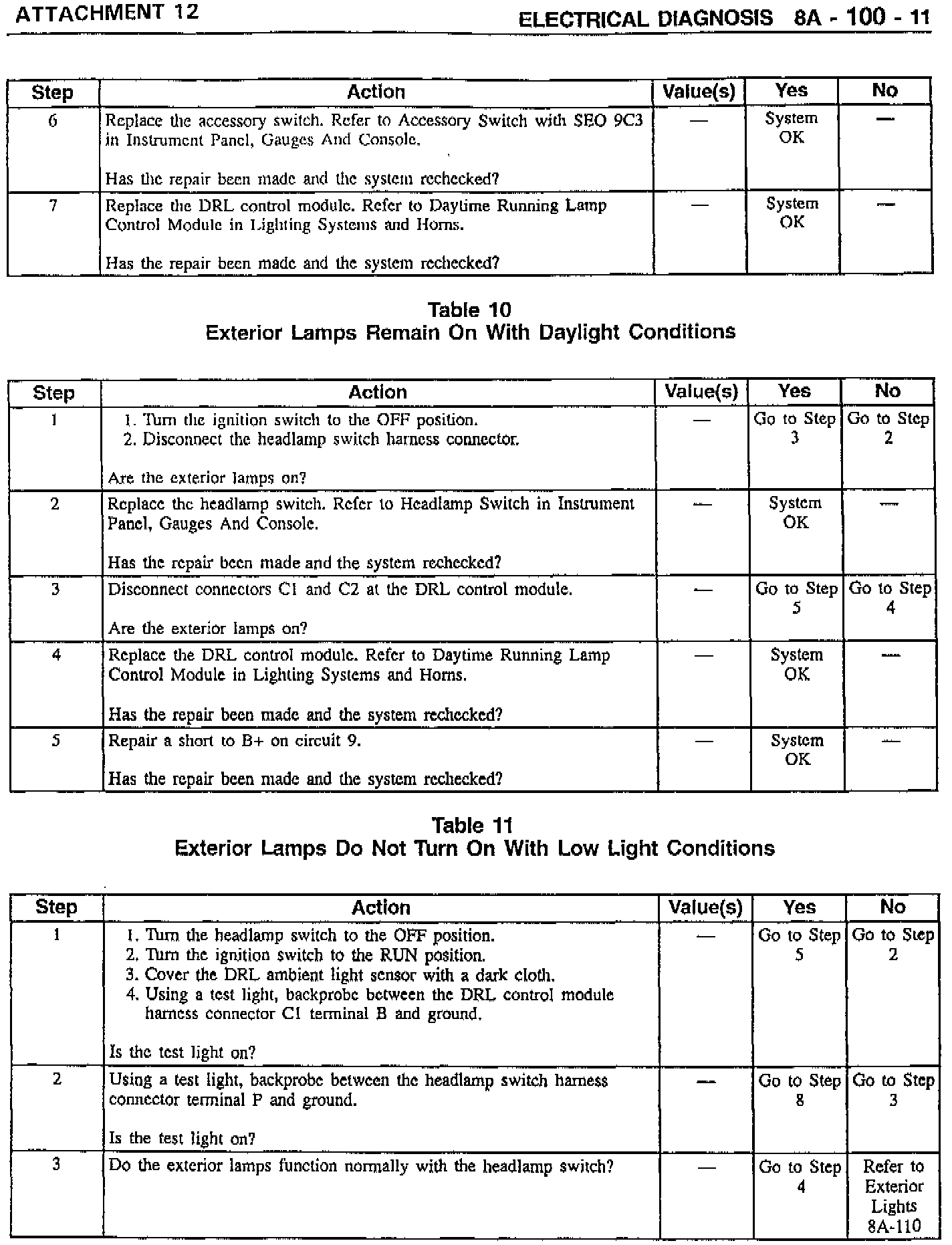

ATTACHMENT 12
ATTACHMENT 13
ATTACHMENT 14

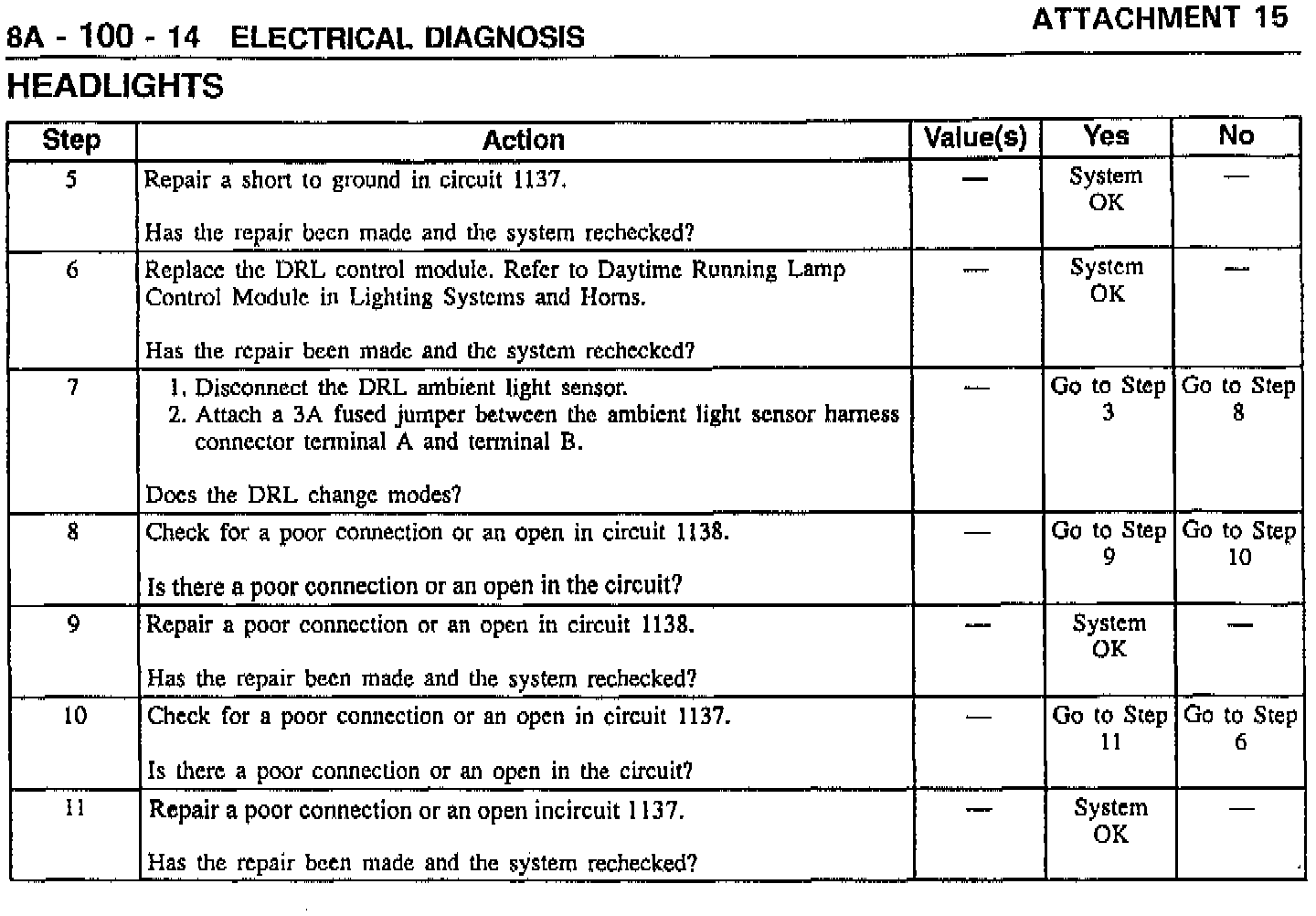

ATTACHMENT 15
