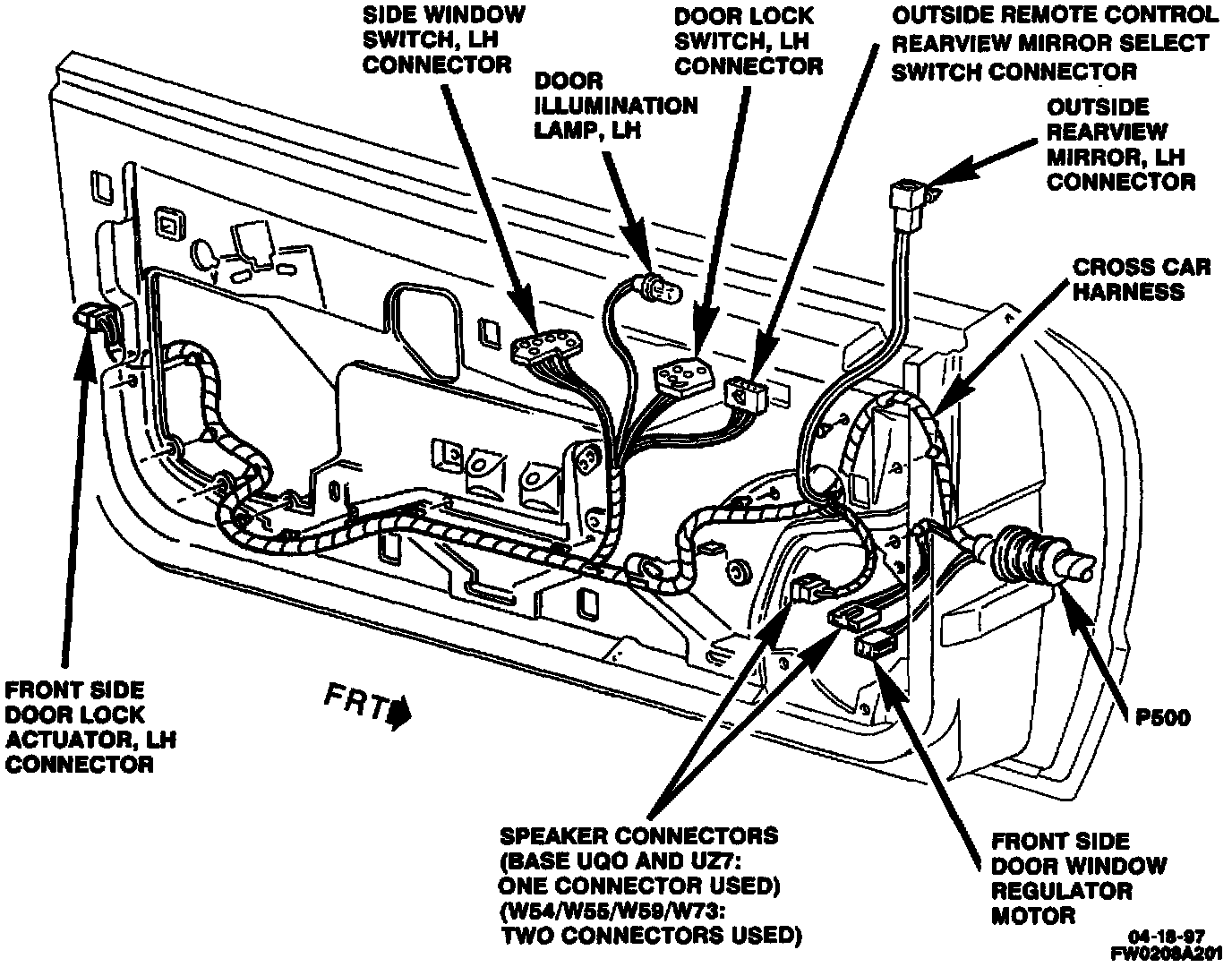

Outside Remote Control Rear-View Mirror Select Switch Connector
Outside Remote Control Rear-View Mirror Select Switch Connector
Left Door (Right Door Similar):
