Chevrolet
>>
1998
>>
Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Brake Switch, TCC Solenoid
Brake Switch, TCC Solenoid

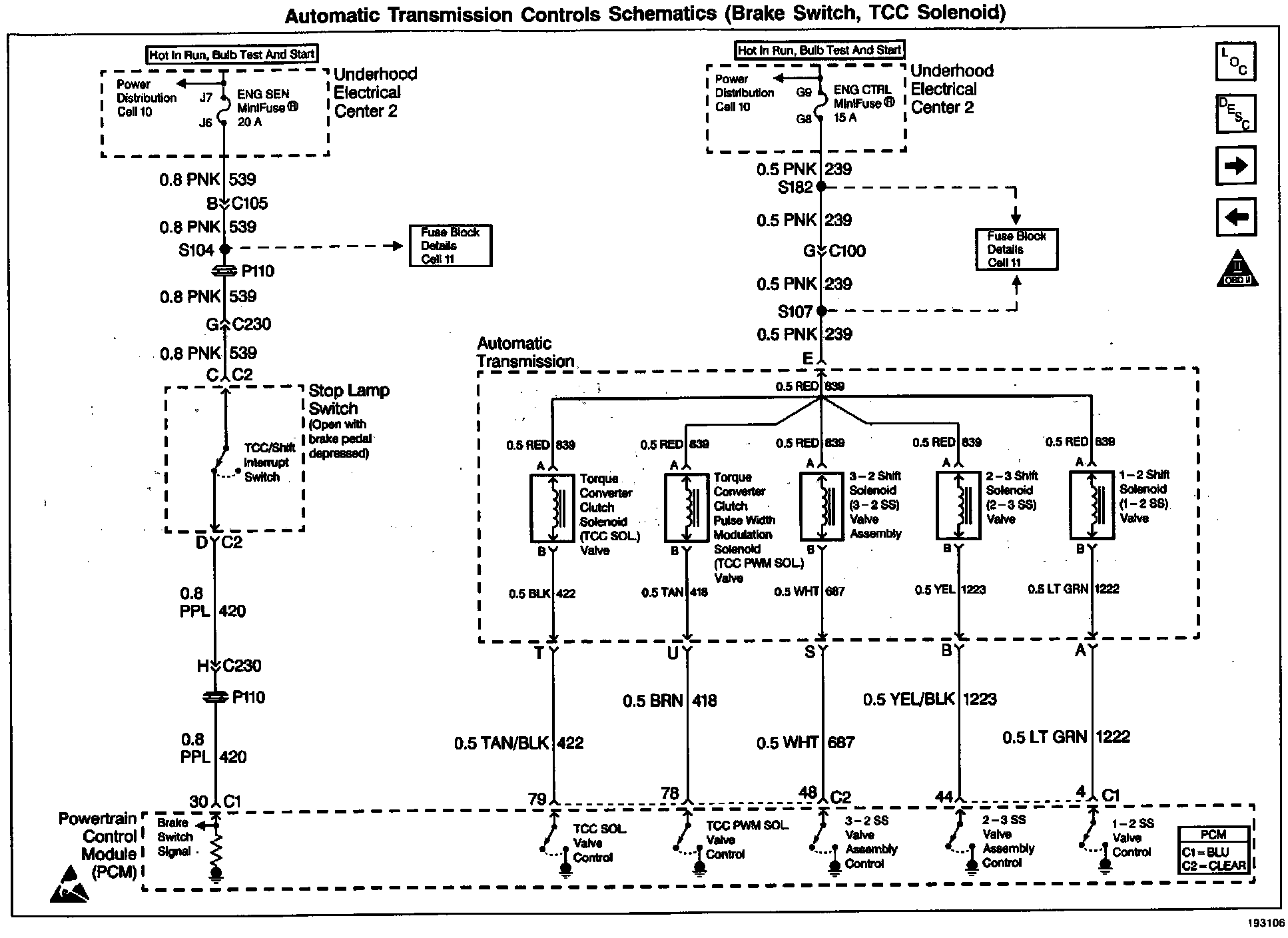

Wiring Diagram:
