Fastener Tightening Specifications - Cylinder Head

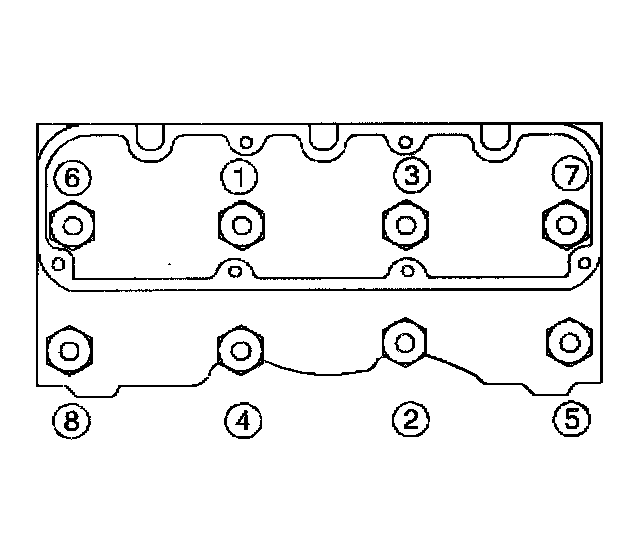

Tighten the cylinder head bolts following the given sequence.
Tighten the cylinder head bolts to 50 Nm (37 lb ft) in sequence.
Using J36660 tighten the cylinder head bolts an additional 120 degrees.
