Headlights/Daytime Running Lights (DRL) Schematics (Domestic)

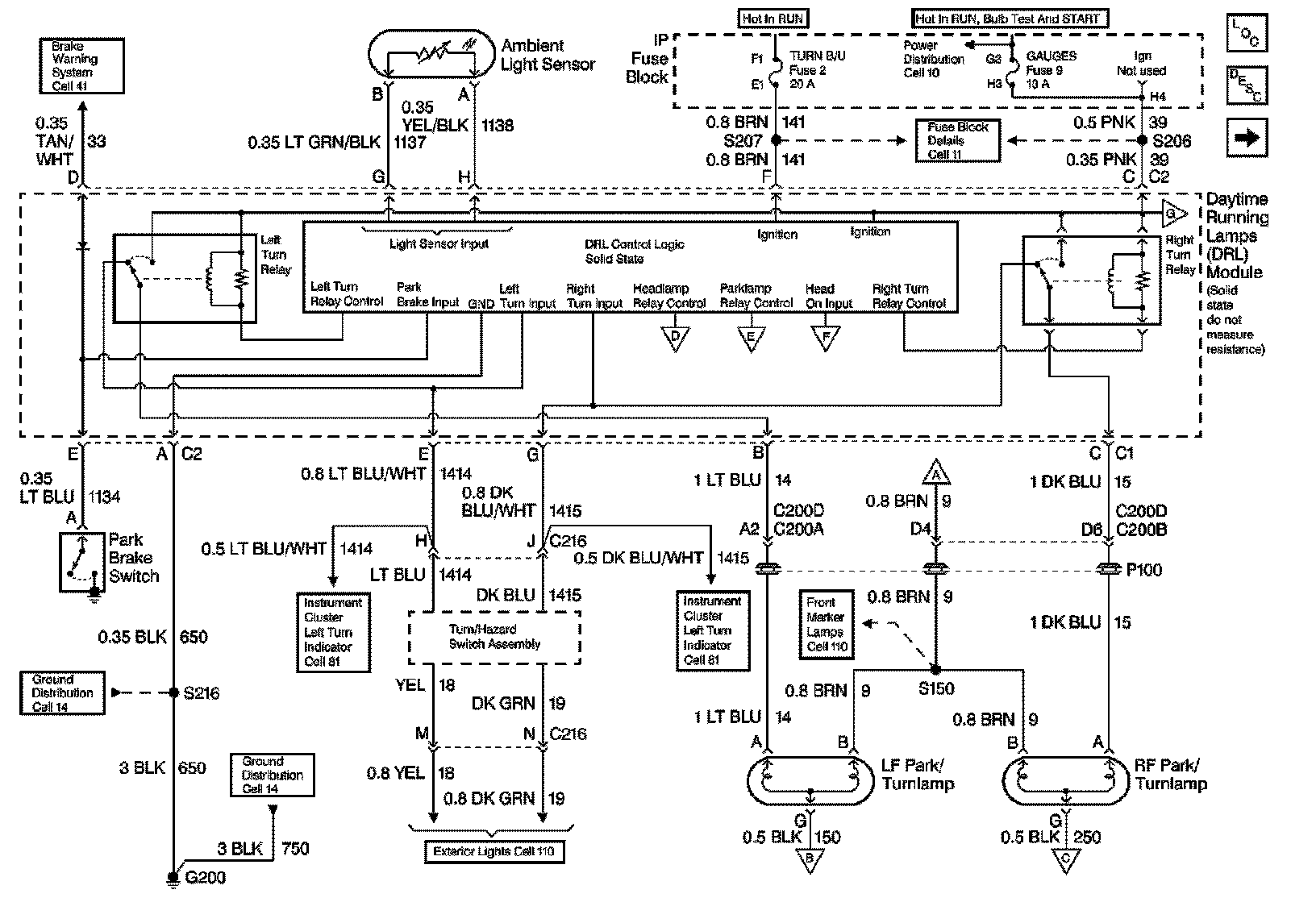

Cell 102: Park/Turnlamps (Chevrolet)






Cell 102: Headlamps (Chevrolet)






Cell 102: Park/Turnlamps (Pontiac)






Cell 102: Headlamps (Pontiac)
