Cavalier L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
System Diagram
>>
LH
LH

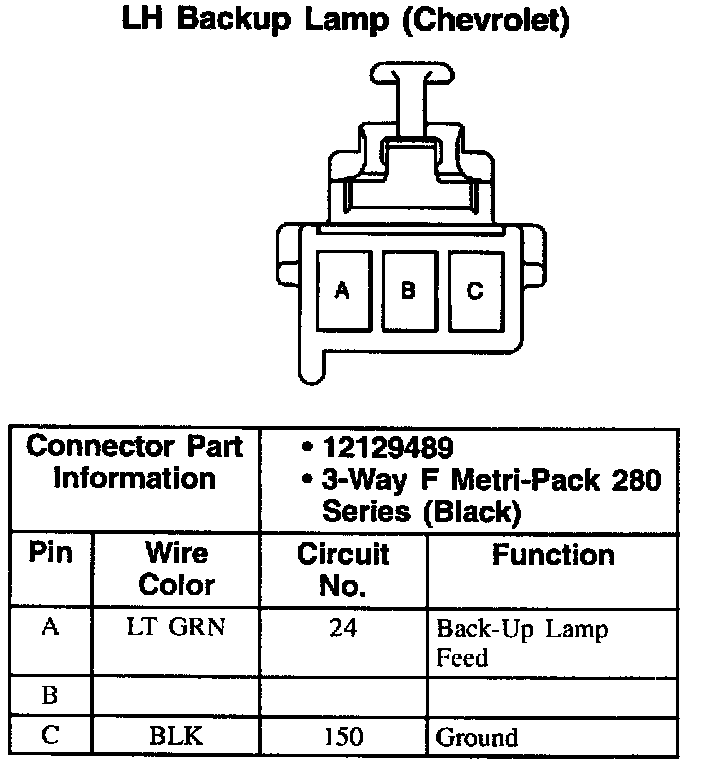

LH Backup Lamp:

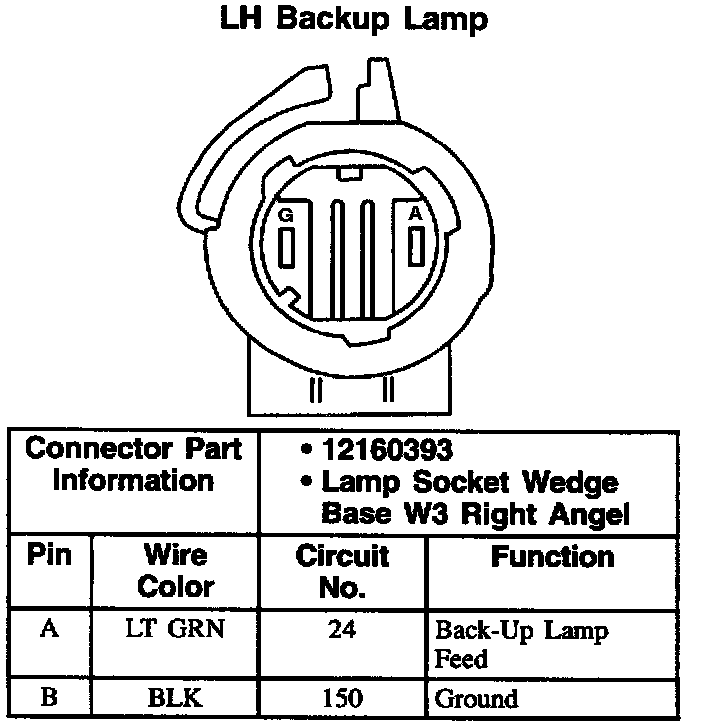

LH Backup Lamp:
