In-Line Automatic Transmission (MN4) - Harness Connector
In-Line Automatic Transmission (MN4) - Harness Connector

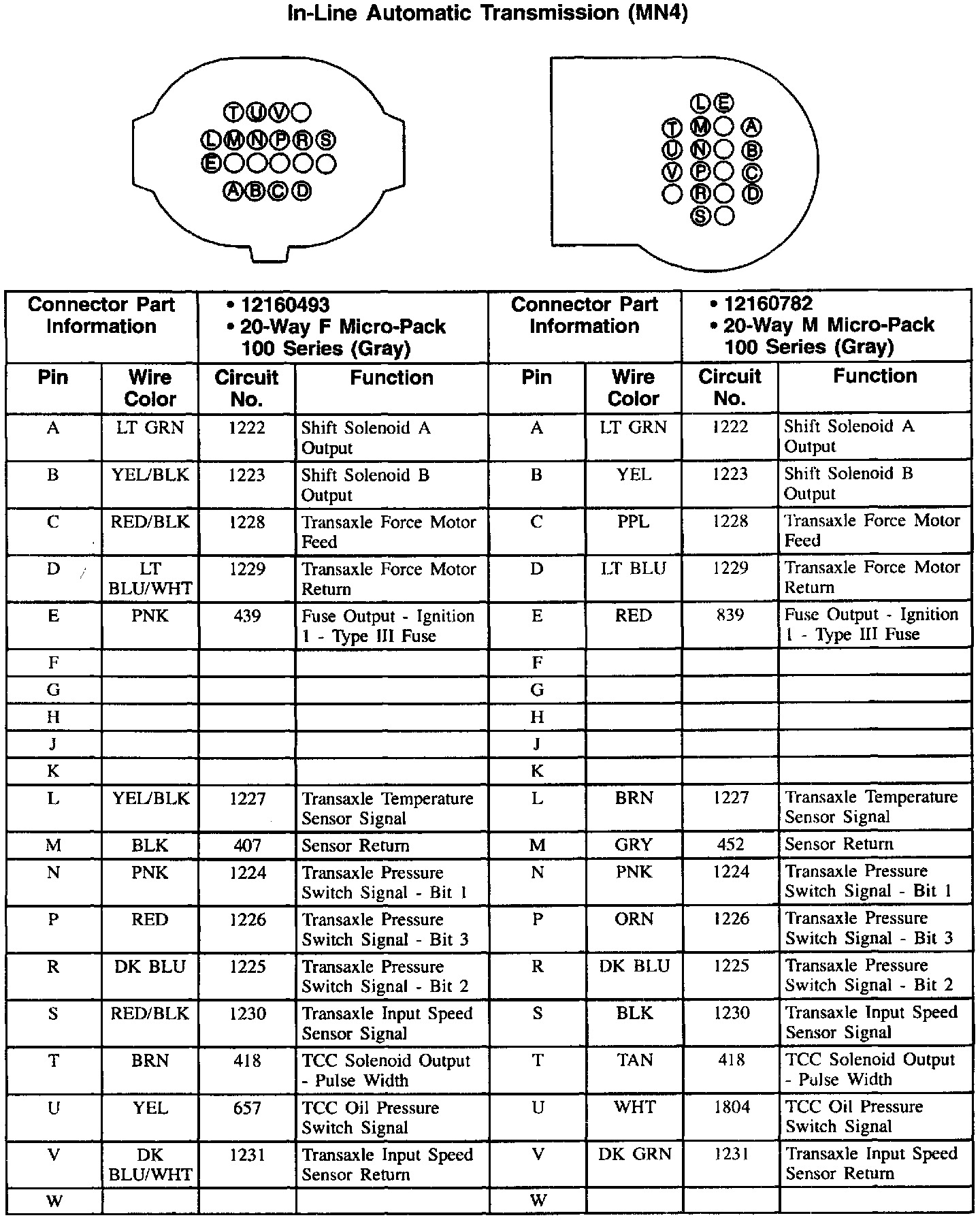

In-Line Automatic Transmission (MN4):
