Fastener Tightening Specifications - Main Bearing Cap

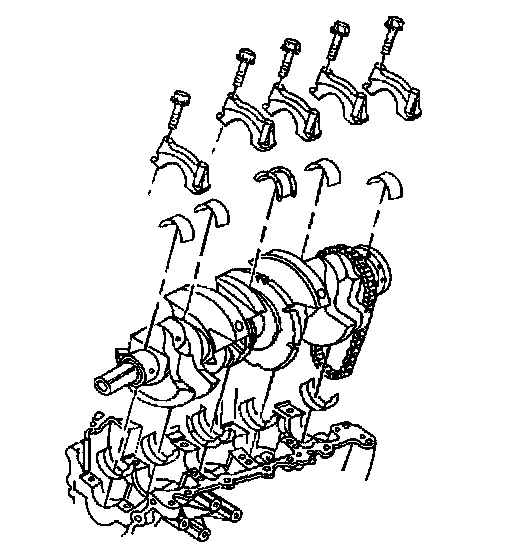

Install the crankshaft caps. Tap gently into place with a suitable tool.





Install the crankshaft cap bolts. Finger tighten the bolts.

NOTICE: Refer to Fastener Notice in Service Precautions.

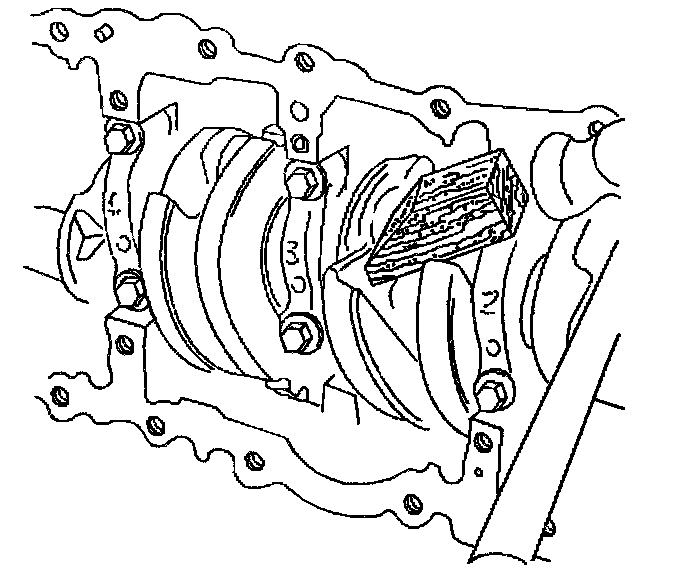

Seat the crankshaft thrust bearing.
^ Tighten the bearing cap bolts to 20 Nm (15 lb ft), and rotate the bolts 90 degrees. Use the J36660.
