Radio/Stereo: Service and Repair

REMOVAL PROCEDURE
1. Disable the SIR system.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2. Disconnect the negative battery cable.
3. Remove the IP cluster trim plate.

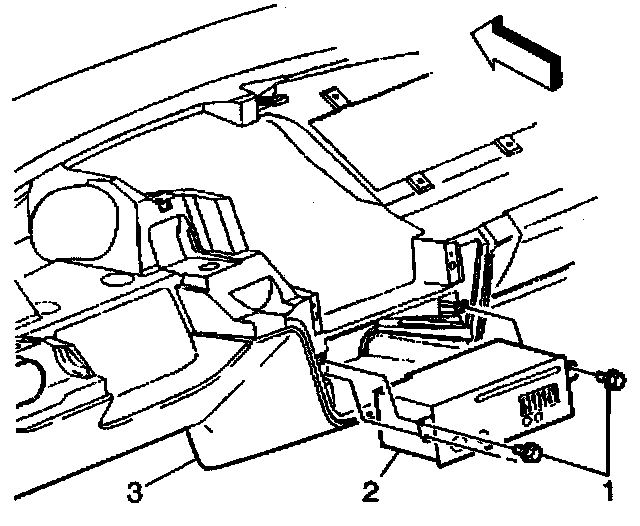

4. Remove the screws (1).
5. Pull the radio (2) out from the instrument panel (3).
6. Disconnect the electrical connections.
7. Disconnect the antenna lead connections.
8. Remove the radio (2) from the vehicle.

INSTALLATION PROCEDURE
1. Connect the electrical connections to the radio (2).
2. Connect the antenna lead connections to the radio.
3. Install the radio (2) to the instrument panel (3).
4. Install the screws (1) to the instrument panel.
5. Install the IP cluster trim plate.
6. Connect the negative battery cable.
7. Enable the SIR system.
