Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag >> Driver Inflator Module

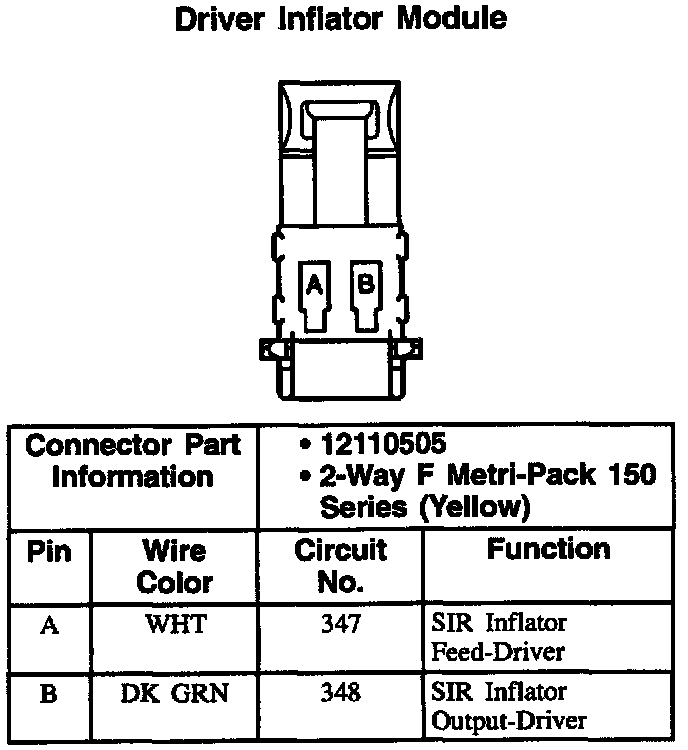

Driver Inflator Module

Driver Inflator Module:
