Home
>>
Chevrolet
>>
1998
>>
Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Center Mounted Brake Lamp
>>
High Mounted Stoplamp Assembly (W/T43)
High Mounted Stoplamp Assembly (W/T43)

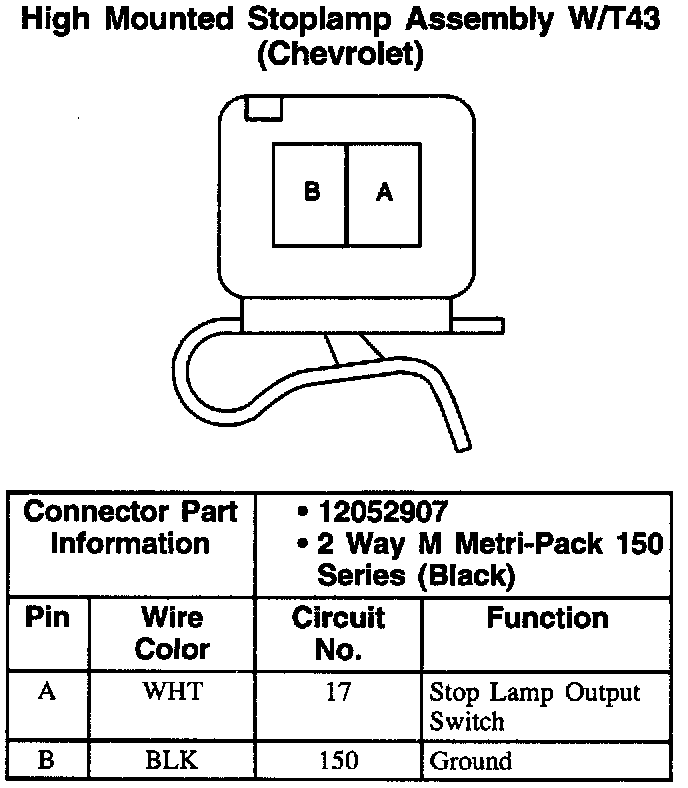

High Mounted Stoplamp Assembly (W/T43):

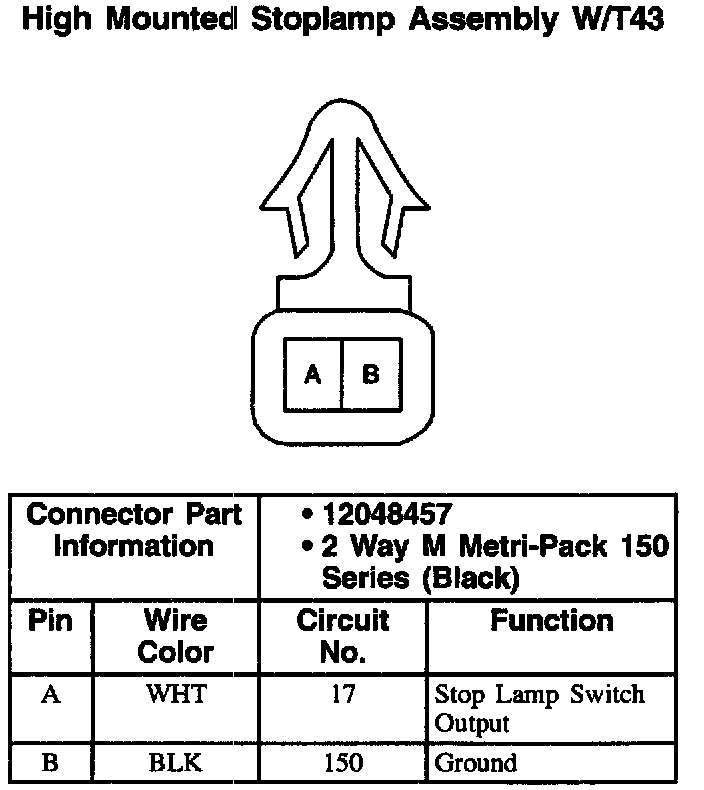

High Mounted Stoplamp Assembly (W/T43):
