Convertible Top Switch
>>
Convertible Top Bypass Switch
Convertible Top Bypass Switch

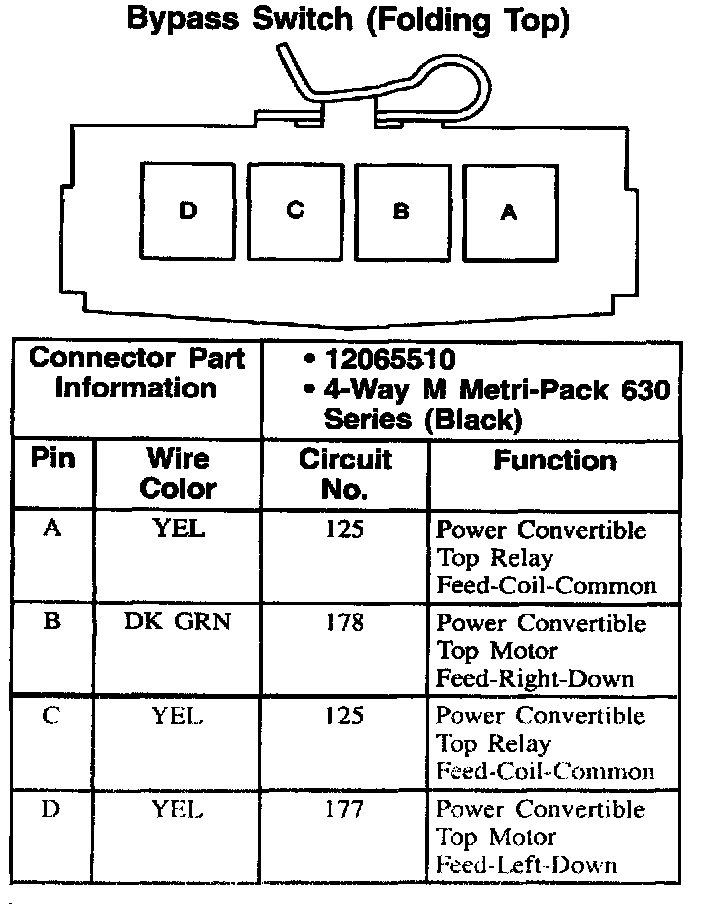

Bypass Switch (Folding Top):
