System Diagram

LH Courtesy Lamp:

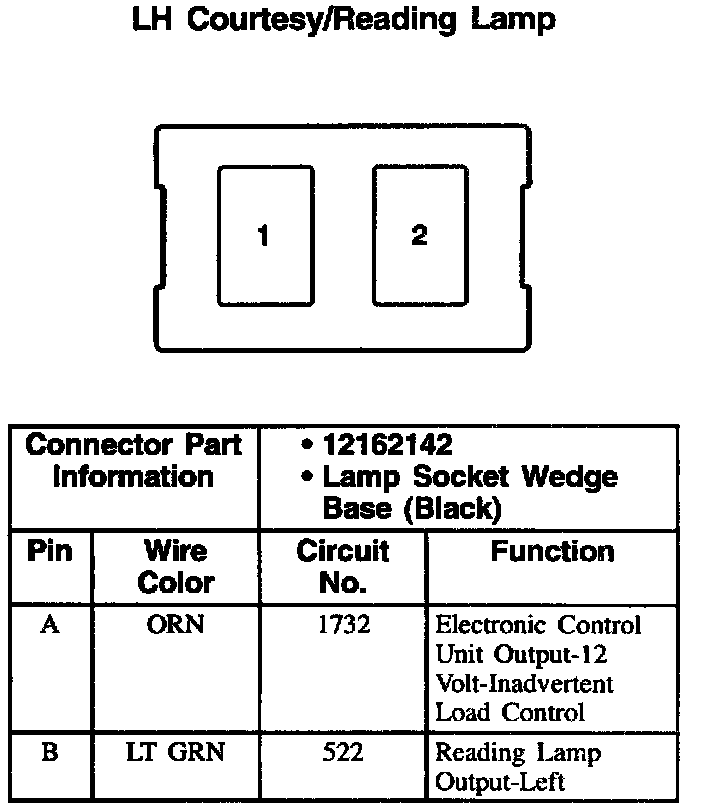

LH Courtesy/Reading Lamp:

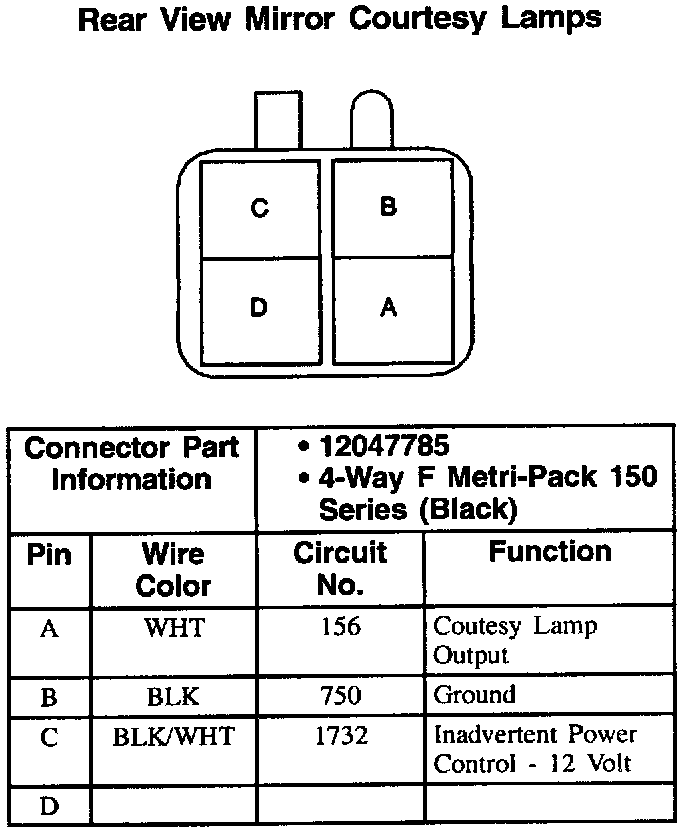

Rear View Mirror Courtesy Lamps:



RH Courtesy Lamp:

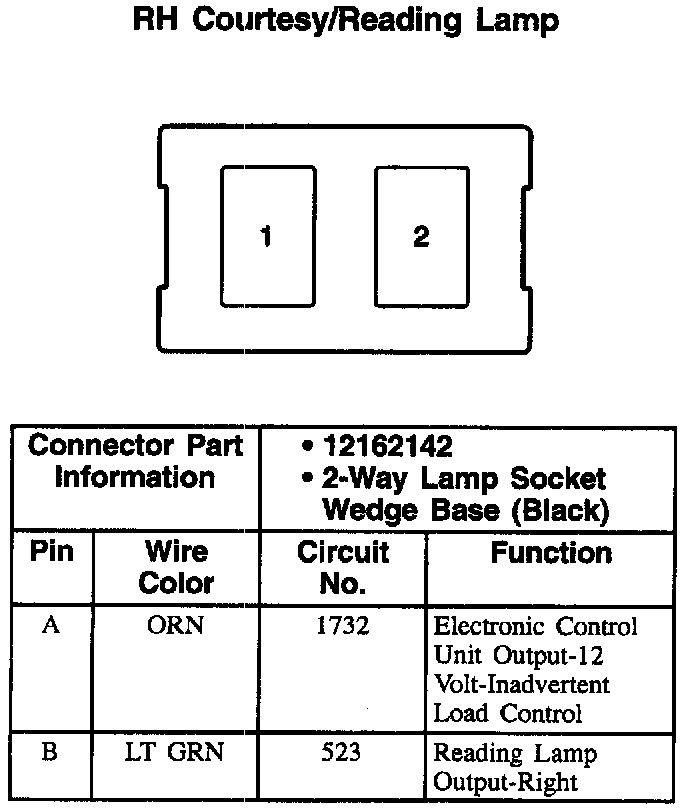

RH Courtesy/Reading Lamp:
