Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> C1

C1

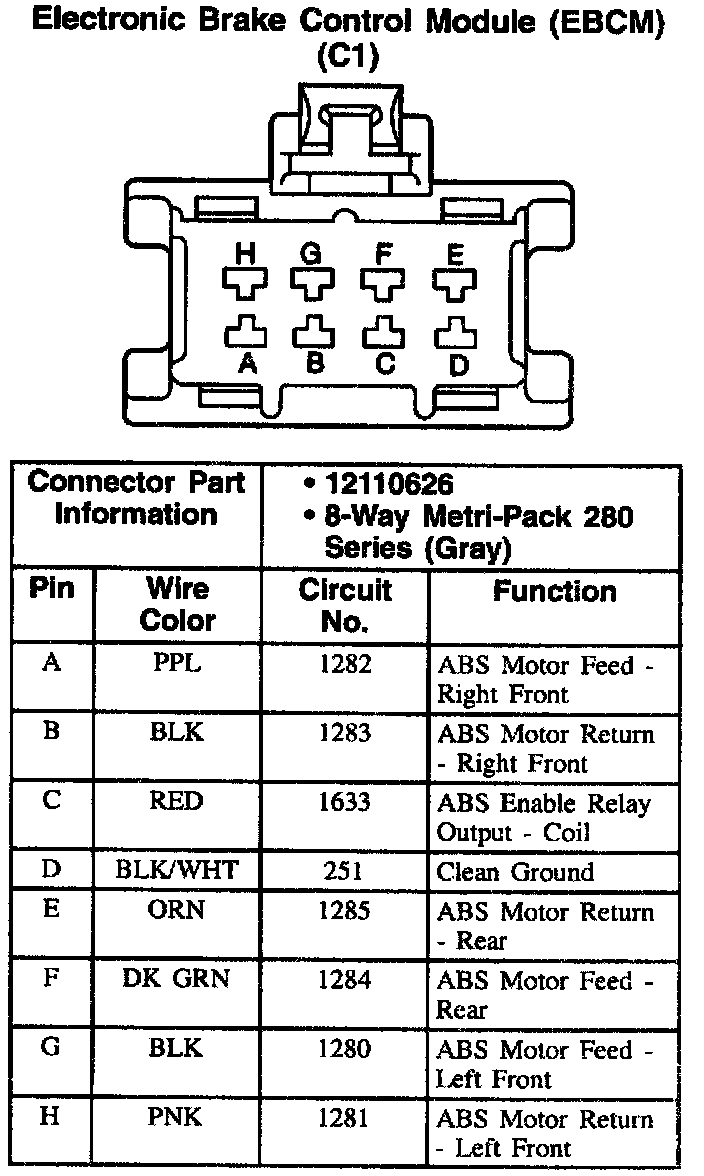

Electronic Brake Control Module (EBCM) (C1):
