Hydraulic Assembly, Traction Control
Hydraulic Assembly, Traction Control

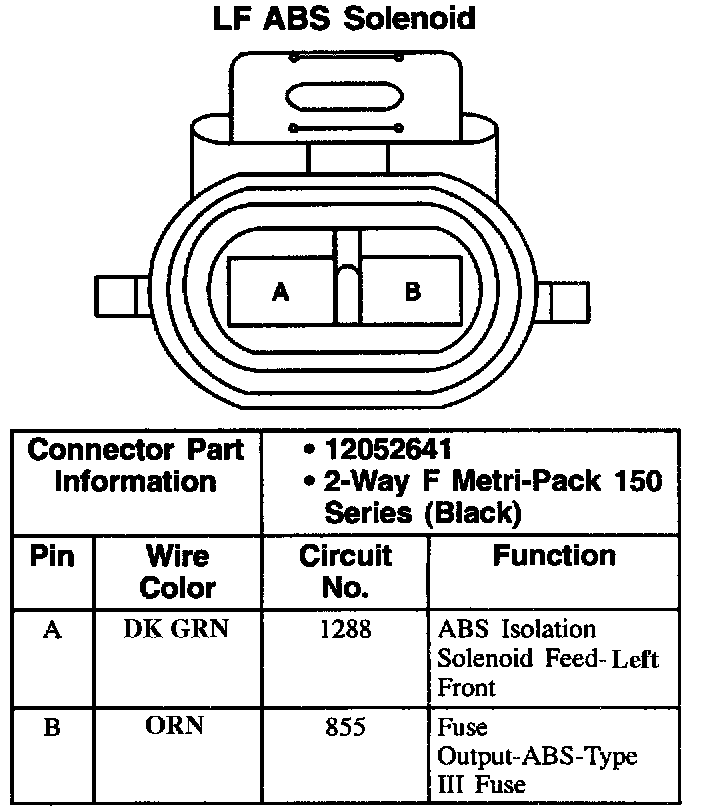

LF ABS Solenoid:

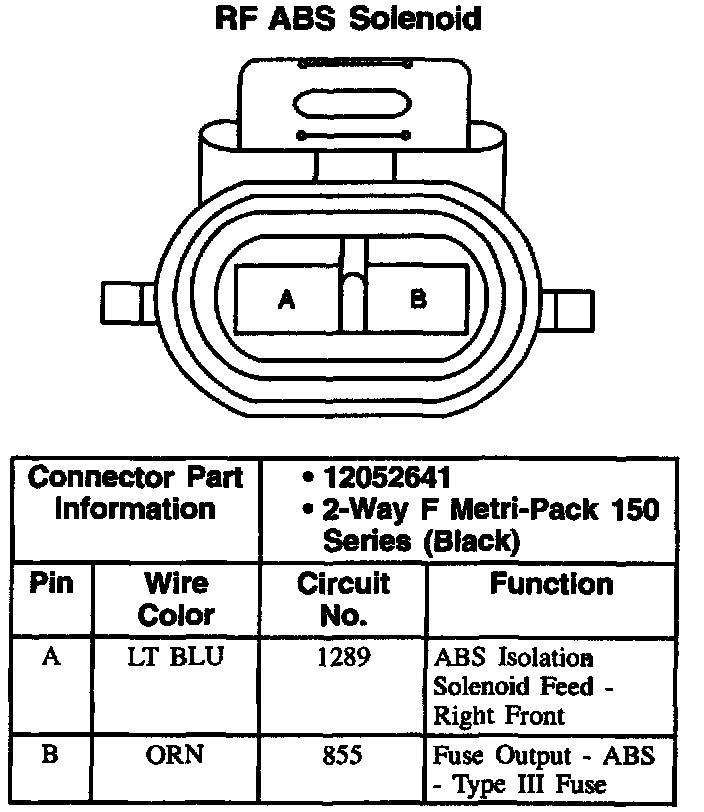

RF ABS Solenoid:
