Door Switch

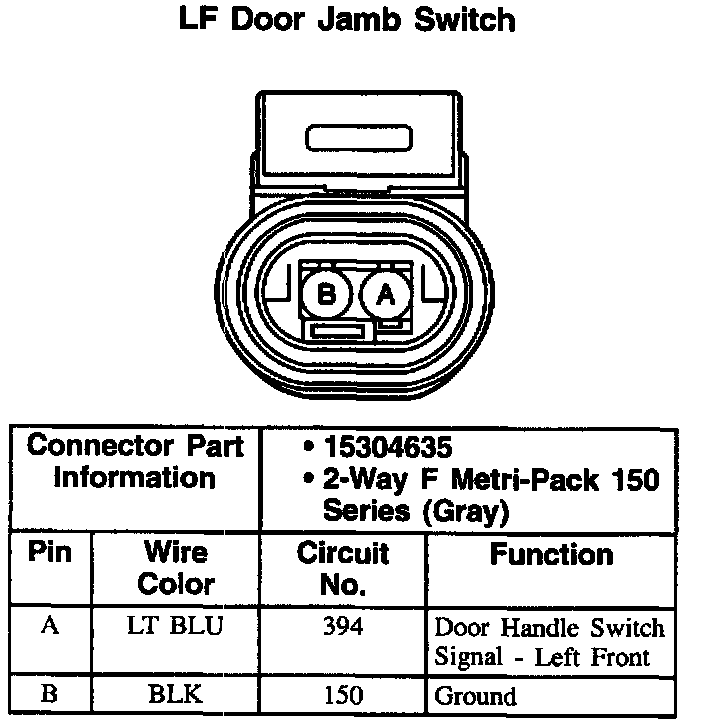

LF Door Jamb Switch:



LR Door Jamb Switch:



RF Door Jamb Switch:



RF Door Jamb Switch:

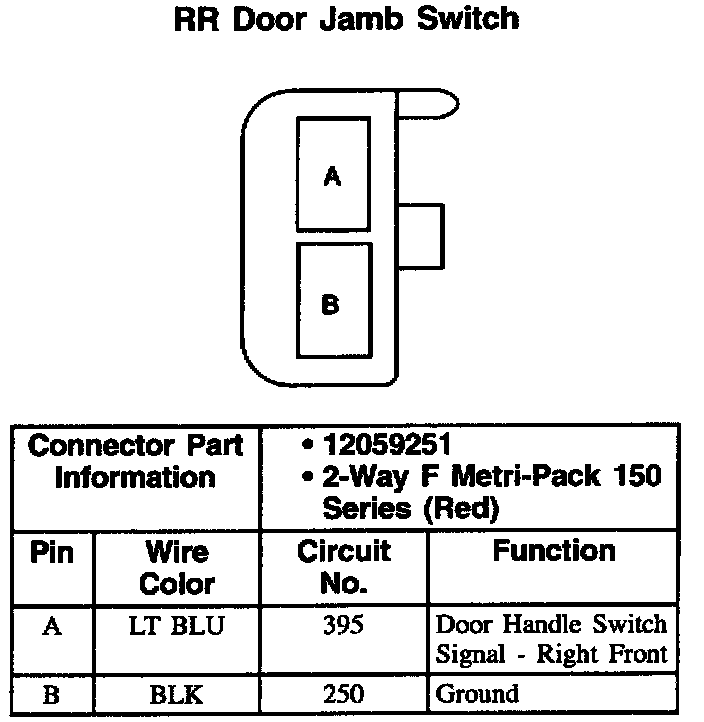

RR Door Jamb Switch:
