Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> RR

RR

RR Window Switch:

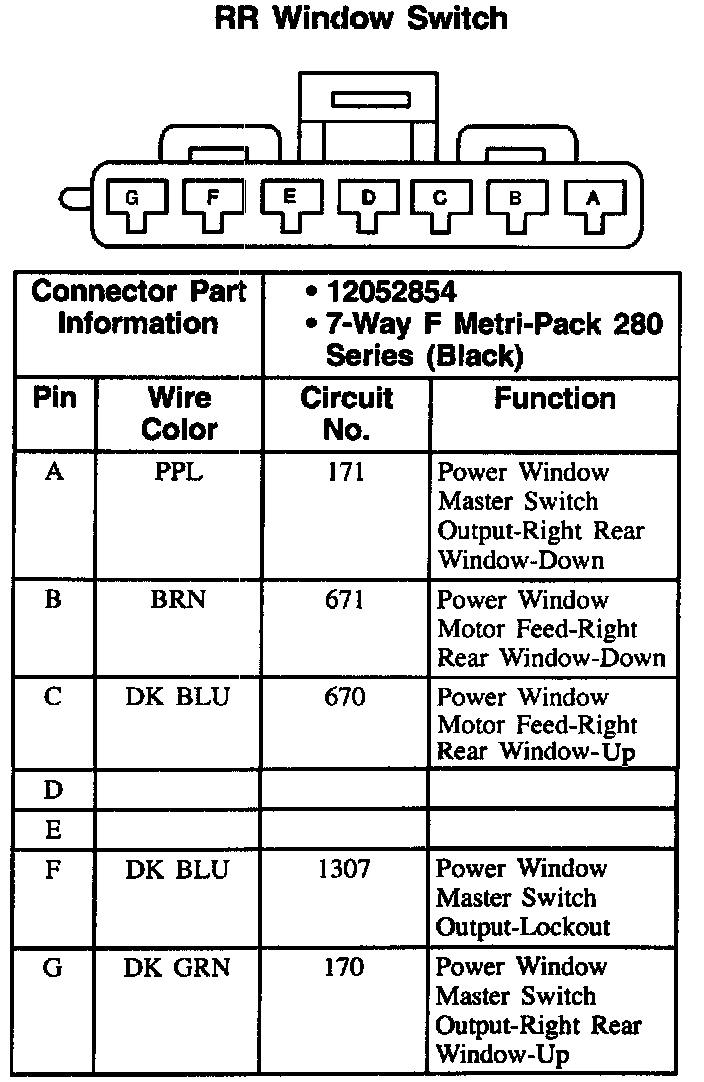

RR Window Switch (Part 1 Of 2):

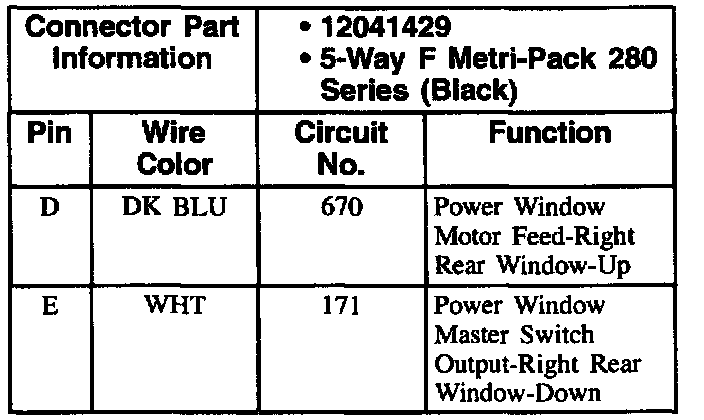

RR Window Switch (Part 2 Of 2):
