Cavalier L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
Speaker

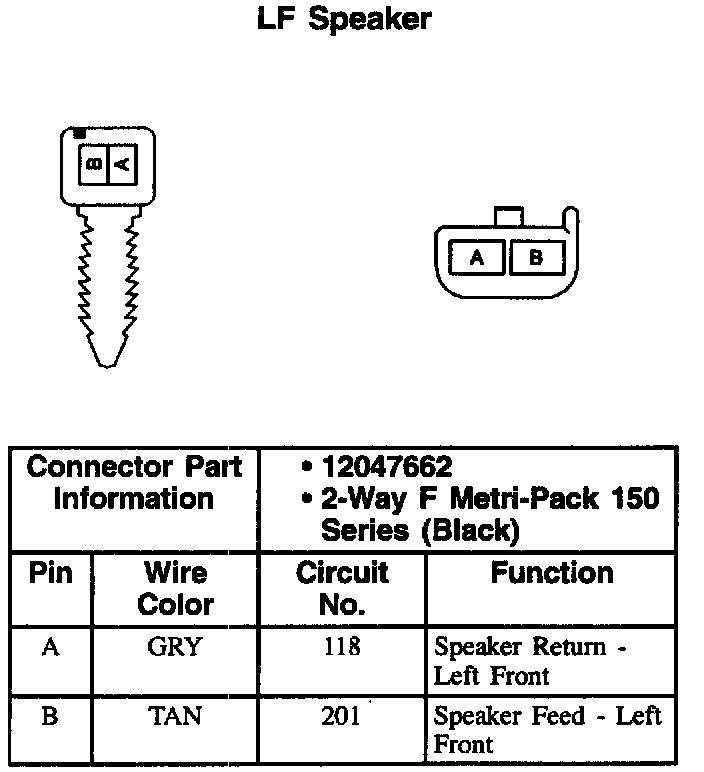

LF Speaker:

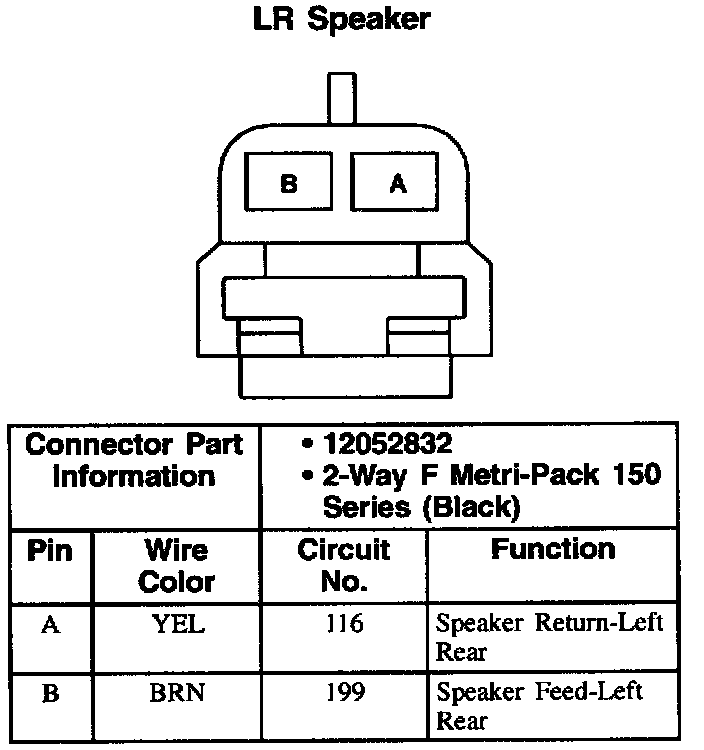

LR Speaker:

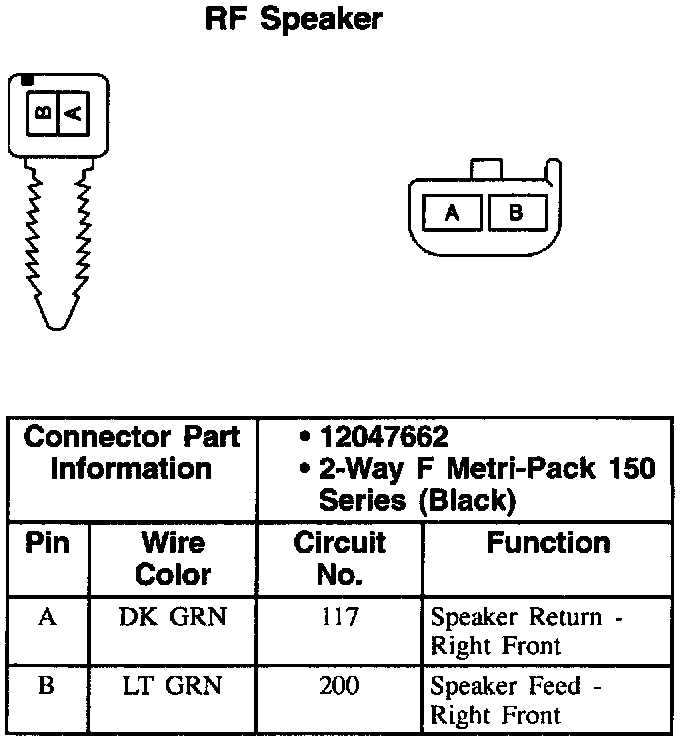

RF Speaker:

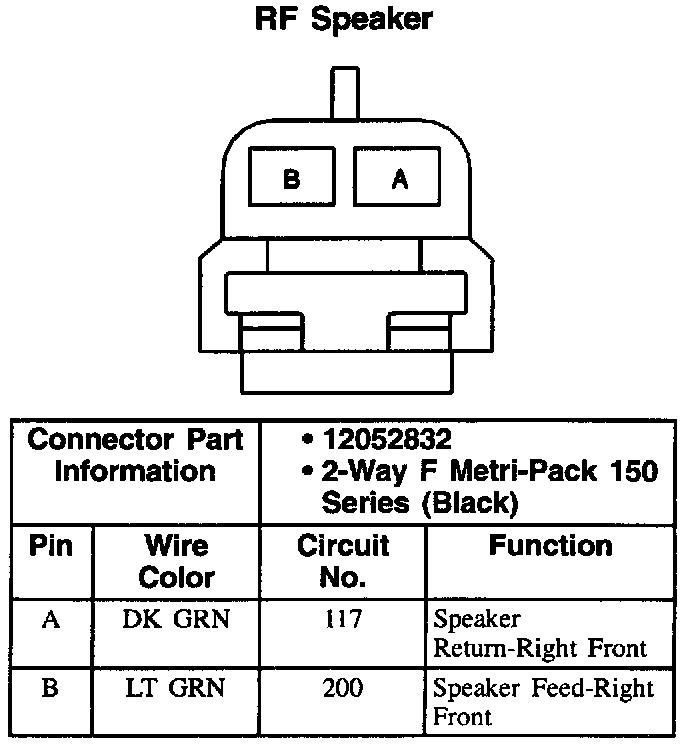

RF Speaker:
RR Speaker:
