Turn Signal Lamp
Turn Signal Lamp
LH Tail/Stop/Turn Lamp:

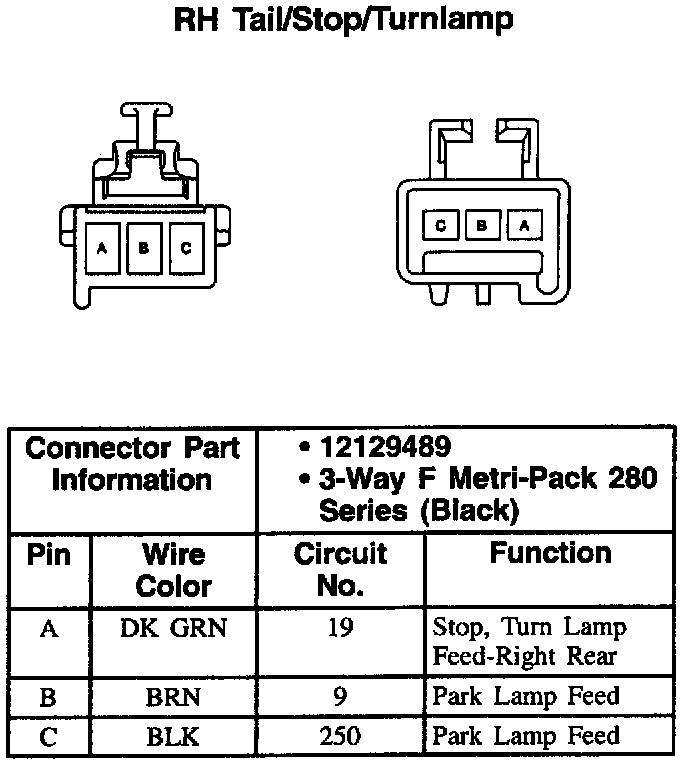

RH Tail/Stop/Turn Lamp:

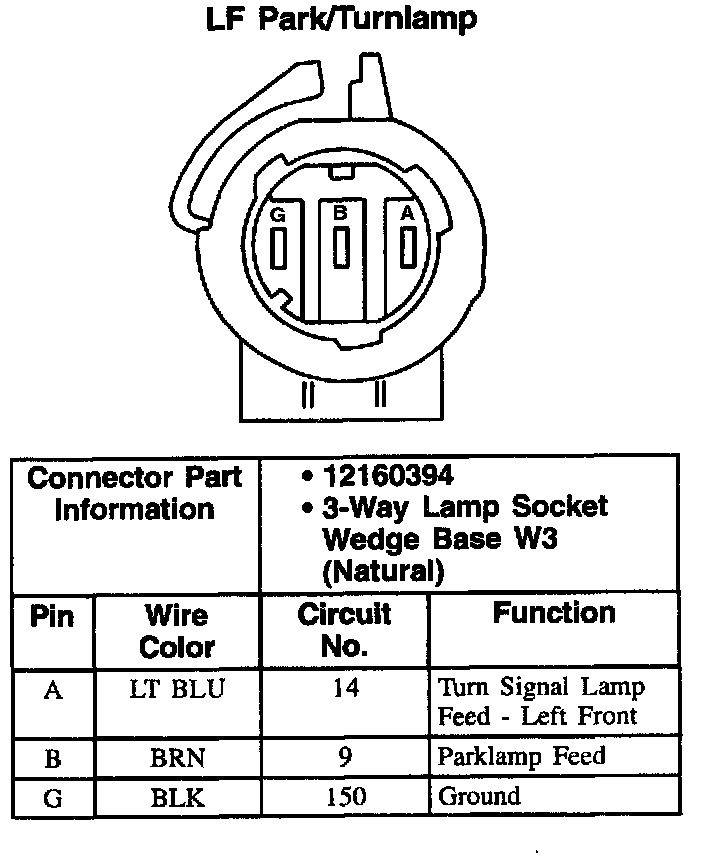

LF Park/Turn Lamp:

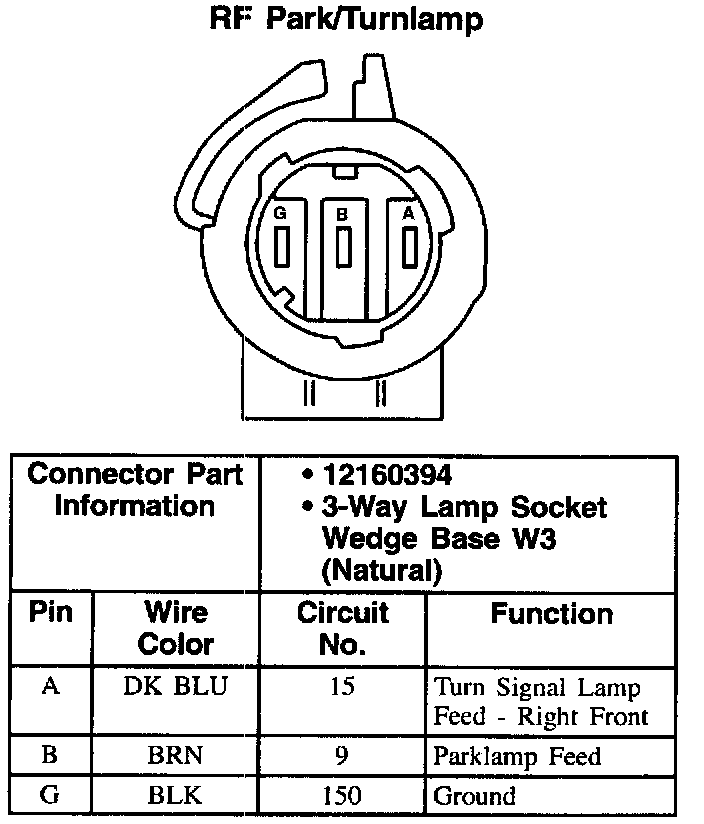

RF Park/Turn Lamp:
LF Park/Turn Lamp:
